5055 V3.0
- PRODUCT DETAIL

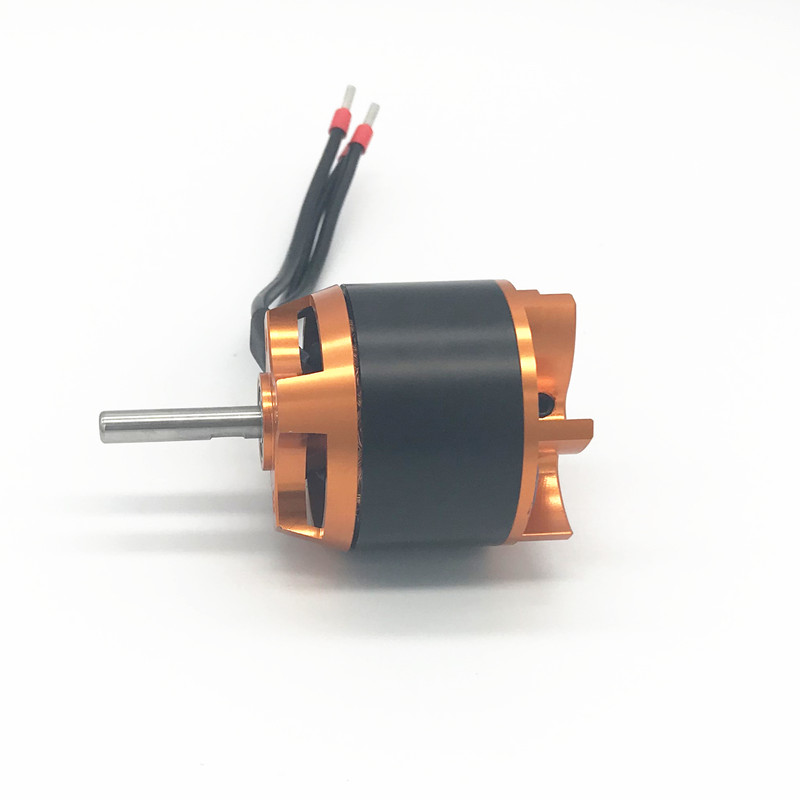

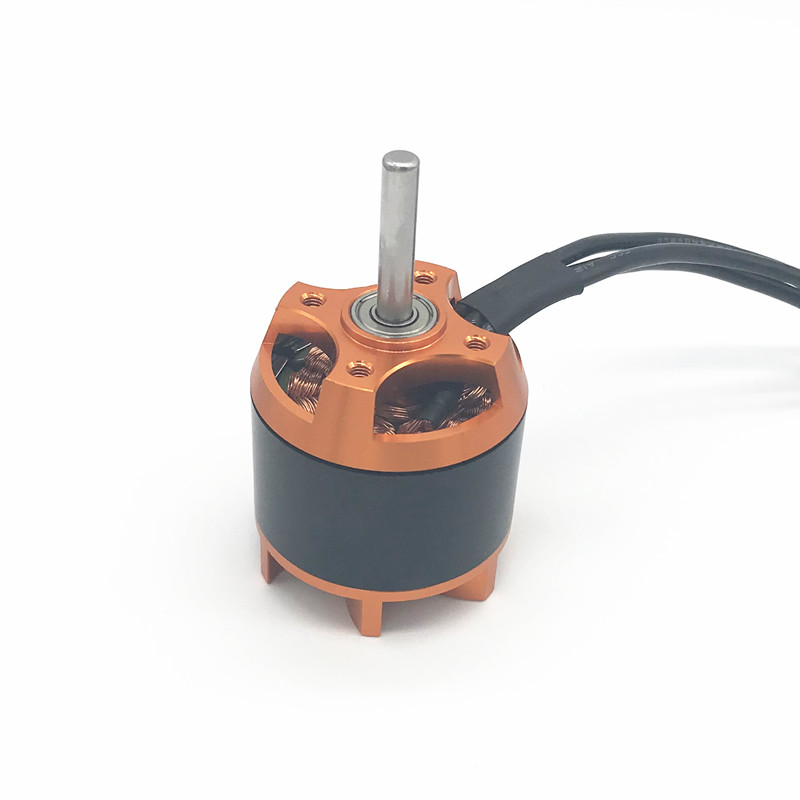

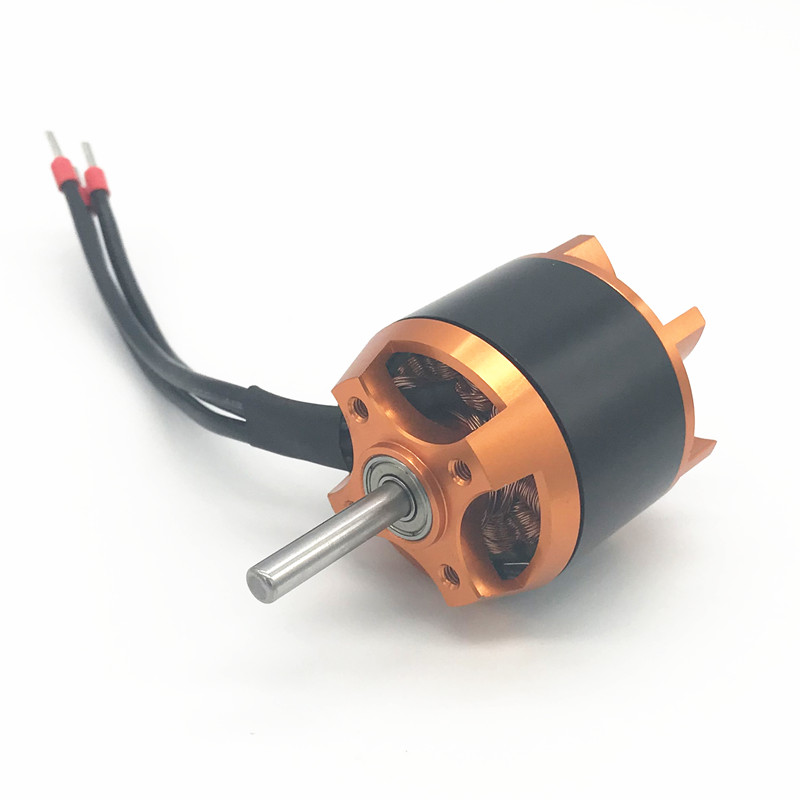

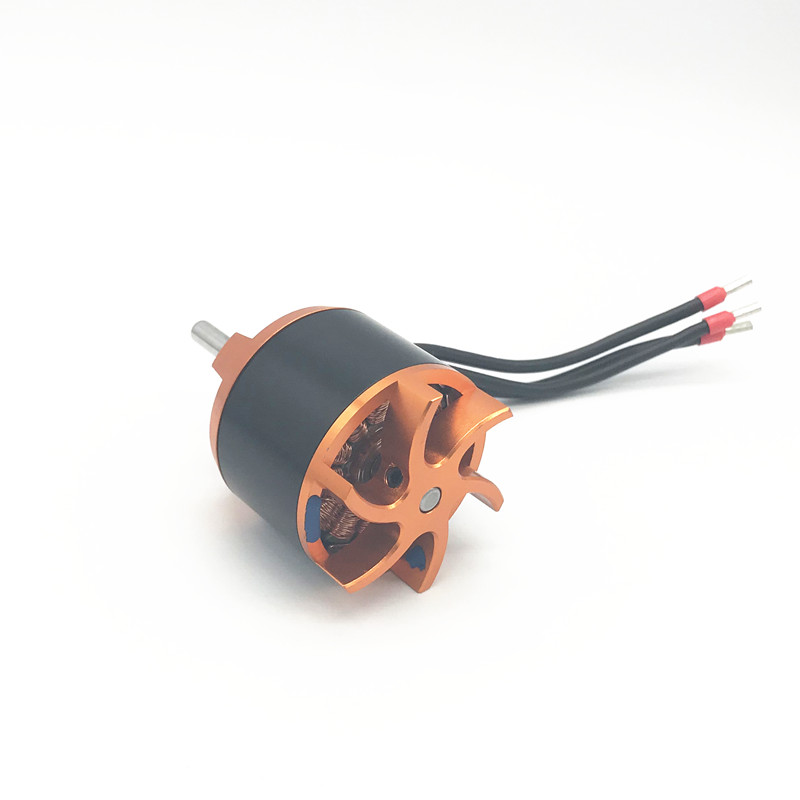

12v 7000rpm 500w dc motor for harvest machine
| Motor Diameter: | 49.2mm |
| Motor Length: | 55mm |
| Shaft Diameter: | 6.0mm |
| Shaft Length: | 20mm |
| Weight: | 285g |
| Mounting Hole Size: | M4.0, pitch 30mm |
| Mounting Hole Depth: | 6mm Max. |
| NO | Working Voltage | KV | NO LOAD RPM | Rated RPM | Rated Power | Rated Torque | Max Torque | Max Power |
| 1 | 12V | 83 | 1000 | 850 | 50W | 0.58Nm | 0.95Nm | 110W |
| 2 | 24V | 2000 | 1700 | 100W | 220W | |||
| 3 | 36V | 3000 | 2550 | 150W | 330W | |||
| 4 | 48V | 4000 | 3400 | 200W | 440W | |||
| 5 | 12V | 532 | 6000 | 5100 | 300W | 700W | ||
| 6 | 12.6V | 240 | 3000 | 2550 | 170W | 300W | ||
| 7 | 12.6V | 620 | 8000 | 6800 | 400W | 750W |
Other KV also can be custom made
