SPT5535LV-320
- PRODUCT DETAIL

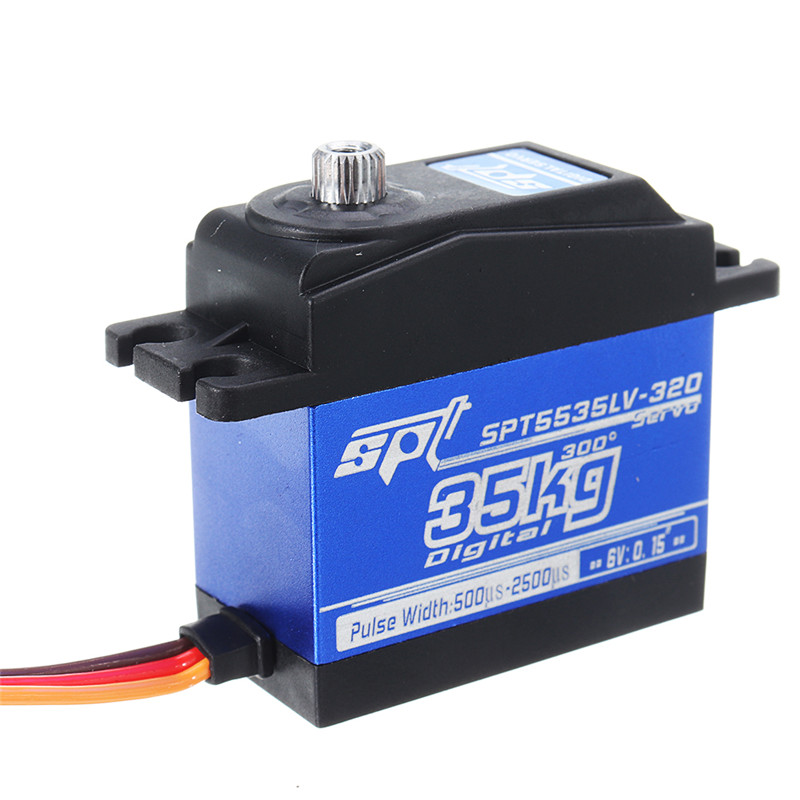

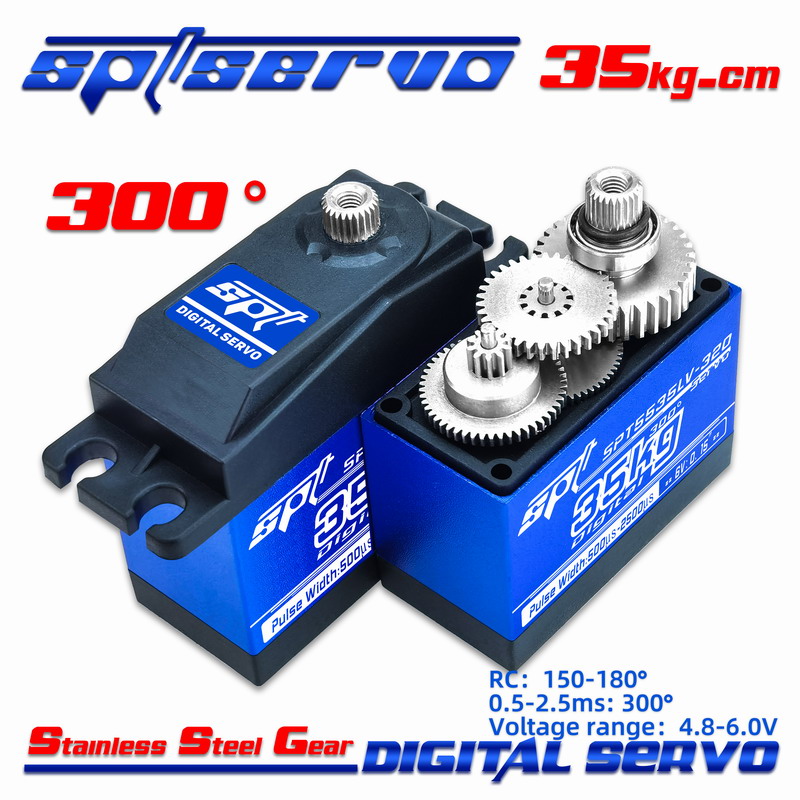

SPT5535LV-320 35kg Controllable 300°Large torque Large angle Metal gear Digital SPT servo
Brand:
SPT Servo
Potentiometer:
Mechanics
Motor:
Core
Voltage Range:
4.8V/6.0V
Neutral Point:
1500μs
Signal Frequency:
330Hz
PWM Voltage:
3.3V-5.0V
PWM Voltage:
3.3V-5.0V
Feedback Angle:
Yes
Operating Temperature:
-10℃-50℃
Cycle:
20ms
Dead band:
4μs
Default Direction:
CW
Yes / no Lock:
Lock
Remote control Angle:
150°
500-2500μs Angle:
300° / PWM
Quiescent Current:
100mAh
Rated Current:
1.4A
Blocking Current:
3.5A
Weight / Dimensions:
70g / 40.5*20*40.5mm
Output Gear:
Futaba 25T
Gear Material:
All Metal Gear
Shell Material:
Half Aluminum Shell
Bearing:
2BB
Connector Wire Length:
260MM
line Definition:
Brown-/Red+/Orange s
Operating Speed:
4.8V/0.16 ''/60°
6.0V/0.14 ''/60°
/
Stall Torque:
4.8V/29 kg.cm
6.0V/35 kg.cm
/
