SPT70HV-320
- PRODUCT DETAIL
Large torque 70KG digital actuator robot manipulator large angle SPT70HV-320 servo
Brand:
SPT Servo
Potentiometer:
Mechanics
Motor:
Core
Voltage Range:
4.8V/6.0V/8.4V
Neutral Point:
1500μs
Signal Frequency:
330Hz
PWM Voltage:
3.3V-5.0V
PWM Voltage:
3.3V-5.0V
Feedback Angle:
No
Operating Temperature:
-10℃-50℃
Cycle:
20ms
Dead band:
4μs
Default Direction:
CCW
Yes / no Lock:
Lock
Remote control Angle:
160°
500-2500μs Angle:
320° / PWM
Quiescent Current:
60mAh
Rated Current:
2A
Blocking Current:
4.5A
Weight / Dimensions:
200g / 65.7X30X57mm
Output Gear:
Savox0236 15T
Gear Material:
All Metal Gear
Shell Material:
Half Aluminum Shell
Bearing:
2BB
Connector Wire Length:
260MM
line Definition:
Brown-/Red+/Orange s
Operating Speed:
/
6.0V/ 0.20''/60°
7.4V/ 0.16''/60°
Stall Torque:
/
6.0V/56 kg.cm
7.4V/70 kg.cm

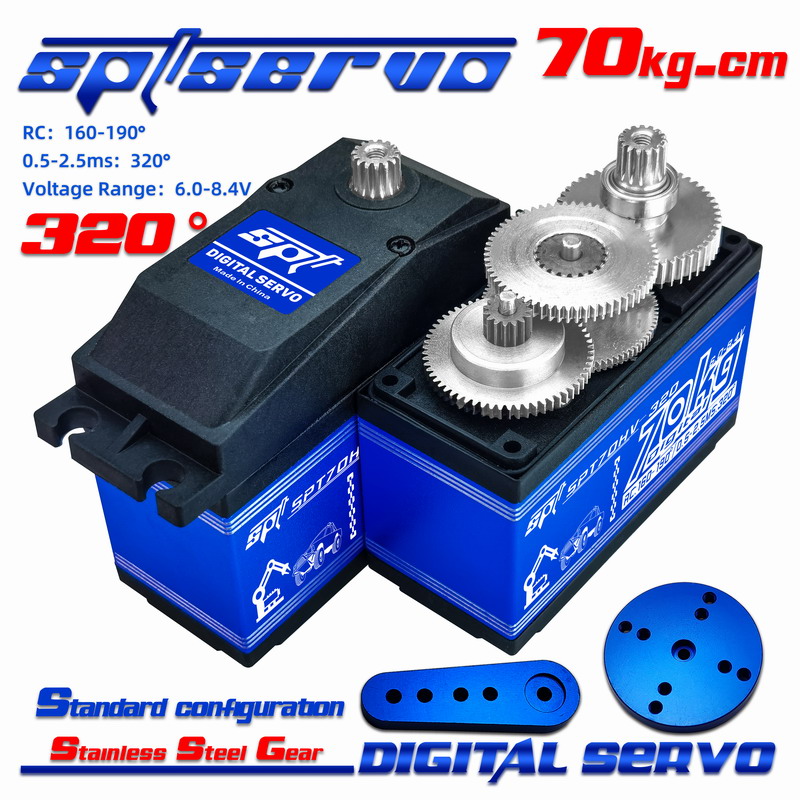

Standard Configuration : Metal Arm, Stainless Steel Gear
Angle range: the default of the remote control is 90 degrees, and the maximum is 120 degrees(Due to the different brand remote controller, the maximum angle may have a little difference); Support the control board 0.5-2.5ms, the maximum angle is 320 degrees.
The circuit functions: this servo has soft start and load blocking protection (15s continuous load blocking, current of 2.5A or above) With lock (if the remote control is ignored, the control board control needs to send a command, even if the disconnection signal is always executed, and the servo has locking force; without lock, the same command needs to be sent continuously, so that the servo can be effectively fixed in one position, and the disconnection signal is that the servo has no locking force)
Application: 1:5 remote control vehicle steering,Robot, Mechanical arm, etc
