SPT5430HV-180W
- PRODUCT DETAIL
SPT5430HV-180W 30kg High Voltage Waterproof SPT servo
Support 2S high speed and High Voltage Servo
RC Maximum angle:120°
PWM 0.5ms-2.5ms:180°
| Brand: | SPT Servo | Potentiometer: | Mechanics |
| Motor: | Core | Voltage Range: | 4.8V/6.0V/8.4V |
| Neutral Point: | 1500μs | Signal Frequency: | 330Hz |
| PWM Voltage: | 3.3V-5.0V | PWM Voltage: | 3.3V-5.0V |
| Feedback Angle: | No | Operating Temperature: | -10℃-50℃ |
| Cycle: | 20ms | Dead band: | 4μs |
| Default Direction: | CCW | Yes / no Lock: | Lock |
| Remote control Angle: | 90° | 500-2500μs Angle: | 180° / PWM |
| Quiescent Current: | 10mAh | Rated Current: | 1.2A |
| Blocking Current: | 2.5A | Weight / Dimensions: | 62g / 40.5*20*40.5mm |

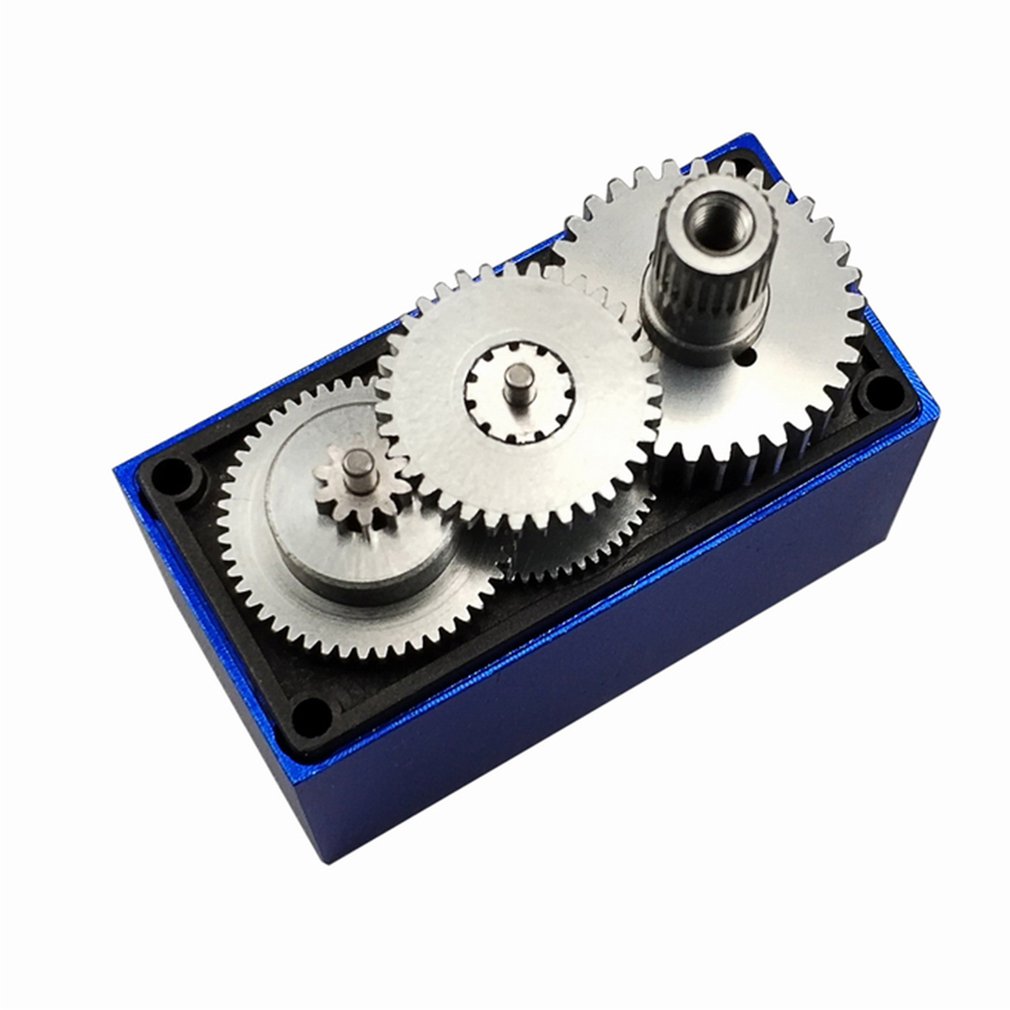

| Output Gear: | Futaba 25T | Gear Material: | All Metal Gear |
| Shell Material: | Half Aluminum Shell | Bearing: | 2BB |
| Connector Wire Length: | 260MM | line Definition: | Brown-/Red+/Orange s |
| Operating Speed: | / | 6.0V/0.17 ''/60° | 8.4V/0.15 ''/60° |
| Stall Torque: | / | 6.0V/24.3 kg.cm | 7.4V/30 kg.cm |
