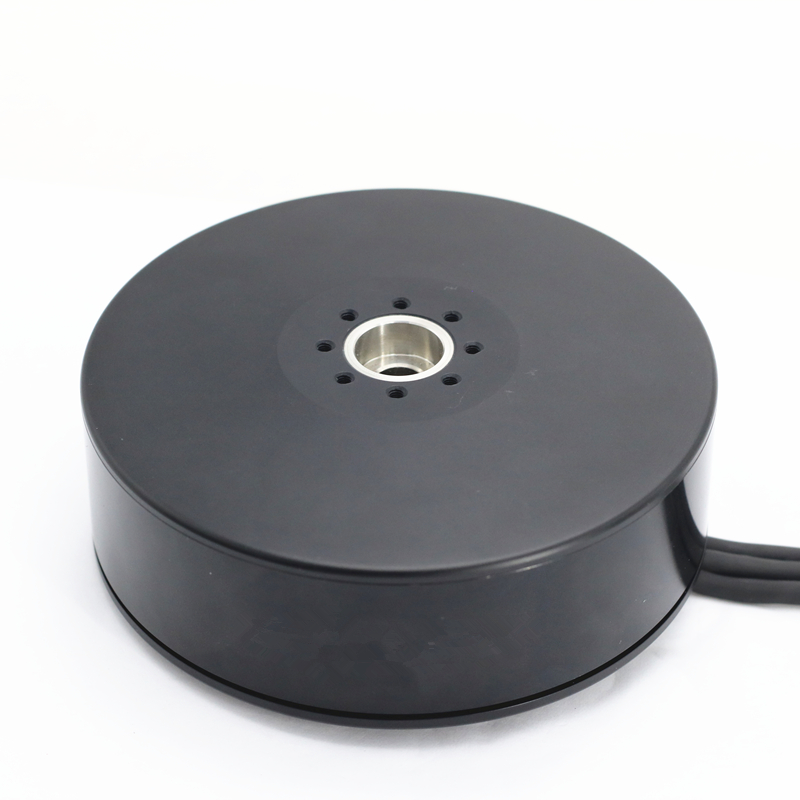

Power-X, RTD89, RTD108

With Multi-rotors widely used in many fields, there are more requirements for high quality power system focusing on unparalleled reliability, high power efficiency, further more motor’s adaptability in extreme climate condition, and water-proof and dirt-resistance function. This is exactly why the Power-X emerge as times require for the use in industrial field.

Stator construction uses the highest-grade silicon steel of 0.2mm lamination which resists ultra-high temperature(240℃/464℉), pure copper-core winding brings about optimum efficiency and power transfer.

ALL motors use true-grade N45SH Neodymia high-temperature sintered magnets with industry-leading performance. An upper magnet retaining ring, machined slot, and strong , 360 ° epoxy bonds are incorporated at each magnet location to secure a permanent connection to the motor housing transfer.

Power-X Motor Feature

1. High hardness aluminium 7075 case, and precise CNC machined steel shaft.

2. Special thrust ball bearing for high pulling force.

3. Oxygen-free and 180℃ resistance copper wire is used in winding the motor to enhance the resistance to short circuit.

4. Wide working voltage range from 6S to 12S Lipo .

5. Work perfectly with big size props to meet various user demand in industrial field.

6. Supper dynamic balance

Power-X Motor Specification
