RT4577
- PRODUCT DETAIL
lightweight dc motor high rpm 24V 3000W

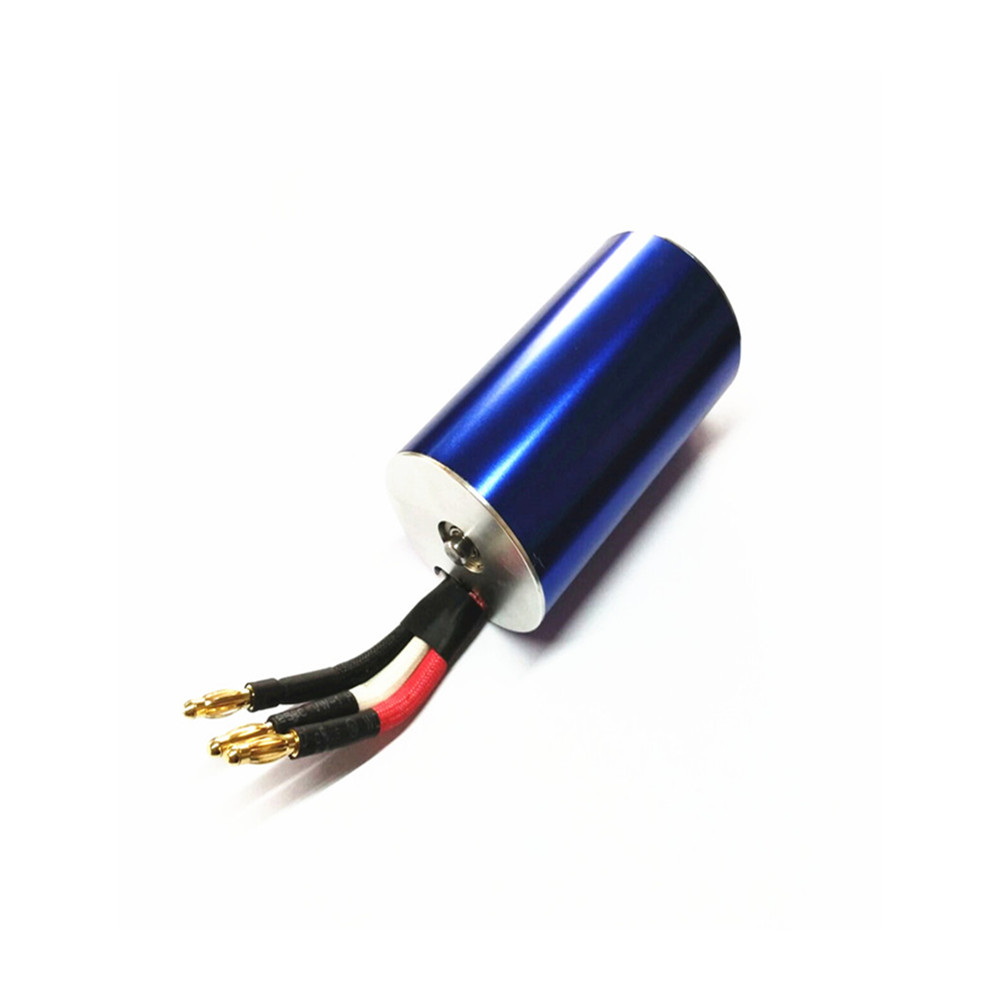

RT45 series inrunner brushless motor. Motors are slotless 2 poles designs.
Inrunner brushless dc motors
Motor Diameter: 45mm
Motor Length: 77mm
Shaft Diameter: 5.0mm (6.0mm Customs)
Shaft Length: 20mm
Weight: 555g
Mounting Hole Size: M4, pitch 30mm
Mounting Hole Depth: 5.5mm Max.
Watercooling jacket optional with extra cost
| Model No | RPM/V | No-load Current (7.4V) | Max. Amps (A) | Resistance | Max. Volt(V) | Max Power |
| RT4577 07 | 1900 | 5.0A | 118A | 0.0048 | 26 | 3068W |
| RT4577 08 | 1600 | 3.8A | 110A | 0.0059 | 31 | 3410W |
| RT4577 09 | 1400 | 3.2A | 95A | 0.0088 | 35 | 3325W |
| RT4577 10 | 1200 | 3.0A | 85A | 0.0115 | 41 | 3485W |
| RT4577 11 | 1100 | 2.7A | 78A | 0.0146 | 42 | 3276W |
| RT4577 12 | 1000 | 2.4A | 70A | 0.0172 | 42 | 2940W |
| RT4577 13 | 900 | 2.2A | 65A | 0.021 | 42 | 2730W |
| RT4577 15 | 800 | 2.0A | 56A | 0.0287 | 42 | 2352W |
| RT4577 17 | 700 | 1.6A | 48A | 0.0385 | 42 | 2016W |
