D107L165-WC
- PRODUCT DETAIL

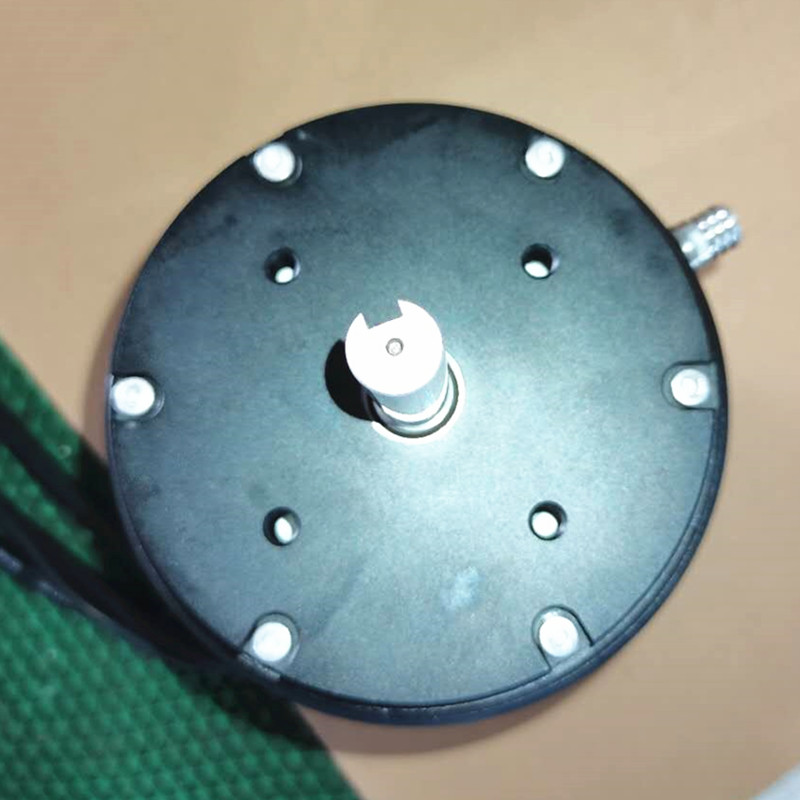

electric motorcycle motor car motor 96V 20kw
Please Note:
This motor is with watercooling jacekt version, you must have extra pump to make it water cooling.
If you need to use the motor in the water, please select the ip68 waterproof version.
If you need to use the motor in the air, please select the with watercooling jacket water-cooled version.
IP68 fully waterproof motor must be completely immersed in water for use, so that the motor can work with complete heat dissipation.
If the motor burnt due to the incorrect use there with no warranty!!!
10-14S
36-60V
12-18S
48-75.6V
14-22S
60-92.4V
14-25S
60-105V
16-28S
67.2-117.6V
18-32S
75.6-134.4V
Reacher Tech D107L16-WC water cooling Inner-runner Motor Specification
Model P/N
D107L165-192
D107L165-160
D107L165-140
D107L165-120
D107L165-107
D107L165-95
Turn
2.5T
3T
3.5T
4T
4.5T
5T
Voltage range(LiPo Cells)
Max Spin Speed(RPM)
12902
12096
12936
12600
12583
12768
Speed Constance kV(RPM/V)
192
160
140
120
107
95
Torque Constance Kt(N*M/A)
0.0669
0.0751
0.0779
0.0874
0.0989
0.1087
8.4V No Load Current(A)
3.5
3.2A
2.8
2.5
2.2
2
Max Power（KW）
21.9
25
26.6
25
25.5
24.8
Peak current（A）
450
420
380
340
300
280
Max Effeciency
89%
>87%
90%
91%
91%
91%
Max torque@60%(N*M)
30.1
31.3
29.6
29
29.5
30.5
Rating Power(KW)
17.2
20.3
22.3
20
20.7
21.6
Rating Torque (N*M)
18.3
19.3
19.4
19.7
20.4
20.5
Weight(KG)
5.26
5.2
5.3
5.19
5.3
5.2
Construction
12N/10P
Dimension(mm)
D118*L165
Max working temperature
100︒C
Shaft Output Size (mm)
D15*L50
Phase Wires Size (mm)
6AWGx300mm
Connector
10.0mm plug
Service Life
8000H
Insulation voltage & leak current
AC500V/10MA/3S
