PDI-5521MG-180
- PRODUCT DETAIL

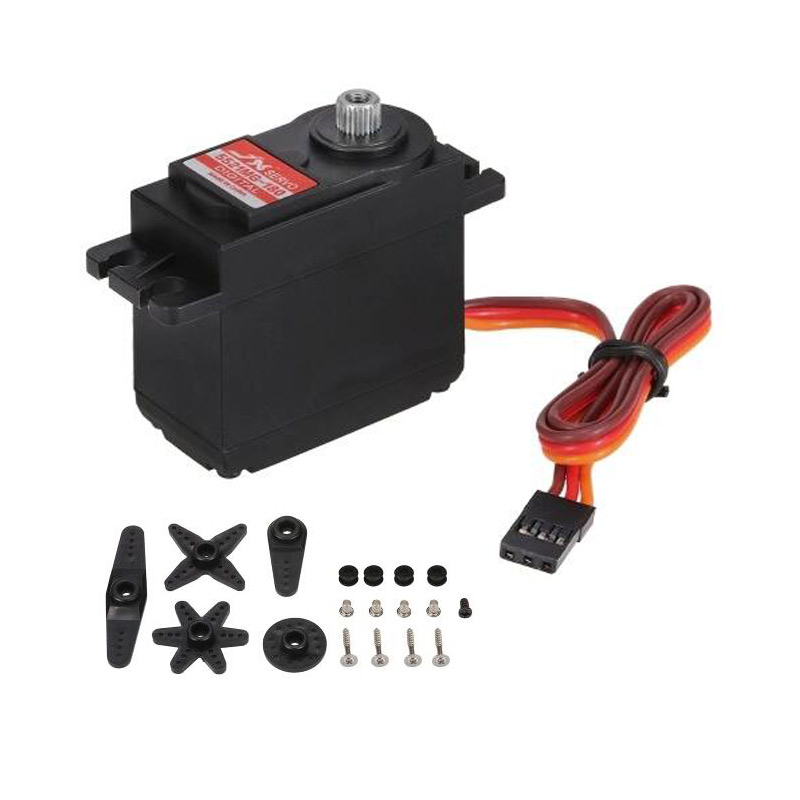

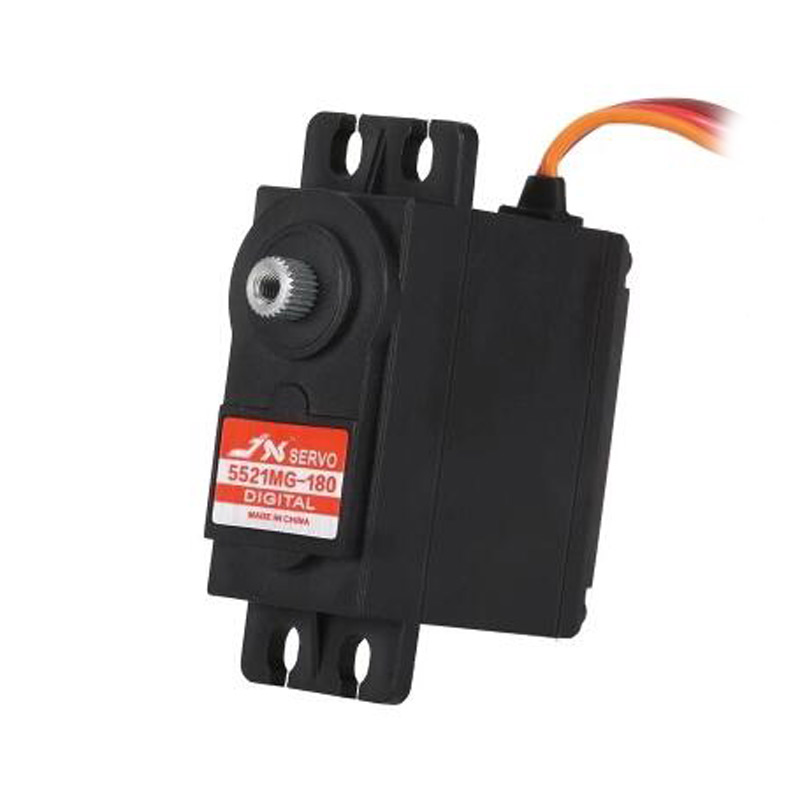

JX PDI-5521MG-180 21KG Metal Gear Digital Standard Servo for RC Robot Car
Features:
Dual ball bearings
High quality brushed motor
Small size and light weight
Large stall torque of 20.32Kg/cm
High-precision Taiwan-made metal gears
High performance digital standard servo
Suitable for RC car, boat, drone and helicopter etc.
Specifications:
Brand: JX
Model: PDI-5521MG-180°
Angle range: ±90°
Band range: 500μs-2500μs
Neutral range: 1500μs
Operating voltage: DC4.8~6.0V
Operating speed (4.8V): 0.18sec/60°
Operating speed (6V): 0.16 sec/60°
Stall torque (4.8V): 17.25kg.cm
Stall torque (6.0V): 20.32kg.cm
Dimensions: 40.5 * 38 * 20.2mm
Connector wire length: about 250mm
Weight: 55.6g
Package List:
1 * JX PDI-5521MG-180° Servo
