D107L165S-WC
- PRODUCT DETAIL

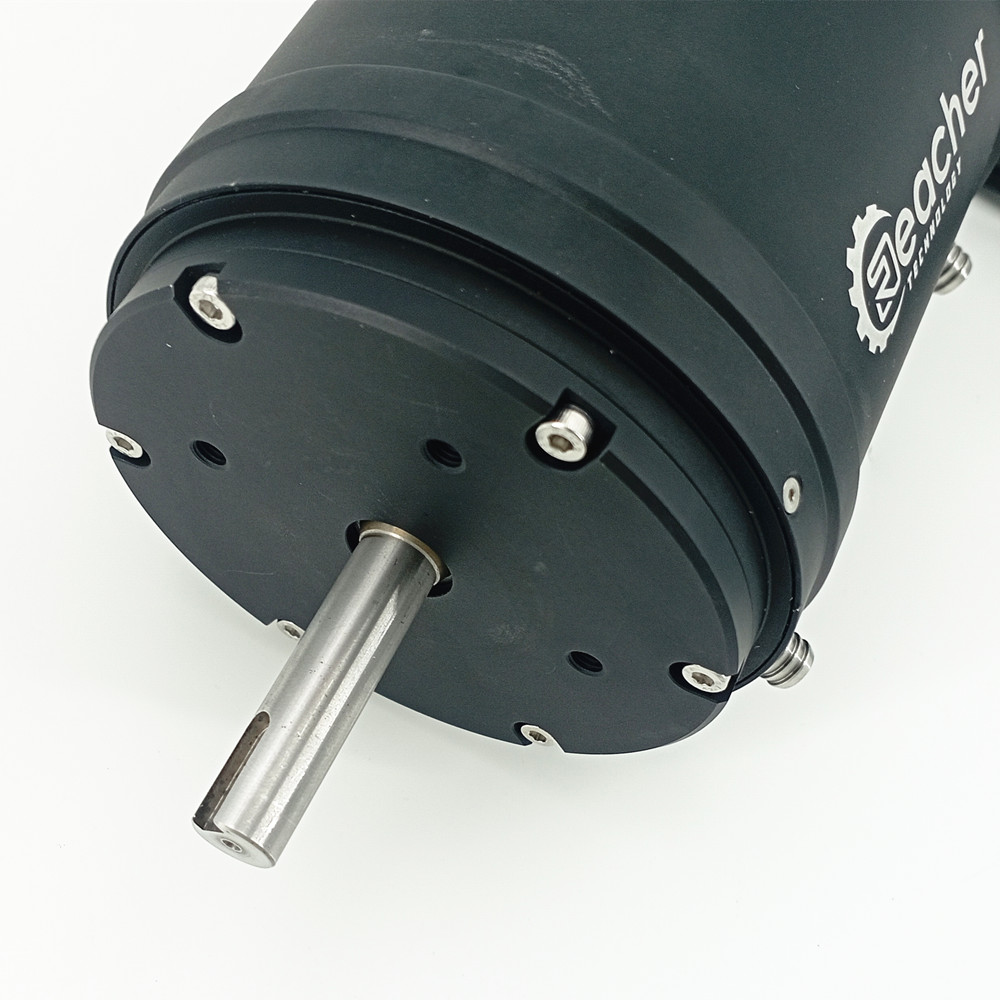

20kw brushless dc motor for motorcycle ev car marine boat
With watercooling jacket, need work with extra pump to make it watercooling, and working in the air only.
If you will work directly deep into water use, please choose our IP68 waterproof verison.
10-14S
36-60V
12-18S
48-75.6V
14-22S
60-92.4V
14-25S
60-105V
16-28S
67.2-117.6V
18-32S
75.6-134.4V
Reacher Tech D107L165S-WC with hall sensor watercooling Inner-runner Motor Specification
Model P/N
D107L165S-WC-192
D107L165S-WC-160
D107L165S-WC-140
D107L165S-WC-120
D107L165S-WC-107
D107L165S-WC-95
Turn
2.5T
3T
3.5T
4T
4.5T
5T
Voltage range(LiPo Cells)
Max Spin Speed(RPM)
12902
12096
12936
12600
12583
12768
Speed Constance kV(RPM/V)
192
160
140
120
107
95
Torque Constance Kt(N*M/A)
0.0669
0.0751
0.0779
0.0874
0.0989
0.1087
8.4V No Load Current(A)
3.5
3.2A
2.8
2.5
2.2
2
Max Power（KW）
21.9
25
26.6
25
25.5
24.8
Peak current（A）
450
420
380
340
300
280
Max Effeciency
89%
>87%
90%
91%
91%
91%
Max torque@60%(N*M)
30.1
31.3
29.6
29
29.5
30.5
Rating Power(KW)
17.2
20.3
22.3
20
20.7
21.6
Rating Torque (N*M)
18.3
19.3
19.4
19.7
20.4
20.5
Weight(KG)
5.26
5.2
5.3
5.19
5.3
5.2
Construction
12N/10P
Dimension(mm)
D107*L165
Max working temperature
100︒C
Shaft Output Size (mm)
D15*L50
Phase Wires Size (mm)
6AWGx300mm
Connector
10.0mm plug
Service Life
8000H
Insulation voltage & leak current
AC500V/10MA/3S
