RT4088RBG
- PRODUCT DETAIL

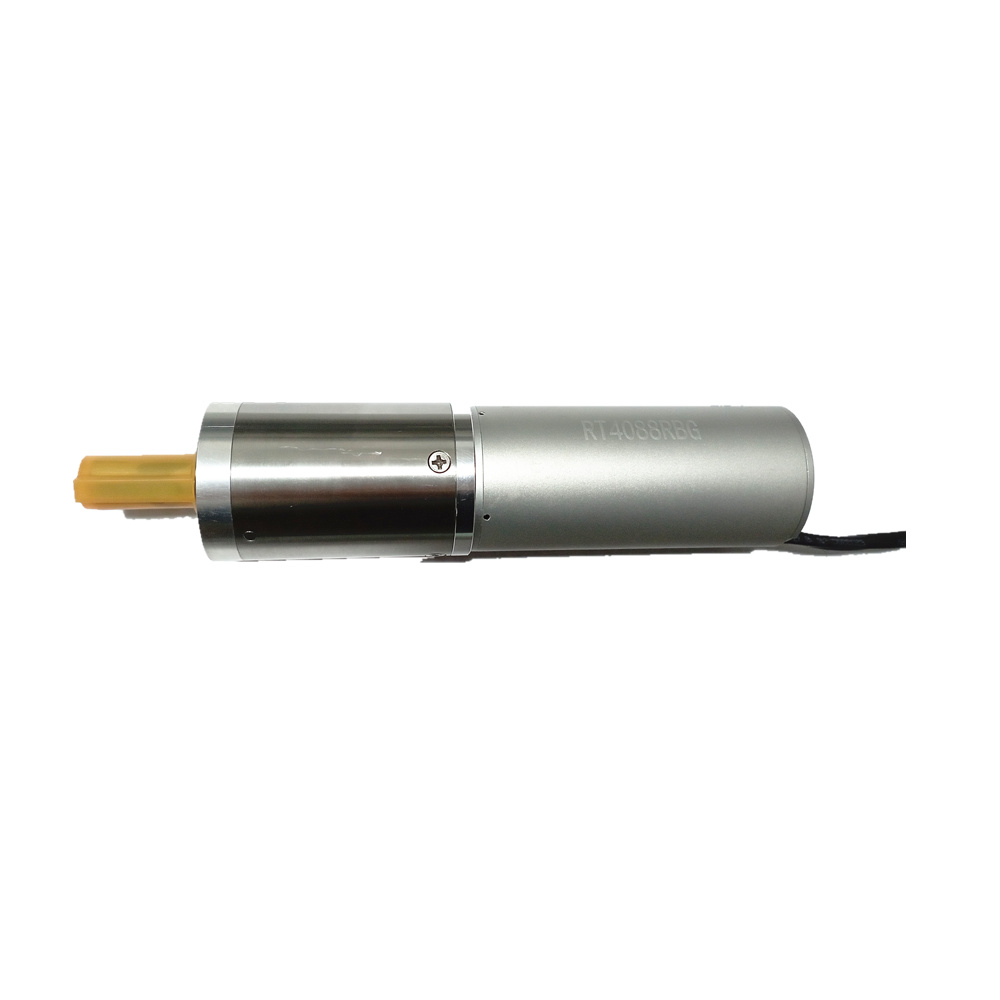

48V 500W 15Nm inrunner brushless dc motor Rated 15Nm max 30Nm motor 50:1 gear ratio motor 10000rpm motor
Model No: RT-4088RBG
Working Voltage: 48V
Speed RPM: 10000-12000RPM
Gear Ratio: 50:1
Output Speed: 220 rpm
Torque (rated): appr. 15 Nm
Torque (max): 30 Nm
Output Shaft Diam: 12mm
Shaft length: 15mm

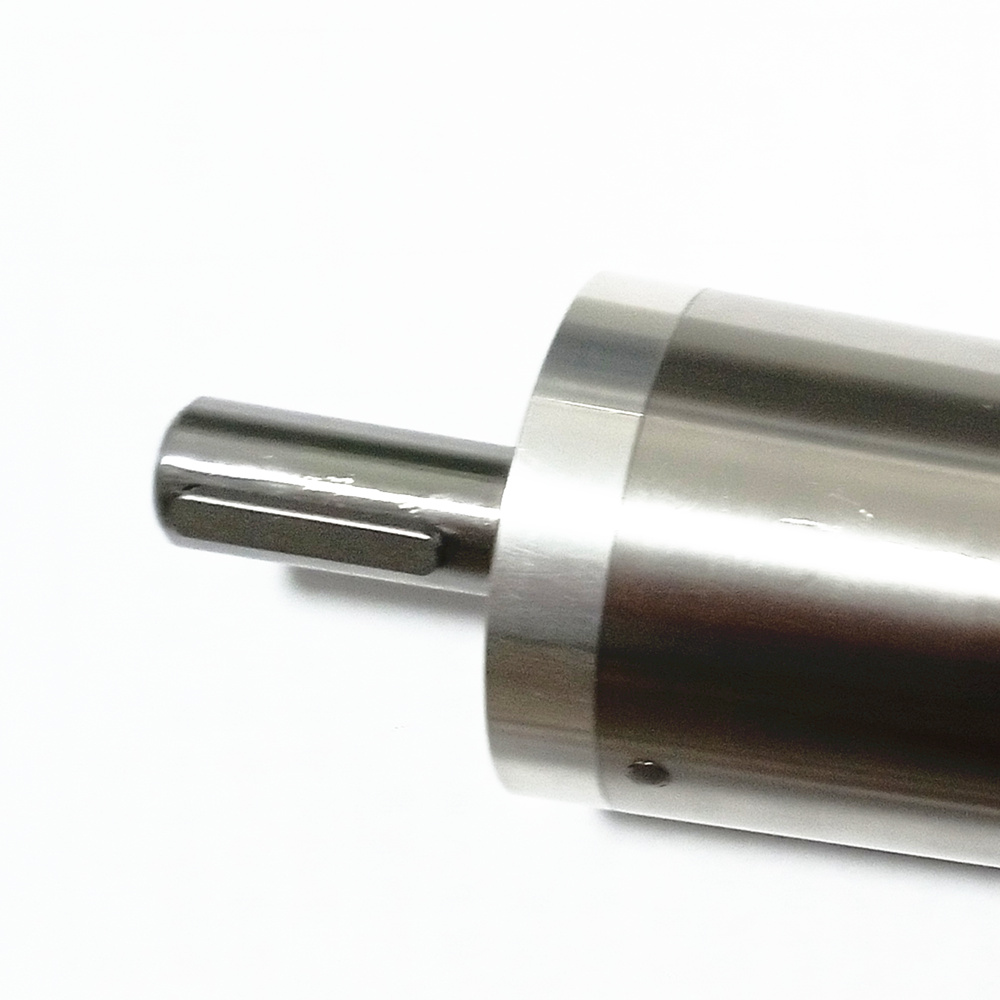

Shaft with keyway

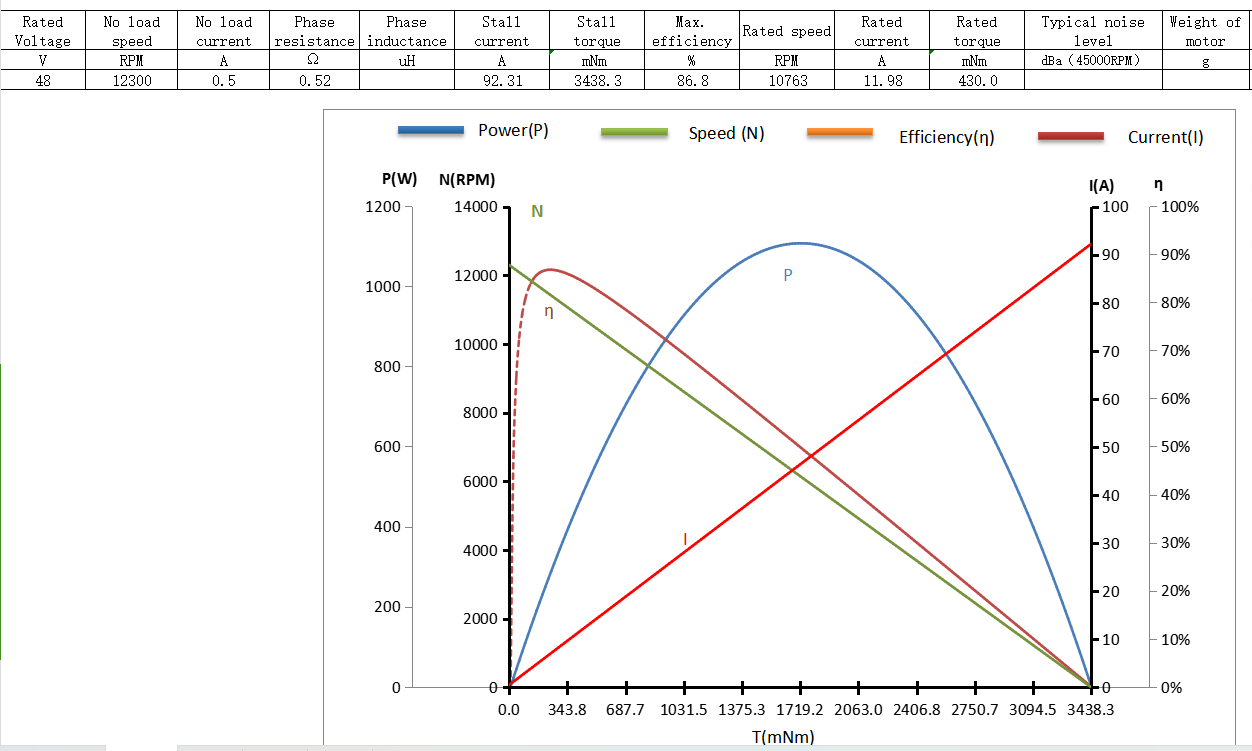

Motor data:

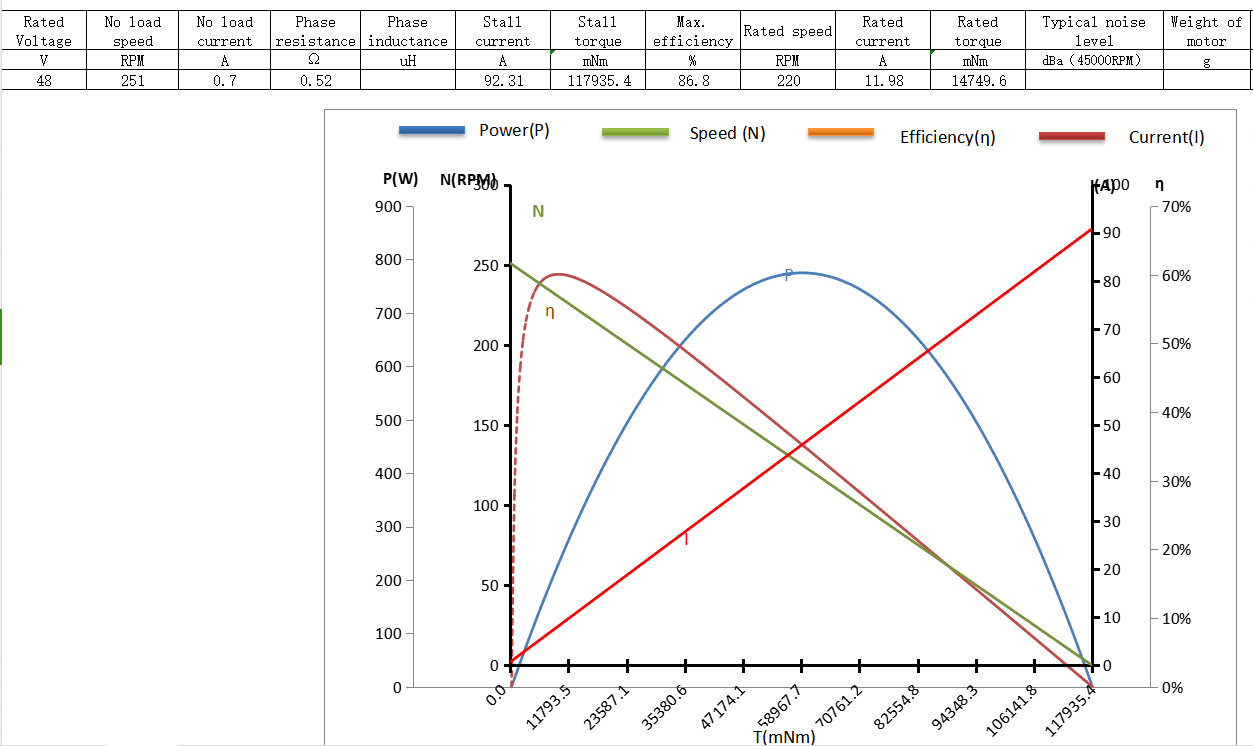

After Gear Box Data:

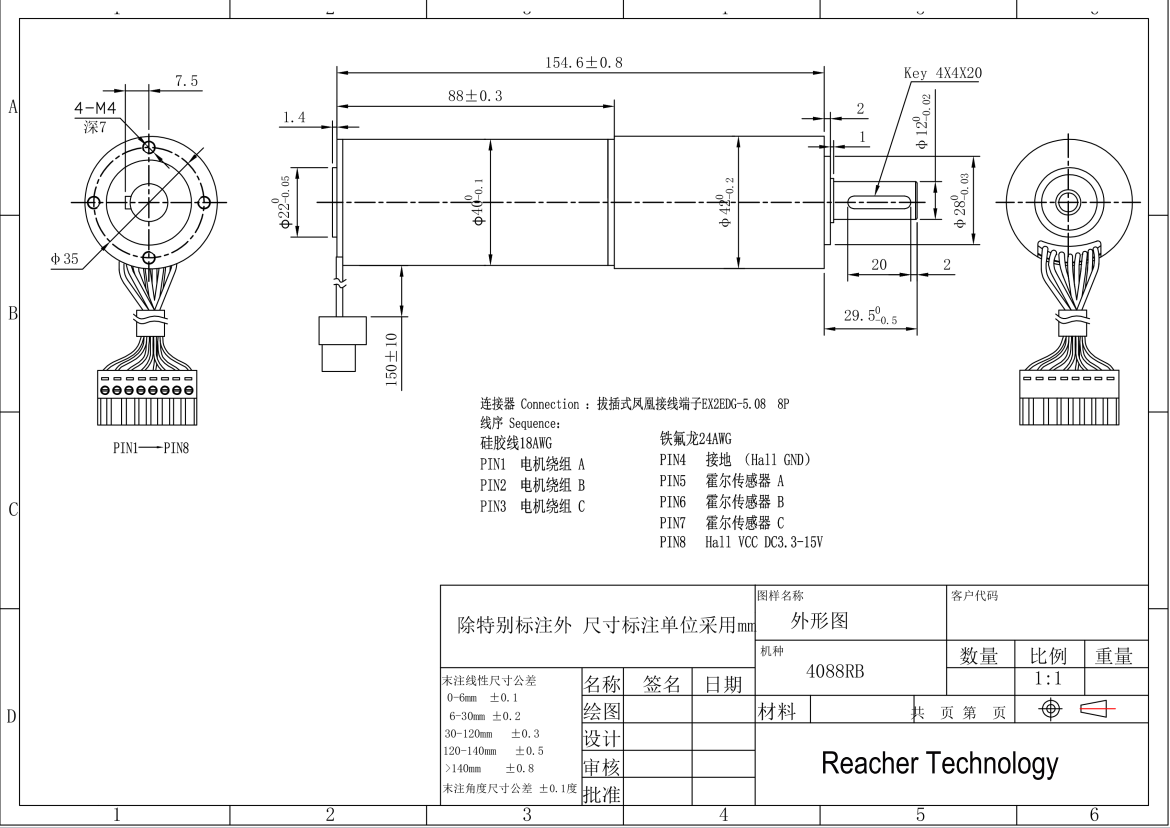

Drawing:
