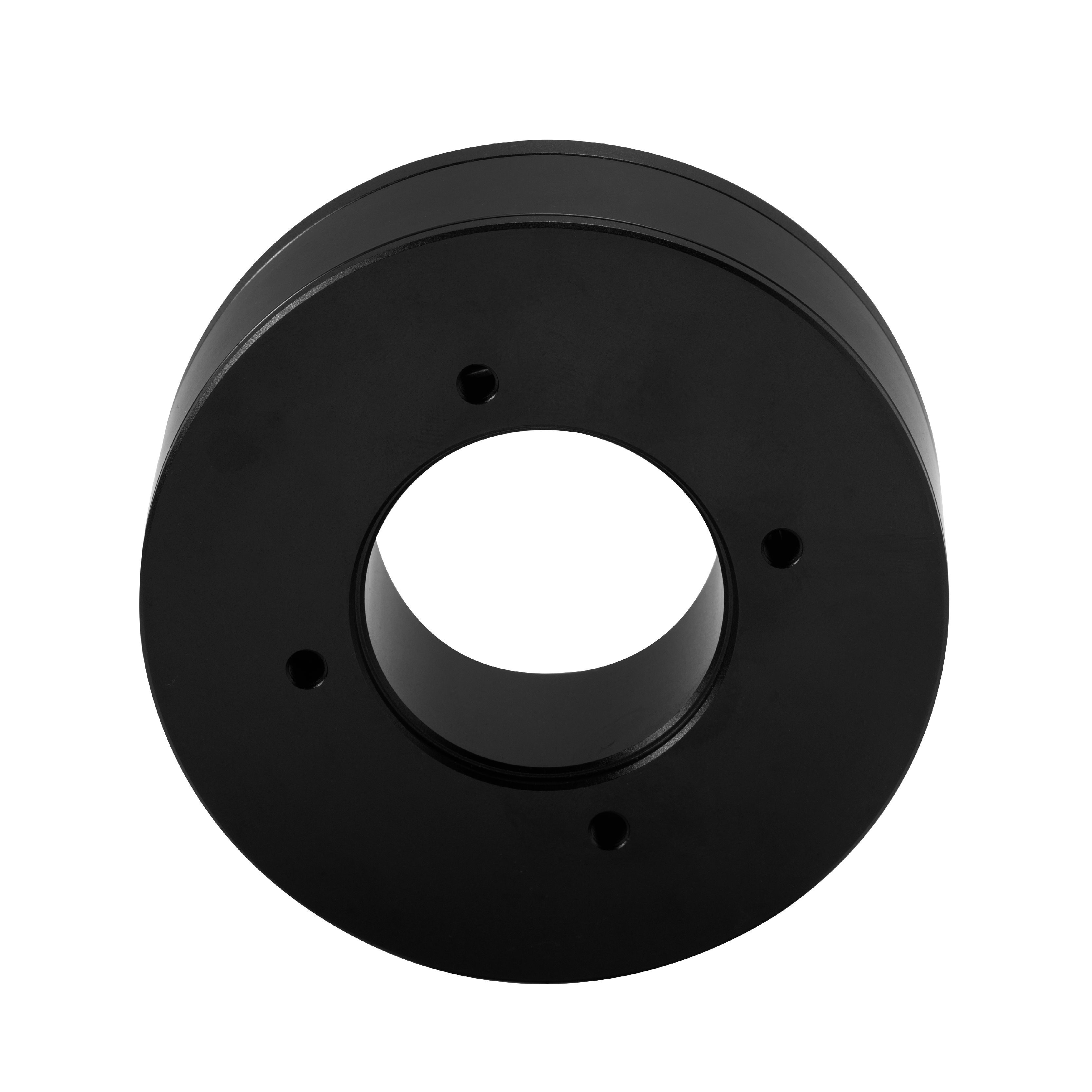

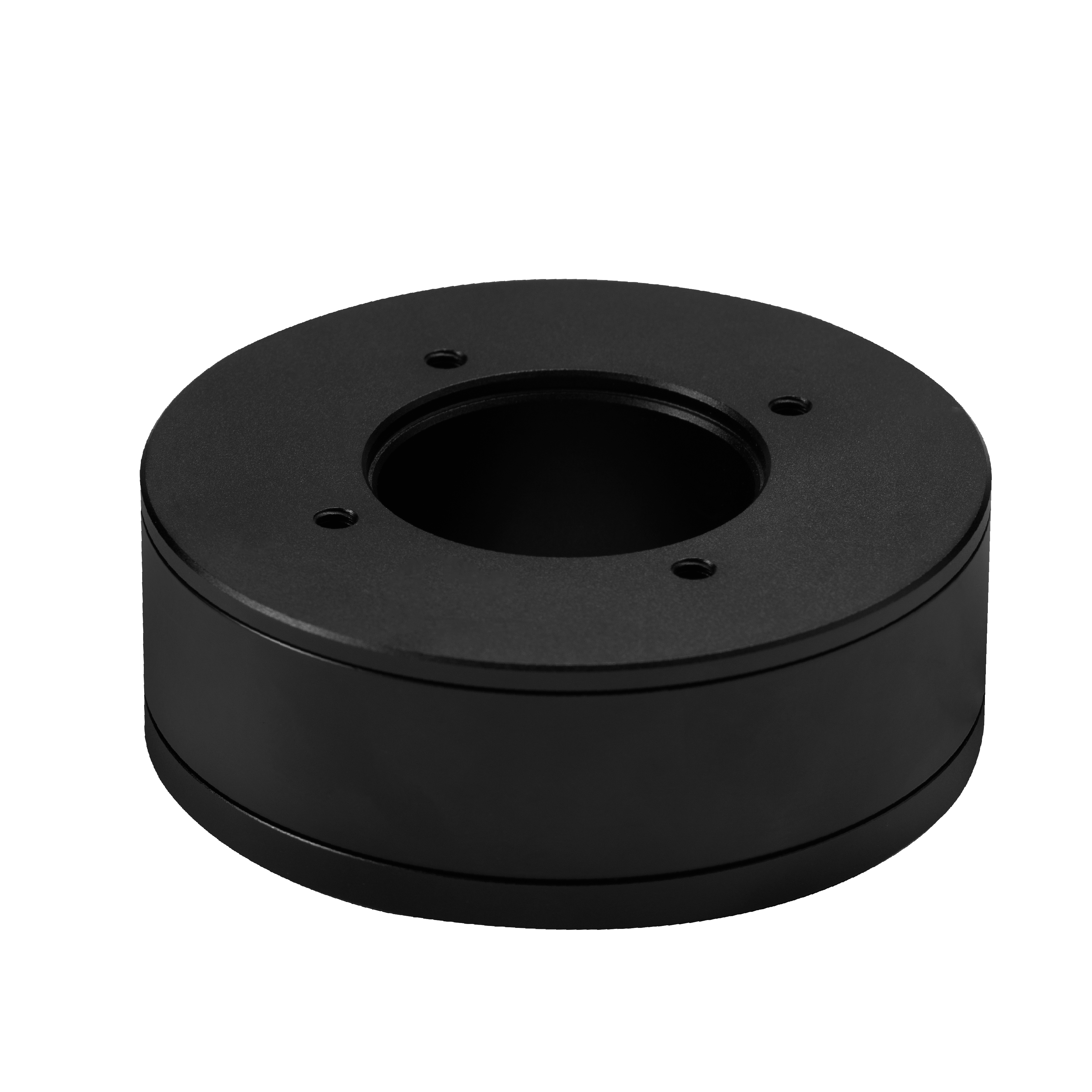

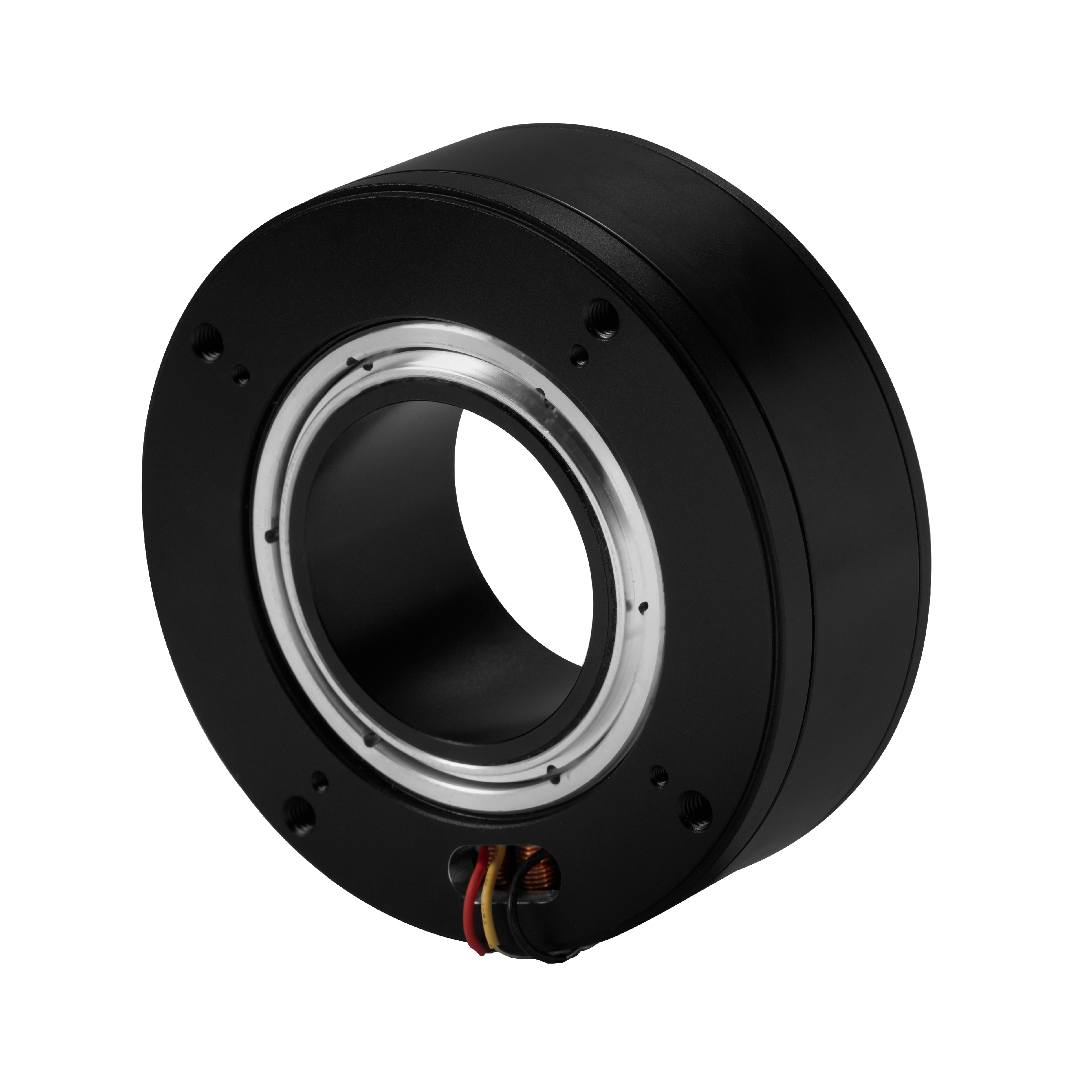

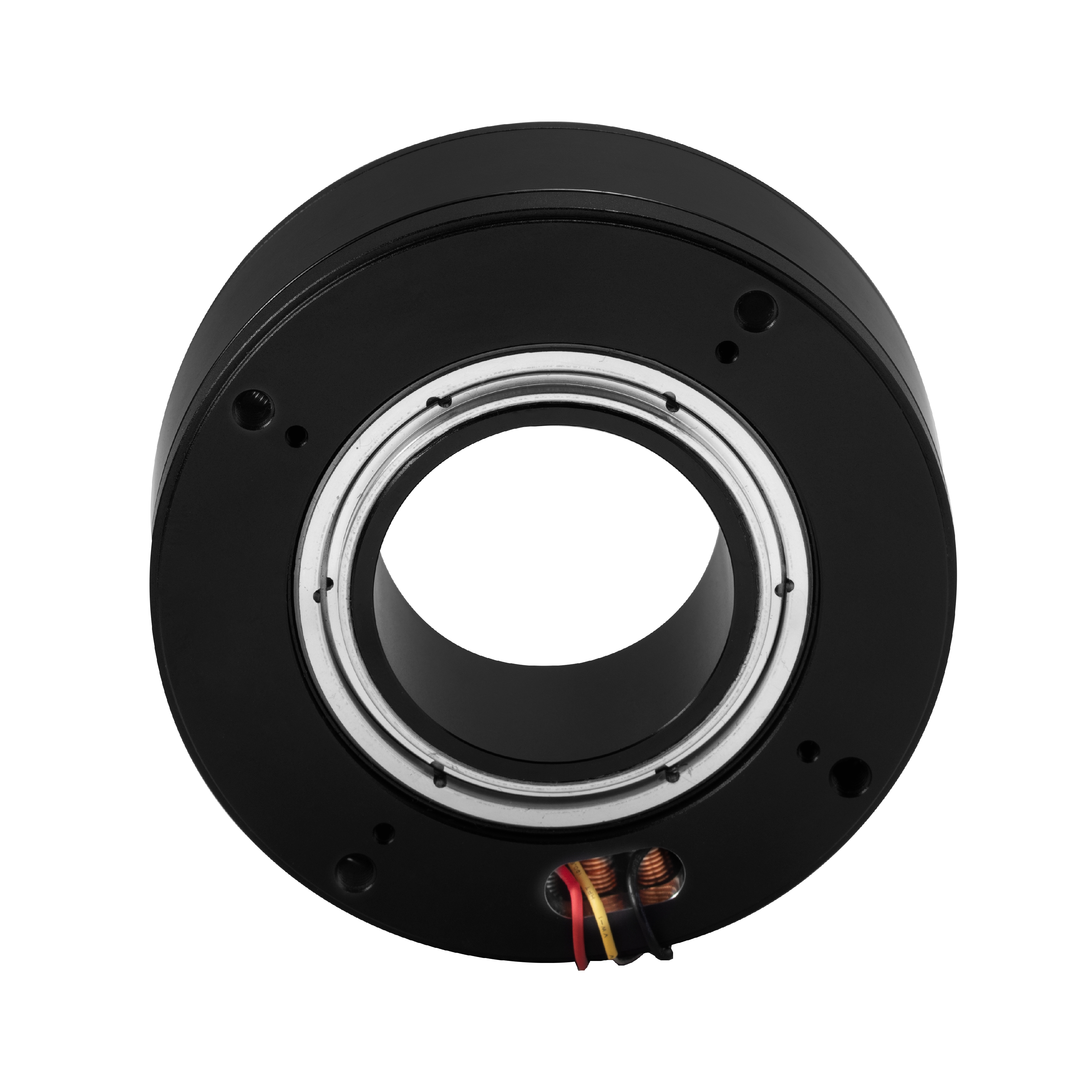

GB7215
- PRODUCT DETAIL
| 参数/型号 | 单位 | GB7215 |
| 额定电压(Nominal voltage) | V | 24 |
| 额定电流(Nominal current) | A | 2.9 |
| 额定扭矩(Nominal torque) | N.M | 1.2 |
| 额定转速(Nominal speed) | rpm | 354 |
| 最大转速(Max speed) | rpm | 516 |
| 堵转扭矩(Stall torque) | N.M | 3.7 |
| 堵转电流(Stall current) | A | 16 |
| 相电阻(Phase resistance) | Ω | 1 |
| 相电感(Phase inductance) | Mh | 0.63 |
| 转速常数(Speed constant) | rpm/v | 21.5 |
| 扭矩常数(Torque constant) | N.M/A | 0.41 |
| 转子惯量(Rotor inertia) | gcm^2 | 1555 |
| 极对数(Number of pole pairs) | Pairs | 21 |
| 工作温度范围(Working temperature) | ℃ | -20~80 |
| 编码器类型(Encoder type) | / | AS5048A/AS5600 |
