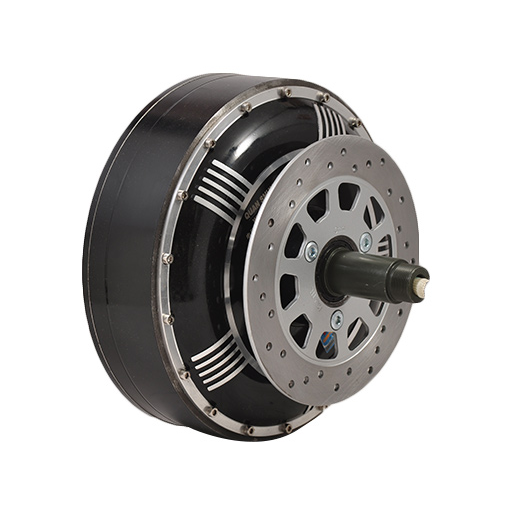

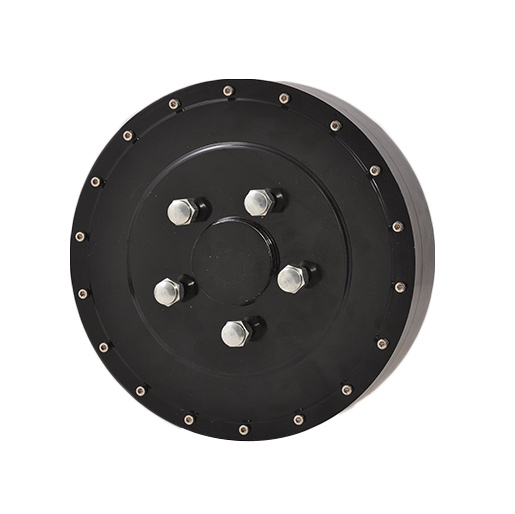

273 Car Hub Motor(45H) 6000W V3 Type
273 Single Shaft Car Hub Motor specially designed for Electric Car or 4-wheel electric vehicles, the rated power can be made 5000W,6000W OR 8000W for options.
Motor Specification:
-
Motor Type: BLDC Hub Motor with Permanent Magnet
-
Motor design: Single axle out without rim
-

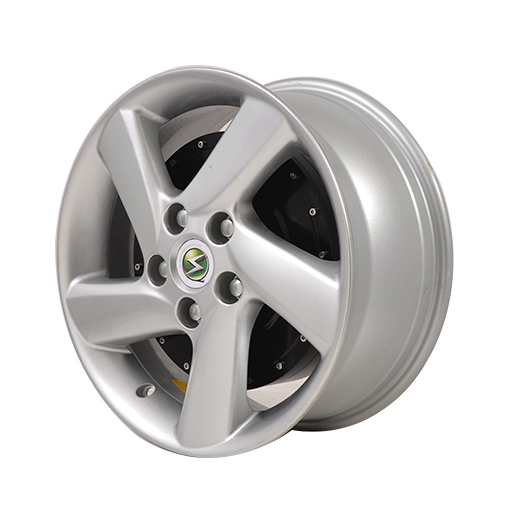

PCD for rim installation: 4 x100mm, 5×114.3mm
-
CB:60MM/70MM
-
Magnet Height:45MM
-
of Pole Pairs: 16pairs
-
Rated Power: 6000W V3
-
Peak Power: 10390W(Peak 12000W)
-
Rated Voltage: 72V( 60V-144V Can be optional)
-
Speed: 100km/h (40-100km/h can be customized)
-
Max No-load RPM: 1000RPM
-
Max Torque: 250N.M
-
Max Efficiency: 90%
-
Continious current:88A
-
Max current:120A (Peak 170A in short time)
-
Brake type: Disc brake
-
Winding Core material: Aluminium
-
Cross Section of Phase wire: 16 mm2
-
Hall sensor phasing angle: 120 degree
-
Temperature Sensor: Optional
-
Working Temperature: 70 degree, Peak 120 degree
-
Waterproof Grade: IP54
-
Color: Black
-
W./ G..W. : 25kgs /26kgs
-
Package Size: 44*43*34CM
