SPT5525LV-320
- PRODUCT DETAIL

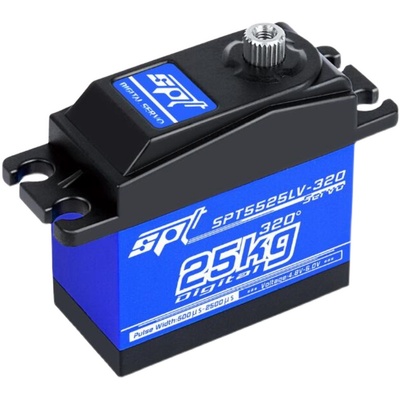

SPT5525LV-320 Large torque 25kg Controllable Large angle 300° Metal gear Digital SPT Servo
Brand:
SPT Servo
Potentiometer:
Mechanics
Motor:
Core
Voltage Range:
4.8V/6.0V
Neutral Point:
1500μs
Signal Frequency:
330Hz
PWM Voltage:
3.3V-5.0V
PWM Voltage:
3.3V-5.0V
Feedback Angle:
Yes
Operating Temperature:
-10℃-50℃
Cycle:
20ms
Dead band:
4μs
Default Direction:
CCW
Yes / no Lock:
Lock
Remote control Angle:
150°
500-2500μs Angle:
300° / PWM
Quiescent Current:
50mAh
Rated Current:
1.2A
Blocking Current:
2.5A
Weight / Dimensions:
57g / 40.5*20*40.5mm
Output Gear:
Futaba 25T
Gear Material:
All Metal Gear
Shell Material:
Half Aluminum Shell
Bearing:
2BB
Connector Wire Length:
260MM / JR
line Definition:
Brown-/Red+/Orange s
Operating Speed:
4.8V/0.22''/60°
6.0V/0.18''/60°
/
Stall Torque:
4.8V/24kg.cm
6.0V/26kg.cm
/
