20280

Category: >100mm
Construction:36N/40P
Motor Diameter (mm):202mm
Motor Length (mm):84mm
Stator Size (mm):180*30mm
Stator Silicon steel sheets (mm):0.2mm
KV: 32KV or customized
Bearing:NSK Brand
Shaft: 10MM
Max Torque: 80Nm

  • PRODUCT DETAIL


Model No RT20280

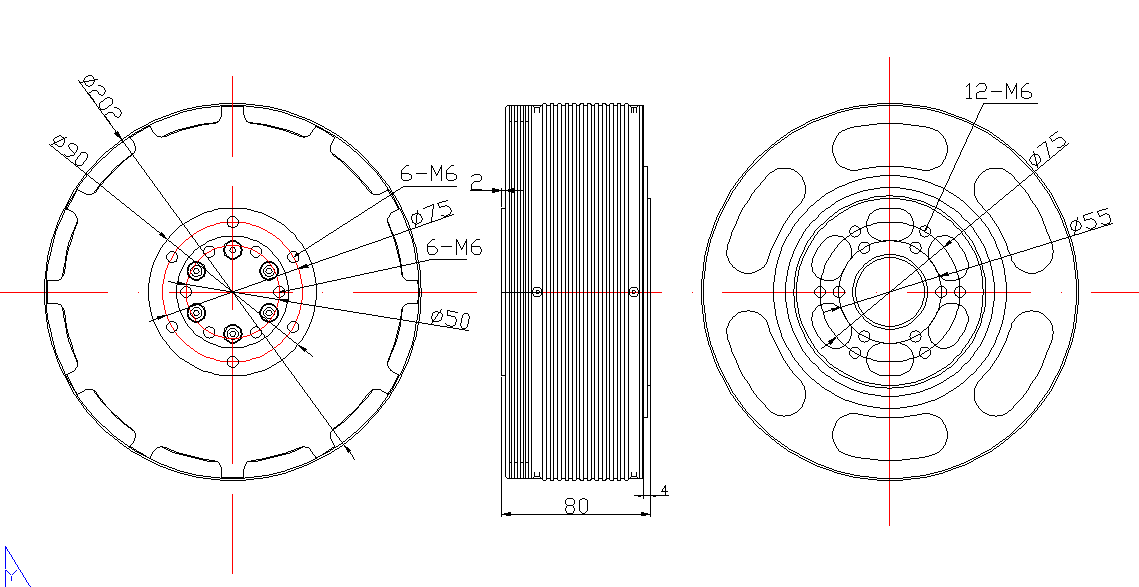

Dimension ø202mm x 84mm
Construction 36N40P
KV 32KV/ customized
Max. Thrust 60KG
Max. Torque 80N·m
Max. RPM 3840rpm
Suggested ESC 300-400A
Max. Current 250A
Voltage 60V-120V
Max Power 30KW
Rated Power 20KW
Li-Po Max 30S
Hall Sensor Optional
Weight 6.4KG
