PDI-6215MG

Category: JX Brand
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.18sec/60°
Operating Speed (6V): 0.16 sec/60°
Stall Torque (4.8V): 14.25kg.cm
Stall Torque (6V): 15.32kg-cm
Dimensions: 40.5X20.2X38mm
Weight: 62 g
Connector Wire Length: JR 265 mm (10.43in)

  • PRODUCT DETAIL

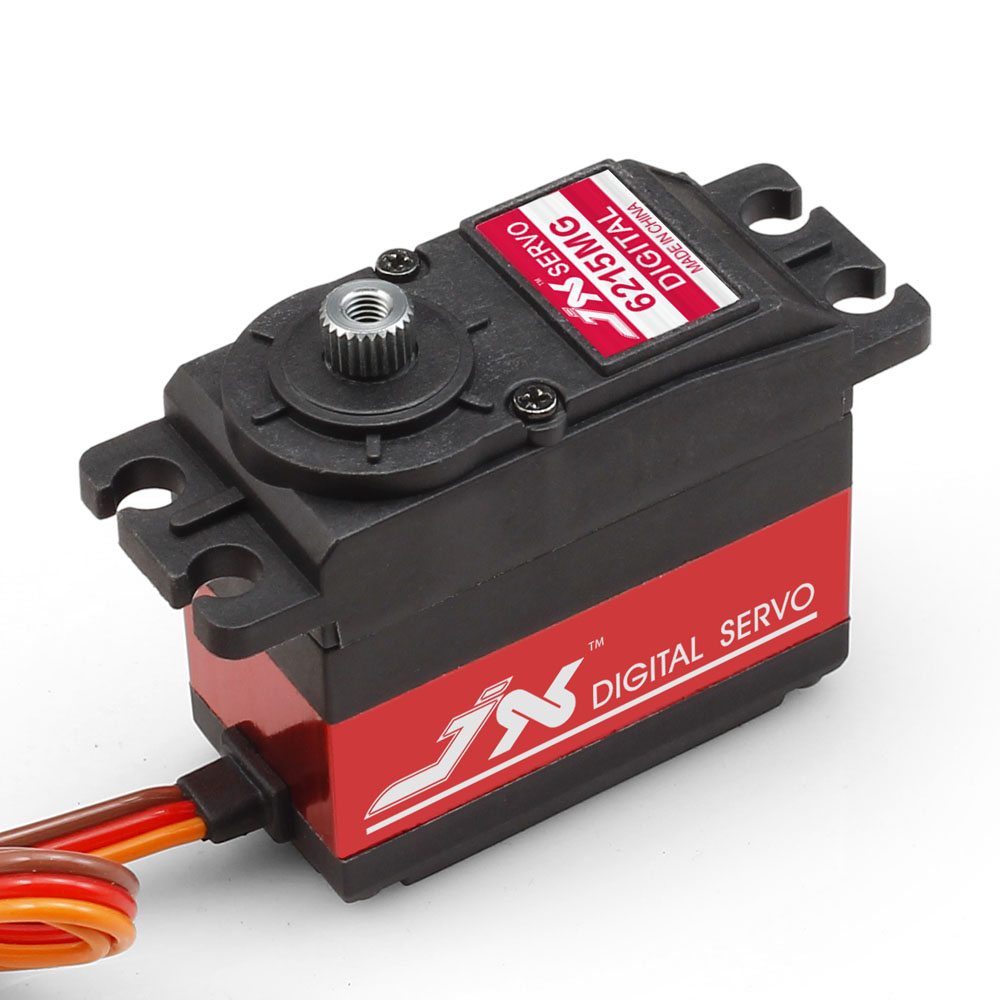

PDI-6215MG 15KG High Precision Metal Gear Digital Standard Servo


FEATURE:
-- High performance  digital  standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- CNC aluminium middle Shel
-- Dual ball bearings

SPECIFICATIONS:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.18 sec/60°
Operating Speed (6V): 0.16 sec/60°
Stall Torque (4.8V): 14.25 kg.cm (197.93 oz/in)
Stall Torque (6V):  15.32 kg-cm (212.79 oz/in)
Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight:  62g (2.18oz)
Connector Wire Length: JR  265 mm (10.43in)
Bearing: 2BB
