SPT5835W-270

Loading...

Category: SPT Brand
Dead band:2μs
Neutral Position:1500μs/330hz
Motor: Brushless motor
Remote control Angle:90°
500-2500μs Angle: 180° / PWM
Voltage range:4.8V-8.4V
Operating Speed(6.0V):0.11''/60°
Operating Speed(8.4V):0.08''/60°
Stall Torque(8.4V):35kg.cm

  • PRODUCT DETAIL

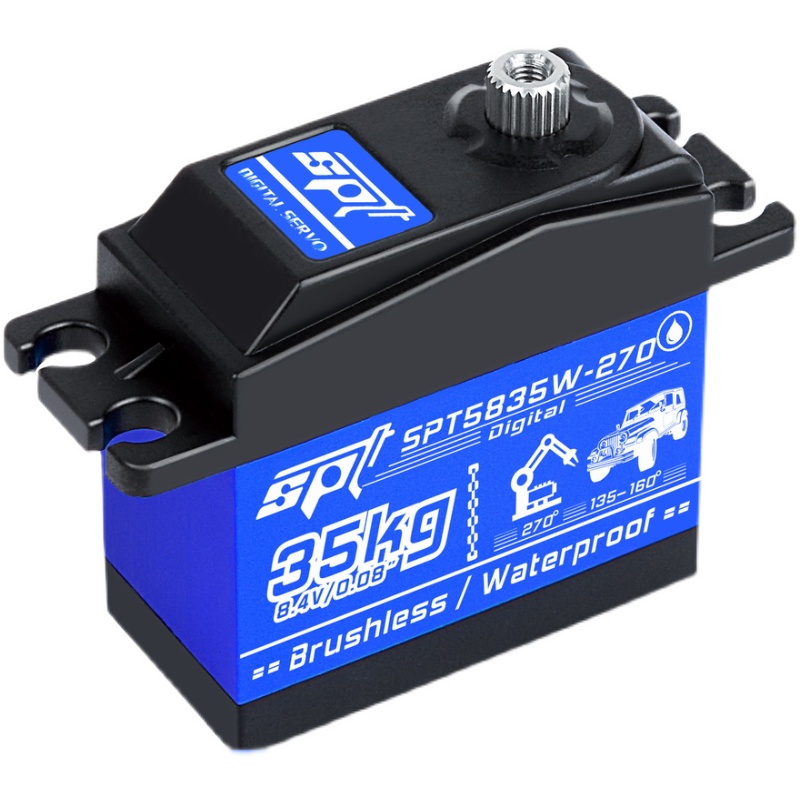

SPT5835W-270 35kg Large torque Metal gear  Brushless Digital Manipulator Servo

Brand:  SPT Servo Potentiometer:  Mechanics
Motor:  Brushless Voltage Range:  4.8V/6.0V/8.4V
Neutral Point:  1500μs Signal Frequency:  330Hz
PWM Voltage:  3.3V-5.0V PWM Voltage:  3.3V-5.0V
Feedback Angle:  No Operating Temperature:  -10-50
Cycle:  20ms Dead band:  2μs
Default Direction:  CCW Yes / no Lock:  Lock
Remote control Angle:  135° 500-2500μs Angle:  270° / PWM
Quiescent Current:  10mAh Rated Current:  1.5A
Blocking Current:  2.5A Weight / Dimensions:  67g / 40.5*20*37.5mm
Output Gear:  Futaba 25T Gear Material:  All Metal Gear
Shell Material:  Half Aluminum Shell Bearing:  2BB
Connector Wire Length:  260MM line Definition:  Brown-/Red+/Orange s
Operating Speed:  /  6.0V/ 0.11''/60°  8.4V/ 0.08''/60°
Stall Torque:  /  6.0V/ 25kg.cm  8.4V/ 35kg.cm

Features:


1. It is made of good-quality material, which is durable.
2. This digital servo is applicable for Large angle remote control vehicle and climbing vehicle.
3. This digital servo has long service life and easy to use.
4. This servo has a slow start function: it is difficult for the naked eye to see that, the current is relatively large at the moment of starting or reversing of the servo. With this function, the service life of the servo is relatively long.
5.Angle Range: The default of the remote controller is 90 degrees and the maximum is 120 degrees.Support 0.5-2.5ms, maximum angle 270 °
6.Upgrade Notics: This Servo currently upgraded to stainless steel gear .
7.Voltage and current: the supporting voltage of the Servo is between 6V-8.4V, and the BEC is at least 2A or above
8.With light weight and portable size, it is easy and convenient to carry and use.
