Frameless Motor

Category: Products
Type:Brushless Motor
Construction:Frameless
Efficiency: Ie 3
Color: Black
Certification: CE ROSH

  • PRODUCT DETAIL

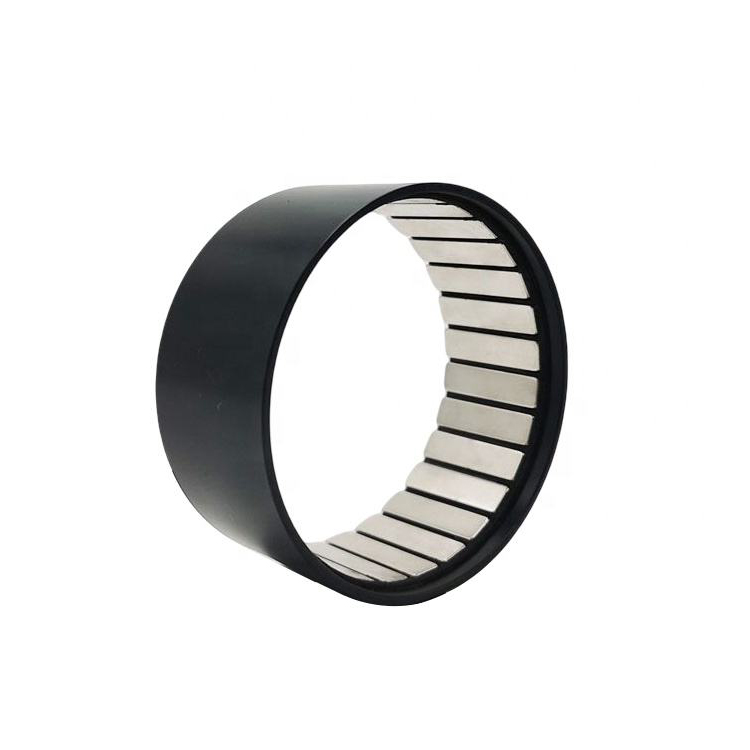

Reacher customized Size Outer Rotor High Power Gimbal Camera Robot Arm Bldc Frameless Motor

Features:

high torque
low speed
Easy to wire , easy to integrate
Multi-level structure , strong powerLarge torque , small torque fluctuation , balanced rotation
All our motors can be customized in voltage , size , torque , output power , speed etc

Any question and requirement , pls contact us freely

Model No Unit 1105 2205 2806 3505 3510 4310 4315 5215 5225 6010 6025 8110 8115 10025
OD mm 14.9 25.3 34.6 40 40 49 49 58.6 58.6 68 68 90 90 109
ID mm 5 10 14 22 22 25 25 24 24 36 36 58.5 58.5 78
Height of rotor iron shell mm 6.25 6.2 9.4 9.5 13.7 14 18.5 15.2 25.2 15.5 30.5 14 19 31.5
Stator height mm 5.5 5 6 6 10 10 15 15 25 10 25 10 15 25
Nominal voltage V 12 12 12 12 12 16 16 24 24 24 36 24 48 24
Nominal current A 0.59 0.66 0.81 0.79 0.53 0.79 0.59 1.12 1.28 1.19 1.78 1.75 6.5 4
Nominal torque N.M 0.01 0.04 0.06 0.07 0.11 0.21 0.28 0.76 1.26 0.73 1.77 1.6 2.16 6
Nominal Speed rpm 850 792 950 587 363 343 238 221 221 182 166 130 1800 140
Max Speed rpm 1214 1200 1452 890 550 520 360 336 336 275 252 290 2280 300
Stall torque N.M 0.01 0.06 0.09 0.11 0.16 0.32 0.42 1.15 1.9 1.1 2.68 2 5.83 6.9
Stall current A 0.92 1 1.22 1.2 0.8 1.2 0.9 1.69 1.94 1.8 2.67 3 10 11.2
Winding turns of motor T 50 65 60 40 40 60 30 60 50 80 50 / / 20
Phase to phase resitance Ω 12.5 8 5 6.5 8.8 10.9 15.2 11.8 11.8 11.9 10.1 3 0.4 2.5
Phase to phase inductance Mh 1.15 1.45 1.51 2.35 3.95 4.74 6.56 7.8 11.31 13.03 10.07 31.5 0.2 66
Speed constant rpm/v 108 100 121 74 45 33 23 14 14 11 7 11 37 12
Torque constant N.M/A 0.01 0.06 0.07 0.09 0.2 0.27 0.47 0.68 0.98 0.61 1.62 1.13 0.58 0.76
Rotor inertia gcm^2 15 42 51 56 81 202 268 667 933 748 1645 2860 1500 4656
Number of pole pairs 6 7 7 11 11 14 14 11 11 14 14 21 21 21
Working temperature 一20/80
Max demagnetize tempersture 120
