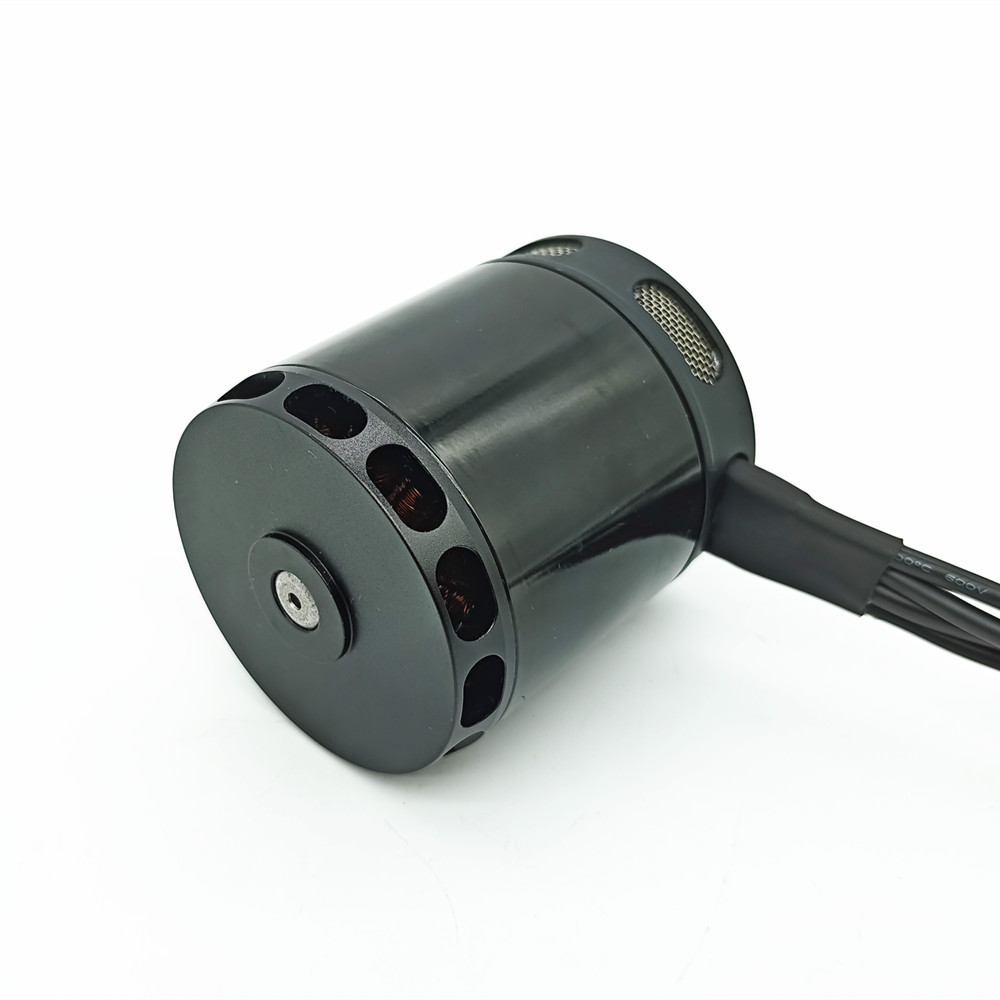

V4.0 high torque low rpm dc brushless gear dc motor 6355 Skateboard motor
Feature:
Hand-wound for maximum copper fill.
Precision-balanced rotor will boost the efficiency and power performance of the motor.
Nickel-plated sintered neodymium rotor for maximum motor acceleration braking power and performance in high-temperature conditions.
Product Parameters
Brand: Reacher( Support OEM & ODM)
Weight: 630g
KV: Custom, 300KV 270KV 250KV 230KV 205KV 175KV Optional
Dimension: 63*54mm
Working Voltage: 10-14s
Shaft Dimension: diameter 8mm*35mm length
Banana Connector: 4.0mm
Application: Skateboard, E-scooter.
| 48V | RT6355 V4.0 | |
| Model No | 6375-175 | 6375-205 |
| KV/Volt | 175kv | 205kv |
| Max. Power (W) | 1950 | 2200 |
| Rated Power (W) | 1480 | 1590 |
| Still Torque (N.m) | 2.11 | 2.15 |
| Rated Torque (N.m) | 1.57 | 1.55 |
| Noload RPM (rpm) | 8400 | 9840 |
| Rated RPM (rpm) | 7000 | 7800 |
| Max. Amps (A) | 40 | 45 |
| Continious currents (A) | 30 | 33 |
