SPT5632-120
- PRODUCT DETAIL

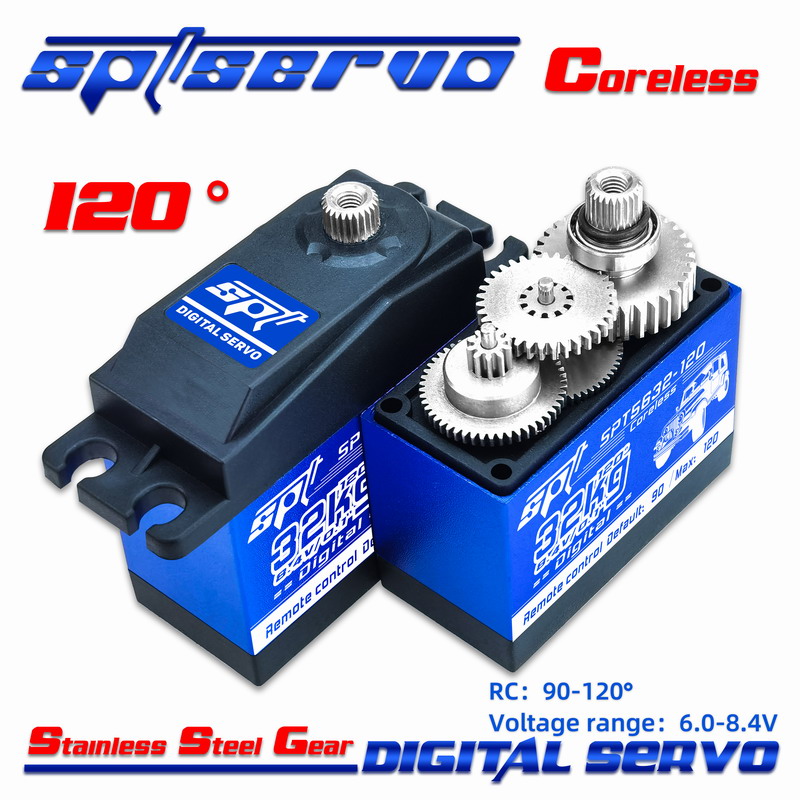

SPT5632-120 32kg Large torque Large angle 120 degree Metal gear servo for simulation vehicle
Brand:
SPT Servo
Potentiometer:
Mechanics
Motor:
Coreless
Voltage Range:
4.8V/6.0V/8.4V
Neutral Point:
1500μs
Signal Frequency:
330Hz
PWM Voltage:
3.3V-5.0V
PWM Voltage:
3.3V-5.0V
Feedback Angle:
No
Operating Temperature:
-10℃-50℃
Cycle:
20ms
Dead band:
2μs
Default Direction:
CW
Yes / no Lock:
No Lock
Remote control Angle:
90°
500-2500μs Angle:
/° / PWM
Quiescent Current:
10mAh
Rated Current:
1.5A
Blocking Current:
2.5A
Weight / Dimensions:
58g / 40.5*20*37.5mm
Output Gear:
Futaba 25T
Gear Material:
All Metal Gear
Shell Material:
Half Aluminum Shell
Bearing:
2BB
Connector Wire Length:
260MM
line Definition:
Brown-/Red+/Orange s
Operating Speed:
4.8V/0.16 ''/60°
6.0V/0.13 ''/60°
7.4V/0.10 ''/60°
Stall Torque:
4.8V/20.7 kg.cm
6.0V/25 kg.cm
7.4V/32 kg.cm
Features:
1. It is made of good-quality material, which is durable.
2. This digital servo is applicable for Large angle remote control vehicle and climbing vehicle.
3. This digital servo has long service life and easy to use.
4. This servo has a slow start function: it is difficult for the naked eye to see that, the current is relatively large at the moment of starting or reversing of the servo. With this function, the service life of the servo is relatively long.
5.Angle Range: The default of the remote controller is 90 degrees and the maximum is 120 degrees
6.Upgrade Notics: This Servo currently upgraded to stainless steel gear .
With light weight and portable size, it is easy and convenient to carry and use.
