SPT5632W-160
- PRODUCT DETAIL

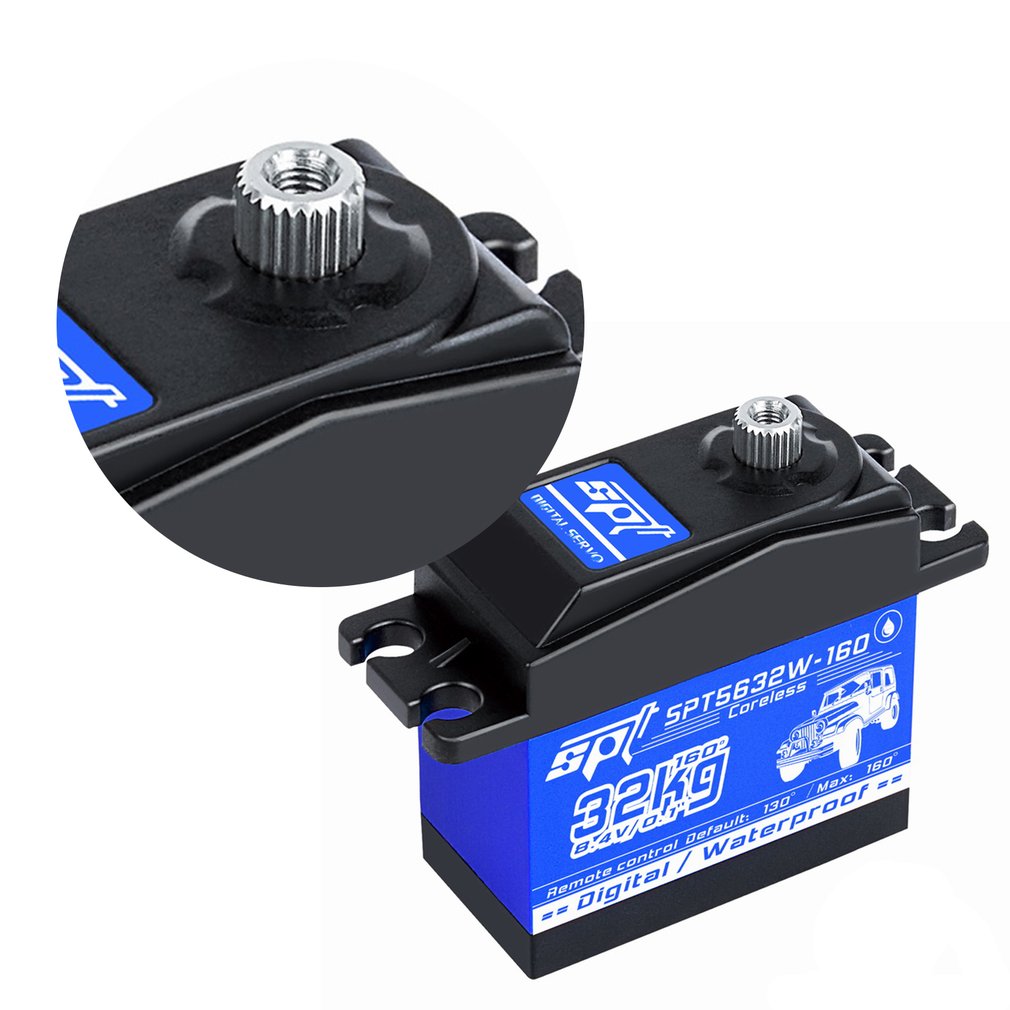

SPT5632W-160 32kg Waterproof Digital Coreless servo for Climbing car
Brand:
SPT Servo
Potentiometer:
Mechanics
Motor:
Coreless
Voltage Range:
4.8V/6.0V/8.4V
Neutral Point:
1500μs
Signal Frequency:
330Hz
PWM Voltage:
3.3V-5.0V
PWM Voltage:
3.3V-5.0V
Feedback Angle:
No
Operating Temperature:
-10℃-50℃
Cycle:
20ms
Dead band:
2μs
Default Direction:
CW
Yes / no Lock:
No Lock
Remote control Angle:
160°
500-2500μs Angle:
/° / PWM
Quiescent Current:
10mAh
Rated Current:
1.5A
Blocking Current:
2.5A
Weight / Dimensions:
58g / 40.5*20*37.5mm
Output Gear:
Futaba 25T
Gear Material:
All Metal Gear
Shell Material:
Half Aluminum Shell
Bearing:
2BB
Connector Wire Length:
260MM
line Definition:
Brown-/Red+/Orange s
Operating Speed:
4.8V/0.16 ''/60°
6.0V/0.13 ''/60°
7.4V/0.10 ''/60°
Stall Torque:
4.8V/20.7 kg.cm
6.0V/25 kg.cm
7.4V/32 kg.cm
Features:
1. It is made of good-quality material, which is durable.
2. This digital servo is applicable for Large angle remote control vehicle and climbing vehicle; Single chip microcomputer control board.
3. This digital servo has long service life and easy to use.
4. This servo has a slow start function: it is difficult for the naked eye to see that, the current is relatively large at the moment of starting or reversing of the servo. With this function, the service life of the servo is relatively long.
5.Angle Range: the remote controller is required to control the large angle. If the standard angle Servo used by the climbing vehicle cannot meet the maximum steering, or the standard servo cannot meet the linear difference due to the long servo arm, the short servo arm can be replaced for a long time and our large angle servo can be used to achieve the maximum steering (the default of the remote controller is 135 degrees and the maximum is 160 degrees).
6.Upgrade Notics: This Servo currently upgraded to stainless steel gear .
With light weight and portable size, it is easy and convenient to carry and use.
Specifications:
Potentiometer: Mechanics
Motor: Coreless
Voltage Range: 4.8V / 6.0V/8.4V
Signal Frequency: 330HZ
PWM Voltage: 3.3V-5. 0V
Feedback Angle: no
Cycle: 20ms
Yes / no Lock: Lock
Remote control Angle: 160°
Quiescent Current :10mah
Rated Current :1.5A
Bing Current : 3.0A
Weight / Dimensions: 58g / 40.5*20*37.5mm
Output Gear: Futaba 25T
Gear Material: All Metal Gear
Shell Material: Half Aluminum Shell
Bearing: 2BB
Connector Wire Length : 260MM
line Definition: Brown- / Red + / Orange s
Operating Speed: 4.8V/0.16″/ 60° 6.0V/0.13″/ 60° 7.4V /0.10″/60°
Stall Torque: 4.8V/20.7KG.cm 6.0V/25kg.cm 7.4V/32KG.cm
Package Included:
Digital servo * 1
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
