SPT5630
- PRODUCT DETAIL

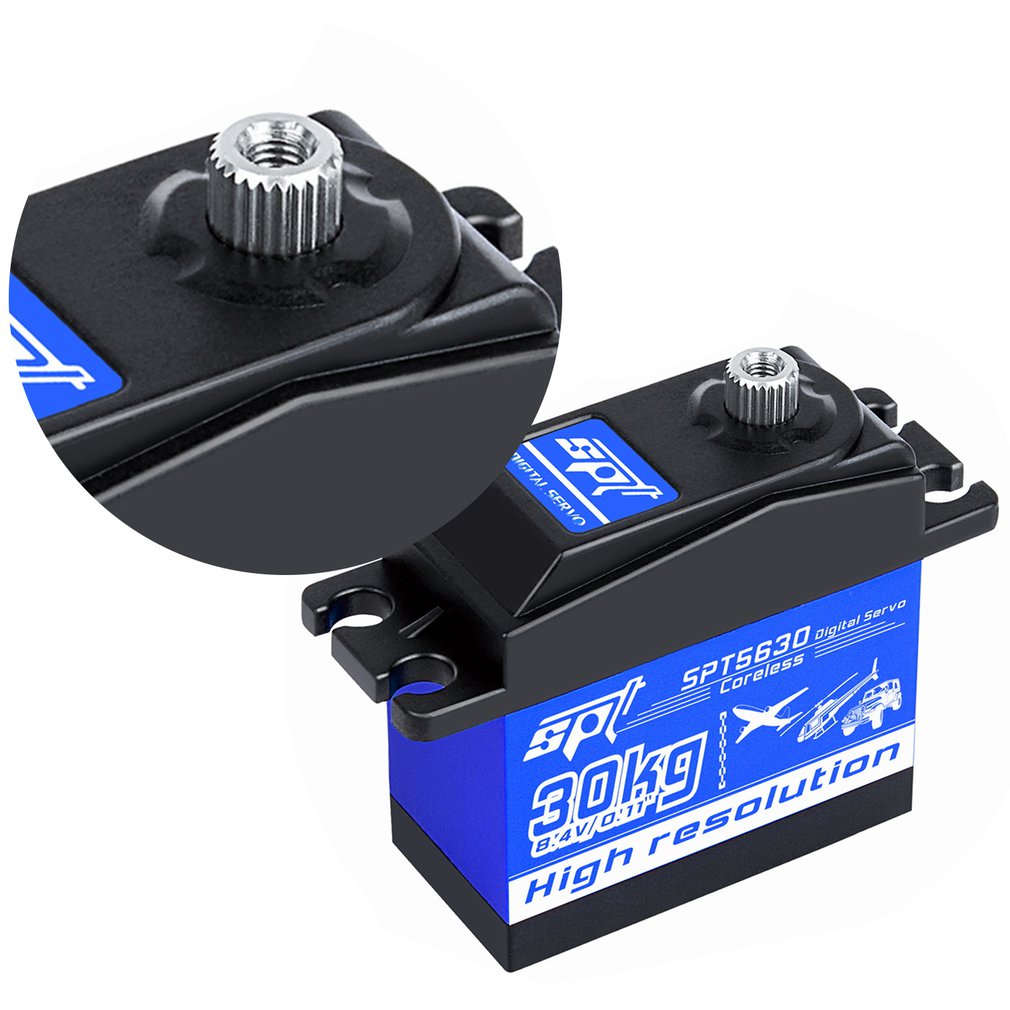

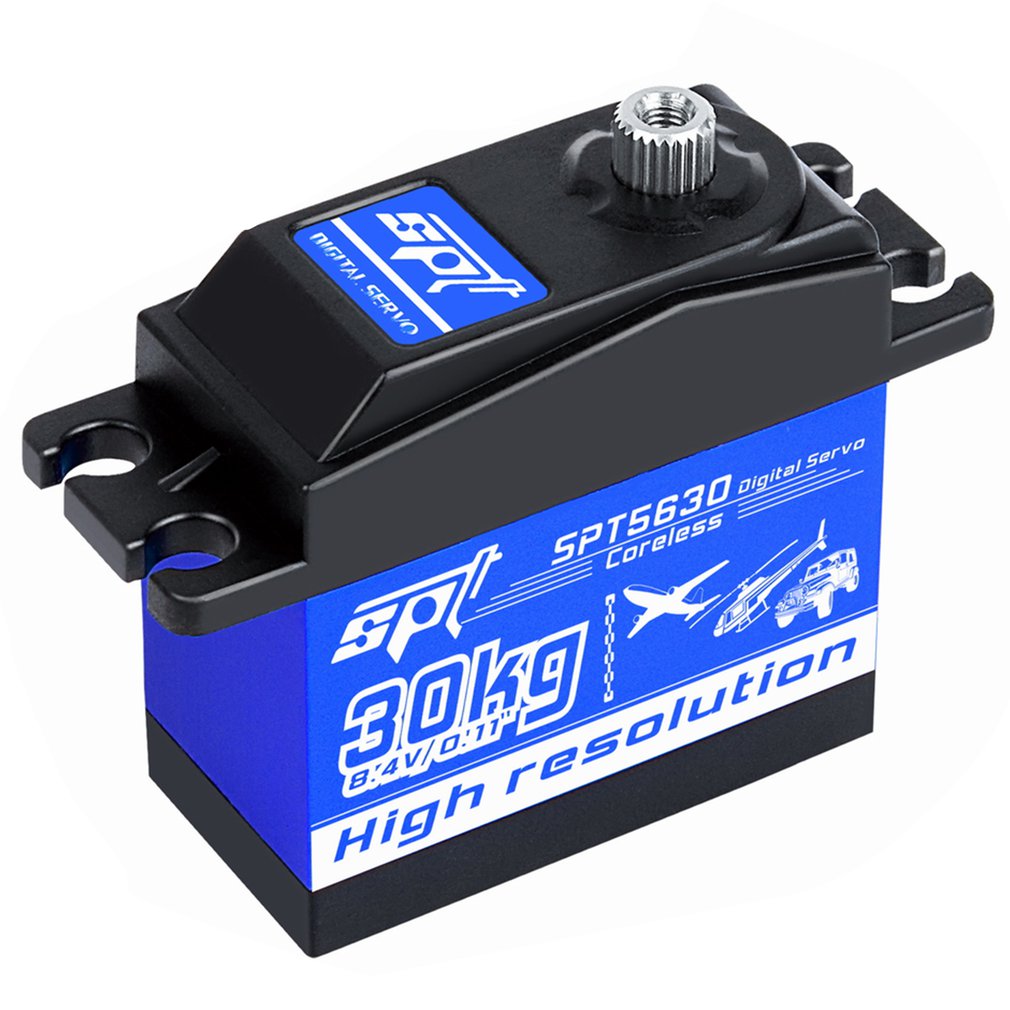

PWM Signal 2BB bearing metal gear SPT5630 High Speed Digital 30kg coreless Drift Car servo
Brand:
SPT Servo
Potentiometer:
Mechanics
Motor:
Coreless
Voltage Range:
4.8V/6.0V/8.4V
Neutral Point:
1500μs
Signal Frequency:
330Hz
PWM Voltage:
3.3V-5.0V
PWM Voltage:
3.3V-5.0V
Feedback Angle:
No
Operating Temperature:
-10℃-50℃
Cycle:
20ms
Dead band:
1μs
Default Direction:
CCW
Yes / no Lock:
Lock
Remote control Angle:
90°
500-2500μs Angle:
/° / PWM
Quiescent Current:
10mAh
Rated Current:
1.5A
Blocking Current:
2.5A
Weight / Dimensions:
58g / 40.5*20*37.5mm
Output Gear:
Futaba 25T
Gear Material:
All Metal Gear

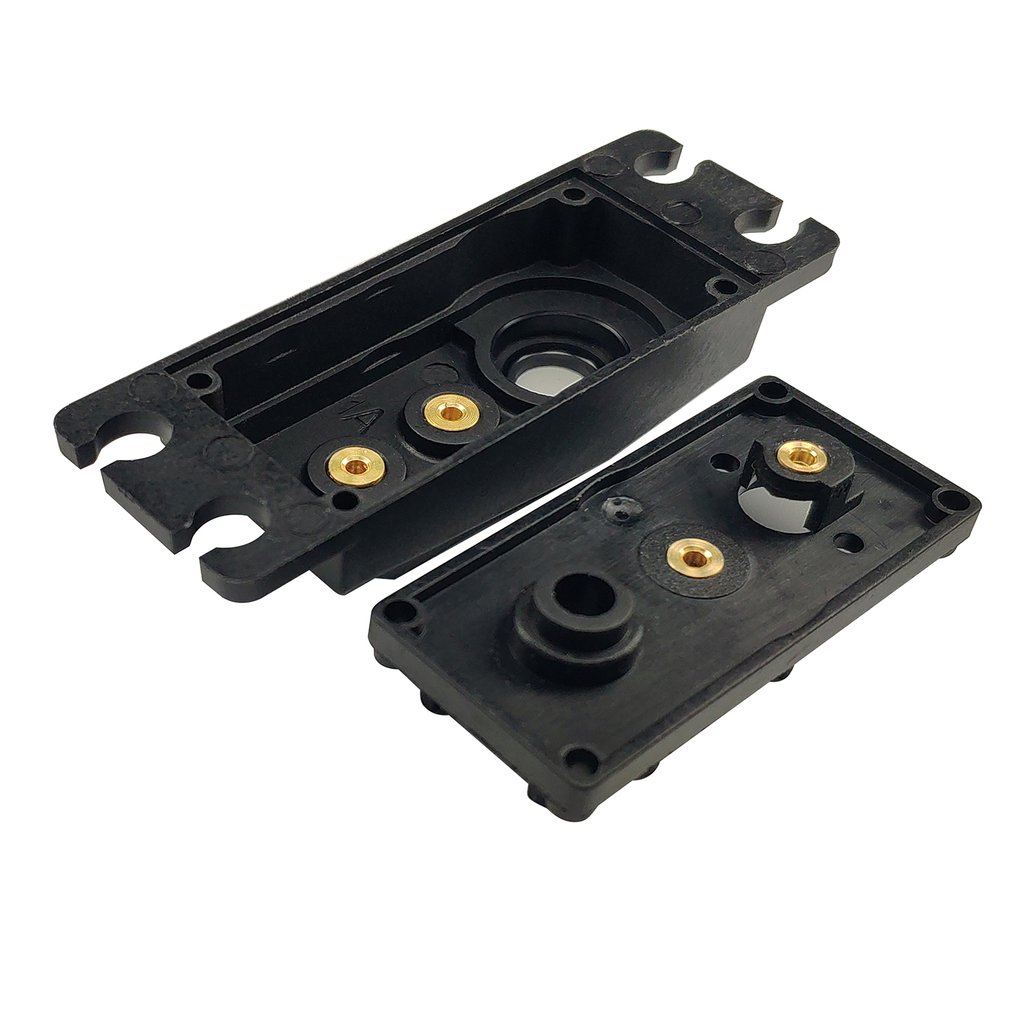

Shell Material:
Half Aluminum Shell
Bearing:
2BB
Connector Wire Length:
260MM
line Definition:
Brown-/Red+/Orange s
Operating Speed:
4.8V/0.18''/60°
6.0V/0.15 ''/60°
8.4V/ 0.11''/60°
Stall Torque:
4.8V/21 kg.cm
6.0V/26 kg.cm
8.4V/30 kg.cm

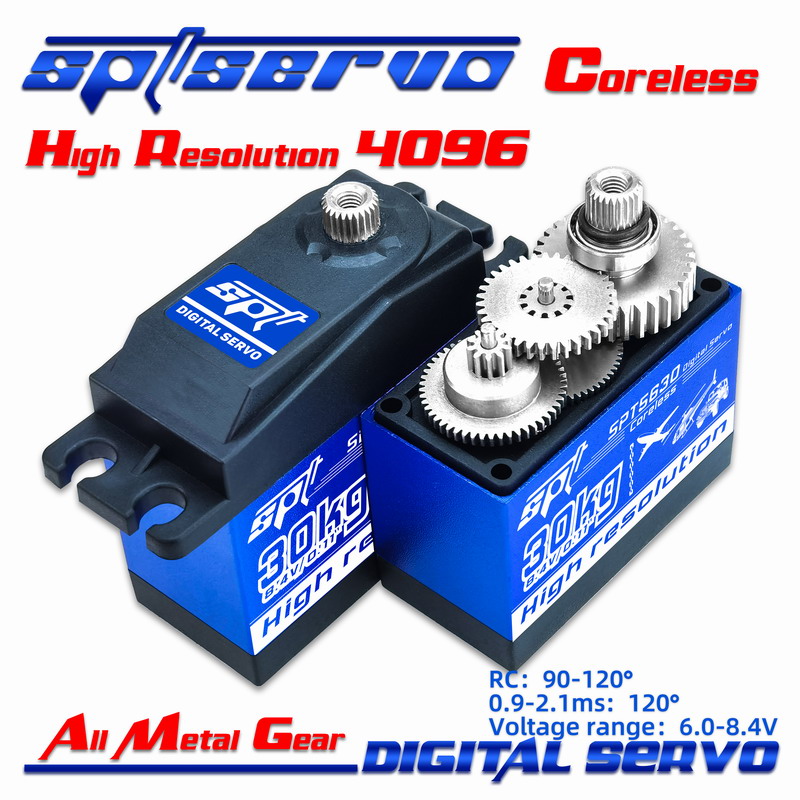

High resolution: with 4096 resolution, the speed is significantly improved, more delicate, and the control is more accurate, but there will be (squeak...)
Features:
1. It is made of good-quality material, which is durable.
2. This digital servo is applicable for bigfoot, SUV, climbing car.
3. This digital servo has long service life and easy to use.
Description:
With light weight and portable size, it is easy and convenient to carry and use.
Specifications:
Potentiometer: Mechanics
Motor: Coreless
Voltage Range: 4.8V / 6.0V/8.4V
Signal Frequency: 330HZ
PWM Voltage: 3.3V-5. 0V
Feedback Angle: no
Cycle: 20ms
Default Direction: CCW
Yes / no Lock: Lock
Remote control Angle: 90°
Quiescent Current :10mah
Rated Current :1.5A
Bing Current : 2.5A
Weight / Dimensions: 58g / 40.5*20*37.5mm
Output Gear: Futaba 25T
Gear Material: All Metal Gear
Shell Material: Half Aluminum Shell
Bearing: 2BB
Connector Wire Length : 260MM
line Definition: Brown- / Red + / Orange s
Operating Speed: 4.8V/0.18″/ 60° 6.0V/0.15″/ 60° 8.4V /0.11″/60°
Stall Torque: 4.8V/21KG.cm 6.0V/26kg.cm 8.4V/30KG.cm
Package Included:
Digital Servo * 1
