Kelly KBS mini Controller
- PRODUCT DETAIL

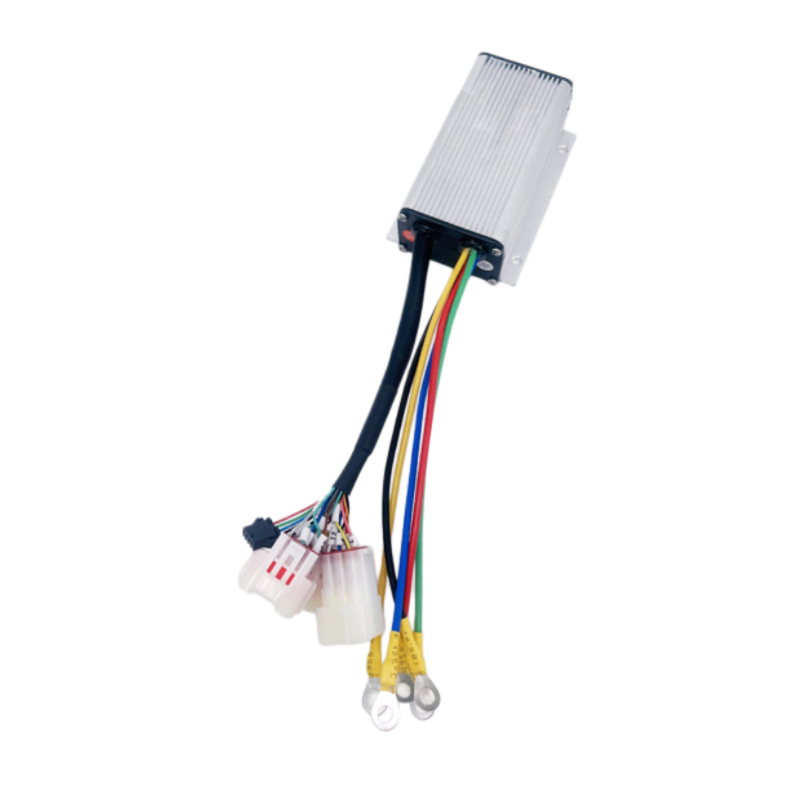

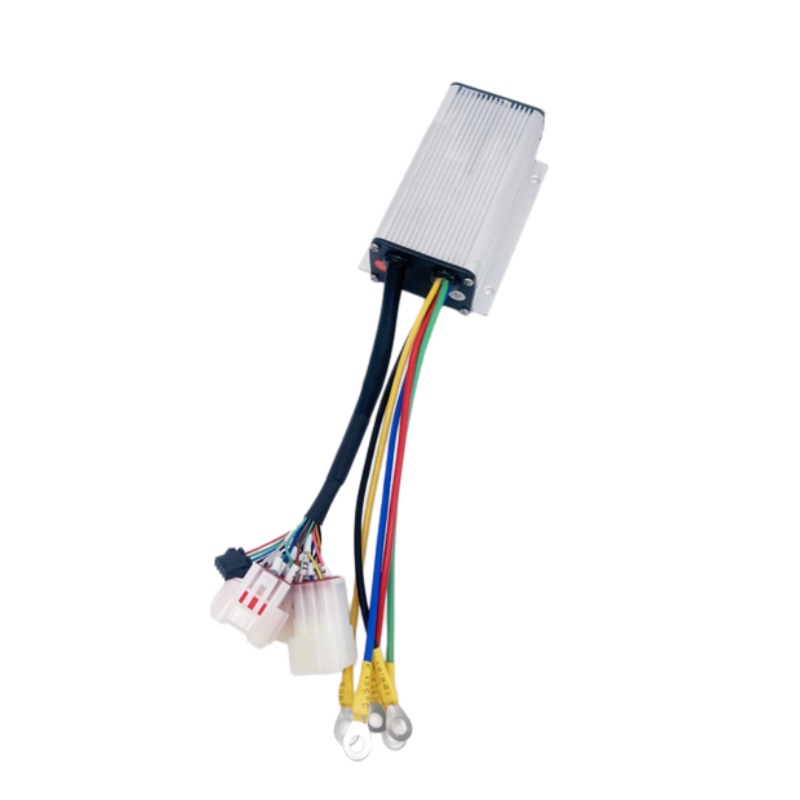

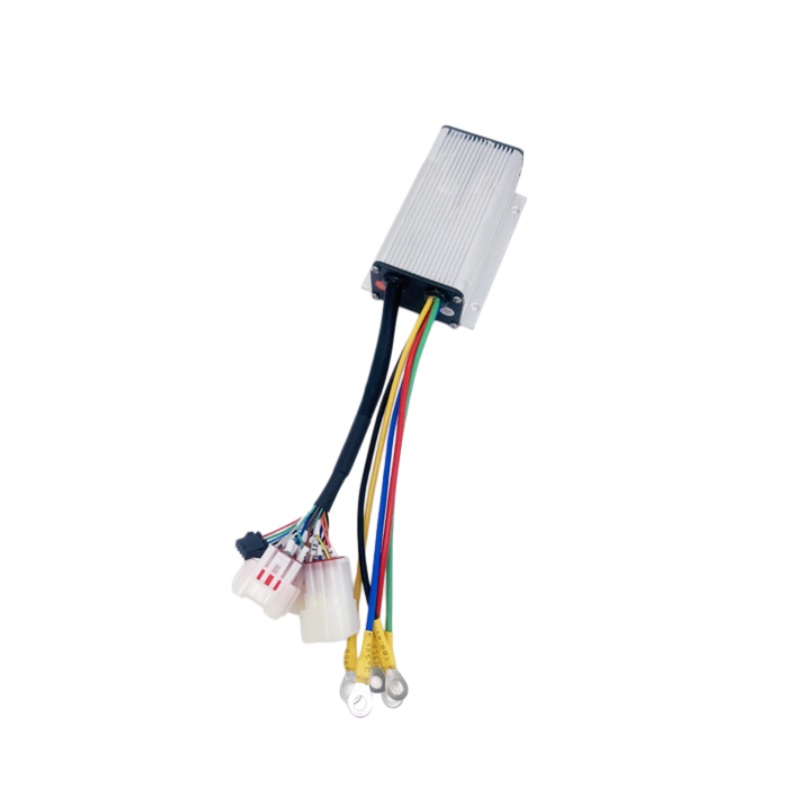

Cheetah mini KBS, light & flexible trapezoidal motor controllers (12V-72V) (60A-300A)
Category Brushless DC (BLDC) Motor Controllers (Legend)
Cheetah series, light &flexible Controllers,small size for easy installation.
Description
| Model | Nominal Voltage | Max Operating Voltage | 1 Minute Boost Current | Continuous Current |
|---|---|---|---|---|
| KBS24051X | 12-24V | 35V | 60A | 30A |
| KBS24121X | 12-24V | 35V | 130A | 55A |
| KBS48051X | 24-48V | 62V | 60A | 30A |
| KBS48121X | 24-48V | 62V | 130A | 55A |
| KBS48181E | 24-48V | 62V | 200A | 90A |
| KBS72051X | 24-72V | 86V | 60A | 30A |
| KBS72121X | 24-72V | 86V | 130A | 55A |
| KBS72181E | 24-72V | 86V | 200A | 90A |

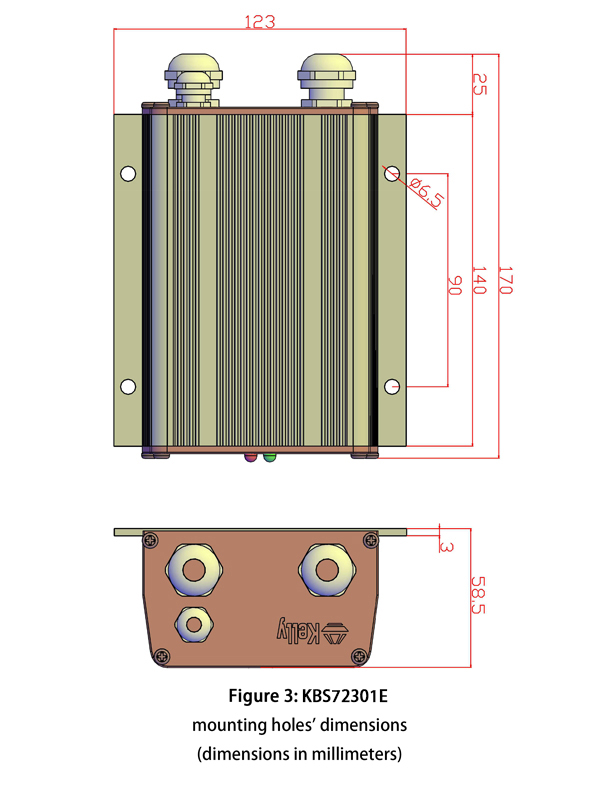

| KBS72301E | 24-72V | 86V | 300A | 120A |

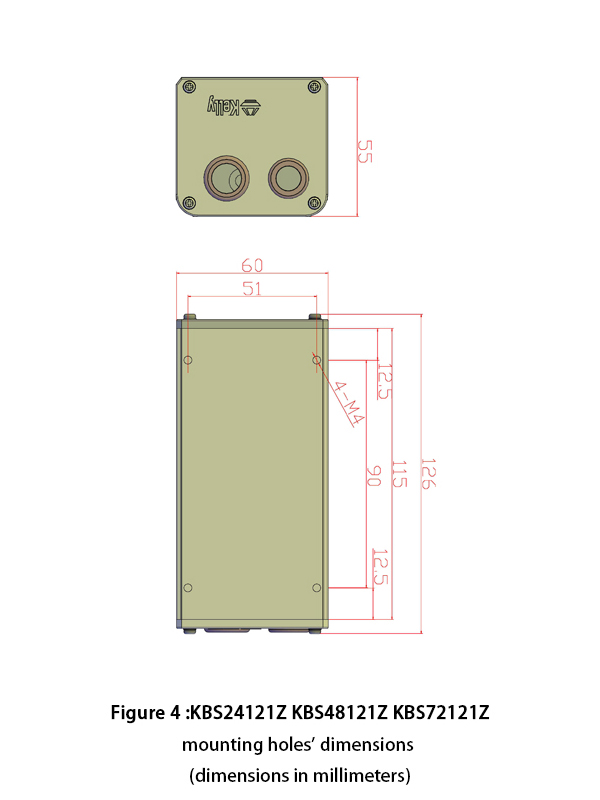

| KBS24121Z | 12-24V | 35V | 130A | 75A |
| KBS48121Z | 24-48V | 62V | 130A | 75A |

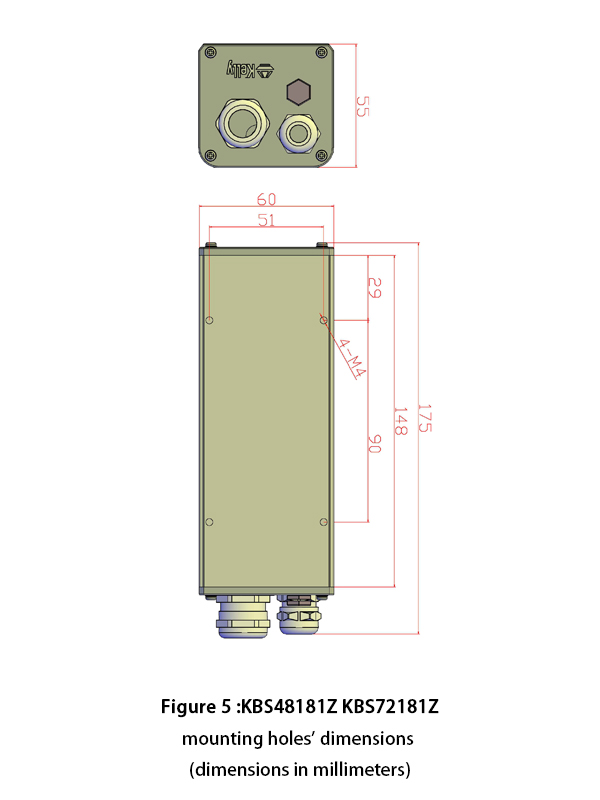

| KBS48181Z | 24-48V | 62V | 200A | 100A |
| KBS72121Z | 24-72V | 86V | 130A | 75A |
| KBS72181Z | 24-72V | 86V | 200A | 100A |

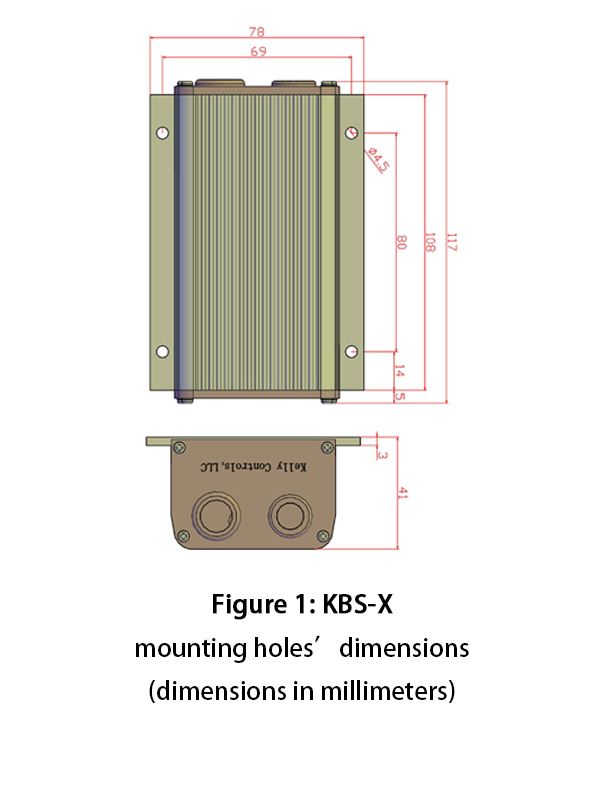

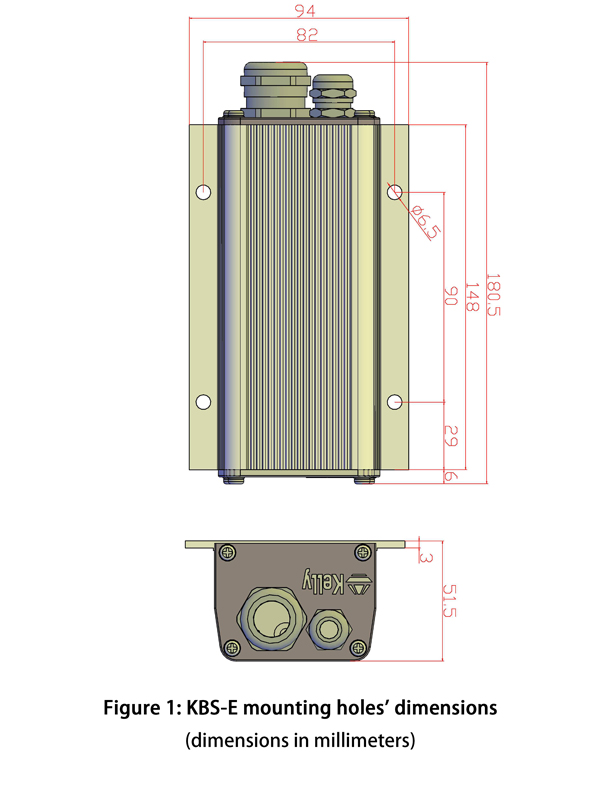

KBS-X: The enhanced version of KBS-E.

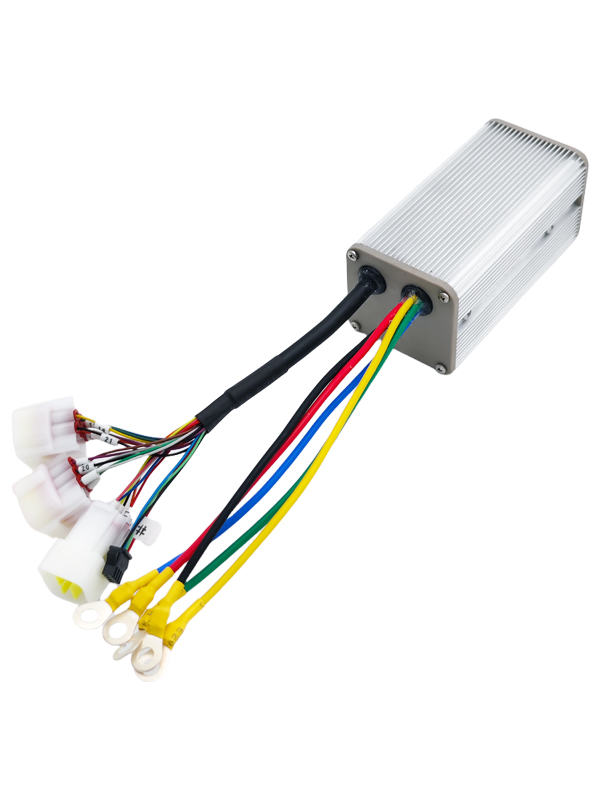

KBS-Z: Based on KBS-E and KBS-X series , equiped with more compact and improved housing which provides higher continuous current.
Male or female connectors that matching the controller are included.
Features:
- Intelligence with powerful microprocessor.
- Synchronous rectification, ultra low drop, fast PWM to achieve very high efficiency.
- Electronic reversing.
- Voltage monitoring on 3 motor phases, bus, and power supply.
- Voltage monitoring on voltage source 12V and 5V.
- Current sense on all 3 motor phases.
- Current control loop.
- Hardware over current protection.
- Hardware over voltage protection.
- Configurable limit for motor current and battery current.
- Support torque mode, speed mode, and balanced mode operation.
- Low EMC.
- LED fault code.
- Battery protection: current cutback, warning and shutdown at configurable high and low battery voltage.
- Rugged aluminum housing for maximum heat dissipation and harsh environment.
- Rugged high current terminals, and rugged aviation connectors for small signal.
- Thermal protection: current cut back, warning and shutdown on high temperature.
- Configurable 60 degree or 120 degree hall position sensors.
- Support motors with any number of poles.
- Up to 40,000 electric RPM standard.
- Support three modes of regenerative braking: brake switch regen, release throttle regen, 0-5V analog signal variable regen.
- Configurable high pedal protection: the controller will not work if high throttle is detected at power on.
- Current multiplication: Take less current from battery, output more current to motor.
- Easy installation: 3-wire potentiometer will work.
- Standard PC/Laptop computer to do programming. No special tools needed.
- User program provided. Easy to use. No cost to customers.
General Specifications:
- Frequency of Operation: 16.6kHz.
- Standby Battery Current: < 0.5mA.
- 5V Sensor Supply Current: 40mA.
- Analog Brake and Throttle Input: 0-5 Volts. Can use 3-wire pot to produce 0-5V signal.
- Reverse Alarm, Meter: <200mA. Main Contactor Coil Driver<2A.
- Full Power Operating Temperature Range: 0℃ to 70℃ (MOSFET temperature).
- Operating Temperature Range: -40℃ to 100℃, (MOSFET temperature).
- Max Battery Current: Configurable.
