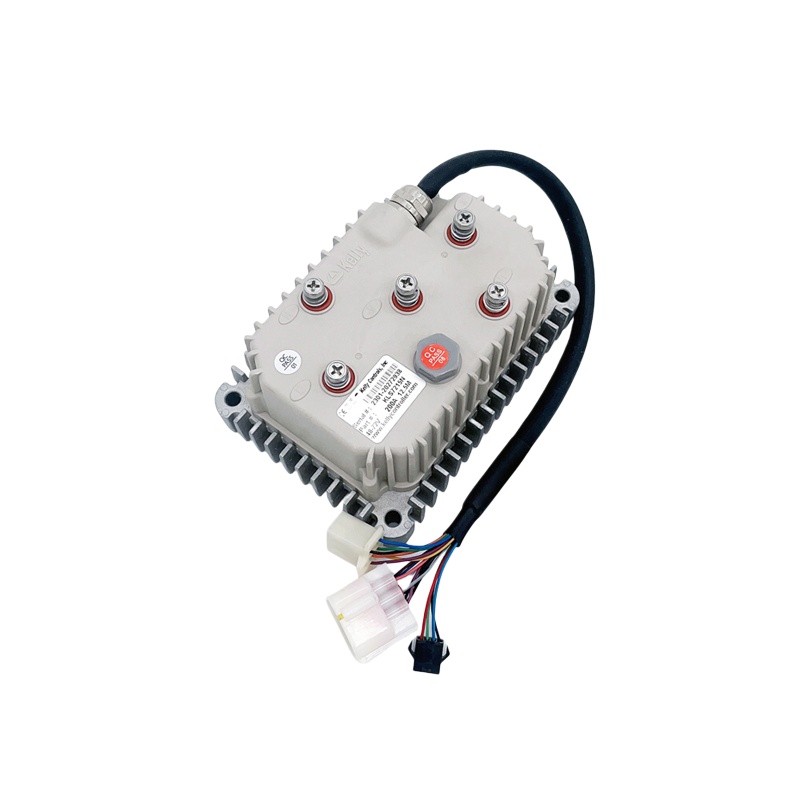

Jaguar series, modest size & all around Motor Controllers (12V-96V) (160A-450A)

Kelly Motor Controllers, Sinusoidal&Trapezoidal BLDC/PMSM Controller

Jaguar series, modest size & all around motor controllers,minimum overshoot, nice waveform.
Features surface mount MOSFETs on an aluminum PCB for superior heat dissipation.
IP66 rated waterproof controller by default.

Description

Trapezoidal Model	Sinusoidal Model	Nominal Voltage	Max Operating Voltage	Peak Current** 1 Minute	Continuous Current

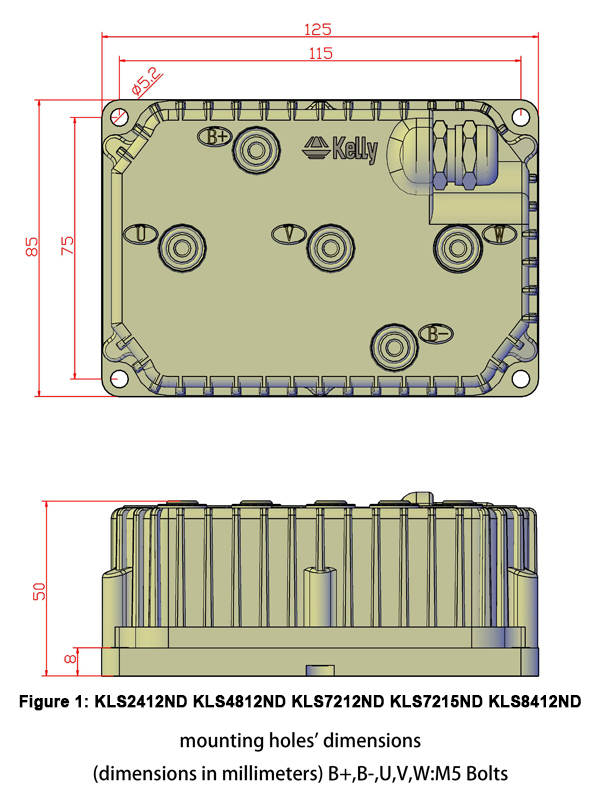

KVD2412ND	KLS2412ND	12-24V	9-35V	160A	up to 100A*
KVD2412N	KLS2412N	12-24V	9-35V	160A	60A-100A

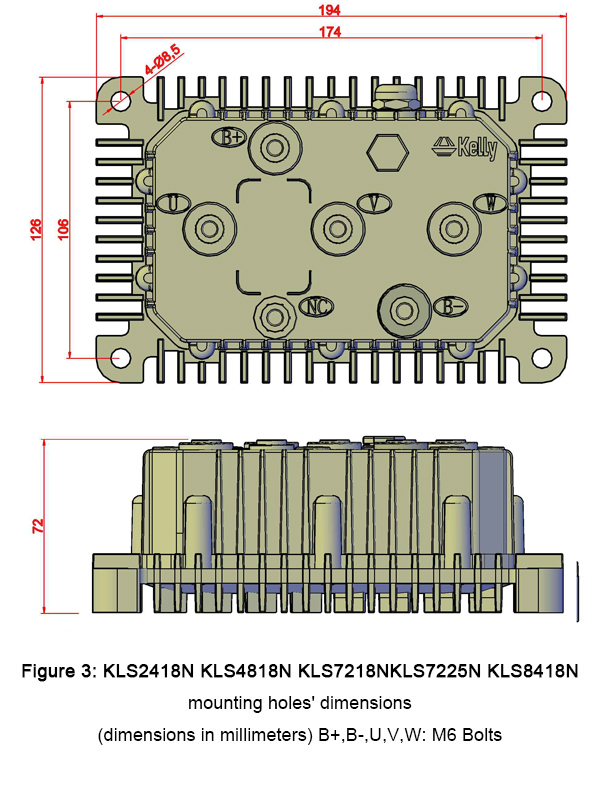

KVD2418N	KLS2418N	12-24V	9-35V	240A	80A-130A

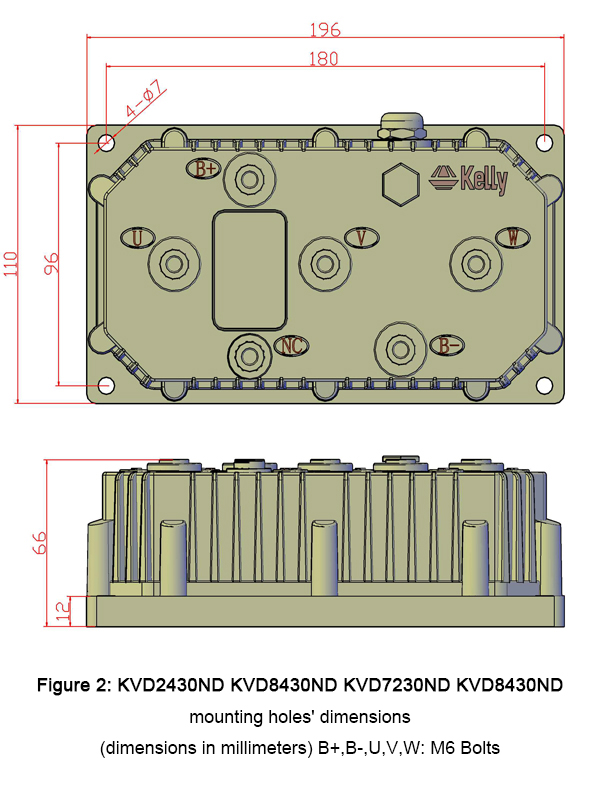

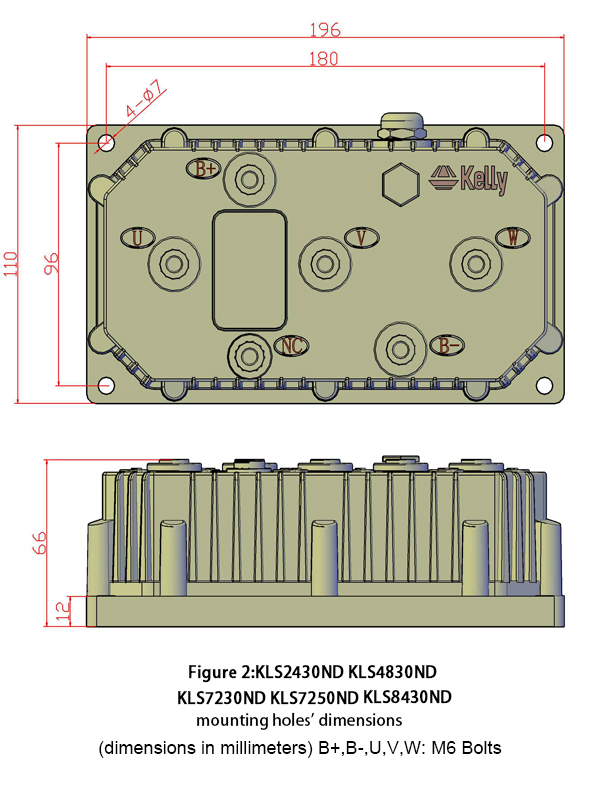

KVD2430ND	KLS2430ND	12-24V	9-35V	280A	up to 160A*

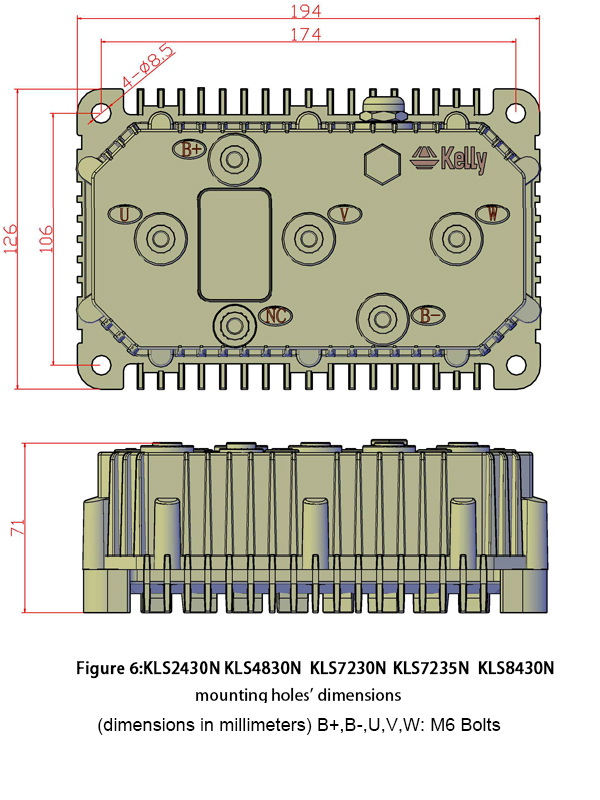

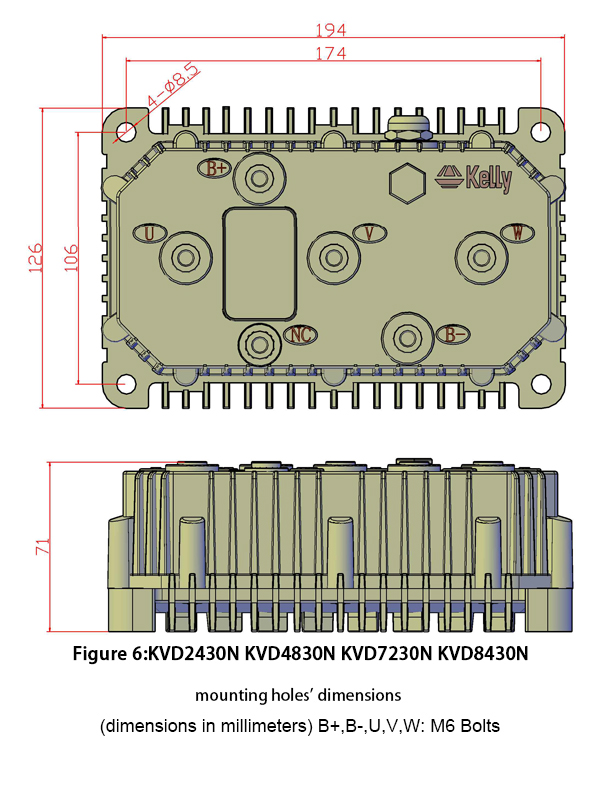

KVD2430N	KLS2430N	12-24V	9-35V	280A	90A-150A
KVD4812ND	KLS4812ND	36-48V	27-62V	160A	up to 100A*
KVD4812N	KLS4812N	36-48V	27-62V	160A	60A-100A
KVD4818N	KLS4818N	36-48V	27-62V	240A	80A -130A
KVD4830ND	KLS4830ND	36-48V	27-62V	280A	up to 160A*
KVD4830N	KLS4830N	36-48V	27-62V	280A	90A-150A
KVD7212ND	KLS7212ND	48-72V	36-86V	160A	up to 100A*
KVD7212N	KLS7212N	48-72V	36-86V	160A	50A-90A
KVD7215ND	KLS7215ND	48-72V	36-86V	200A	up to 110A*
KVD7215N	KLS7215N	48-72V	36-86V	200A	60A-110A
KVD7218N	KLS7218N	48-72V	36-86V	240A	80A-120A
KVD7225N	KLS7225N	48-72V	36-86V	260A	90A-130A
KVD7230ND	KLS7230ND	48-72V	36-86V	280A	up to 150A*
KVD7230N	KLS7230N	48-72V	36-86V	280A	90A-140A
KVD7235N	KLS7235N	48-72V	36-86V	320A	100A-160A

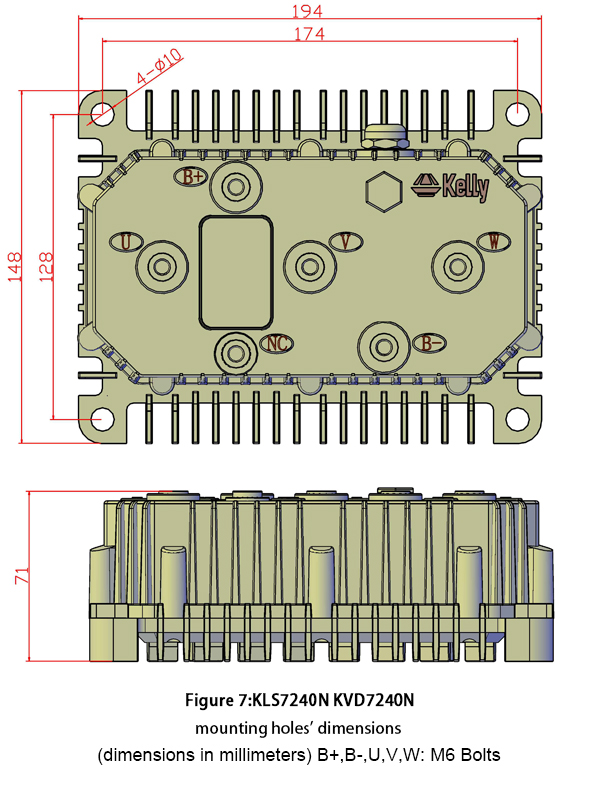

KVD7240N	KLS7240N	48-72V	36-86V	340A	105A-170A
N/A	KLS7250ND	48-72V	36-86V	360A	up to 190A*

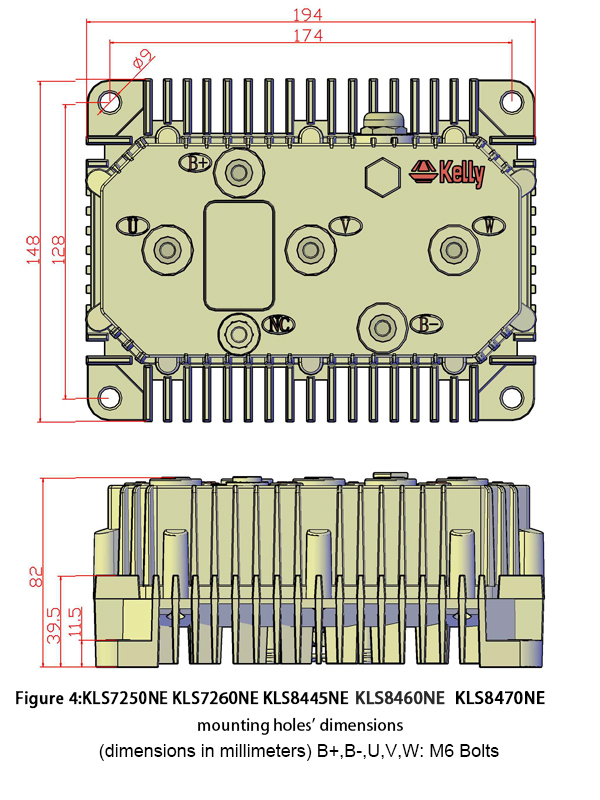

N/A	KLS7250NE	48-72V	36-86V	360A	110A-180A
N/A	KLS7260NE	48-72V	36-86V	400A	130A-200A

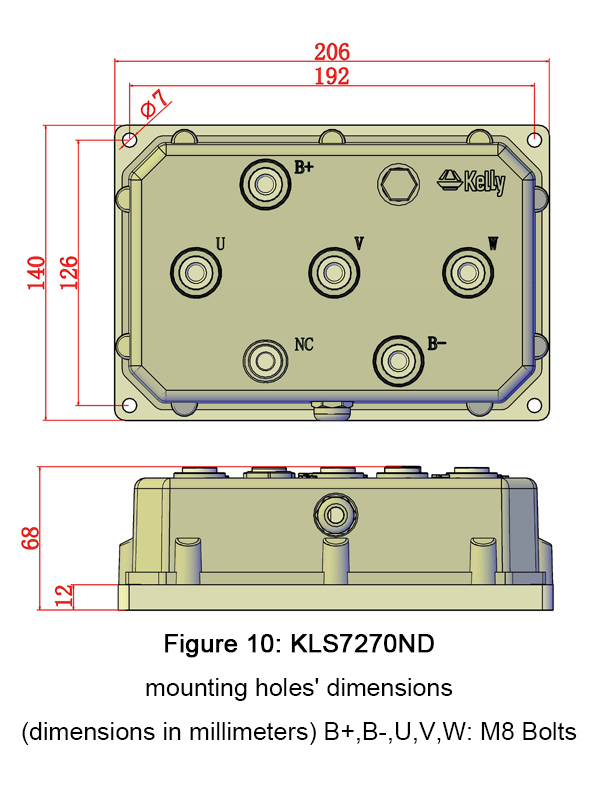

N/A	KLS7270ND	48-72V	36-86V	450A	up to 225A*

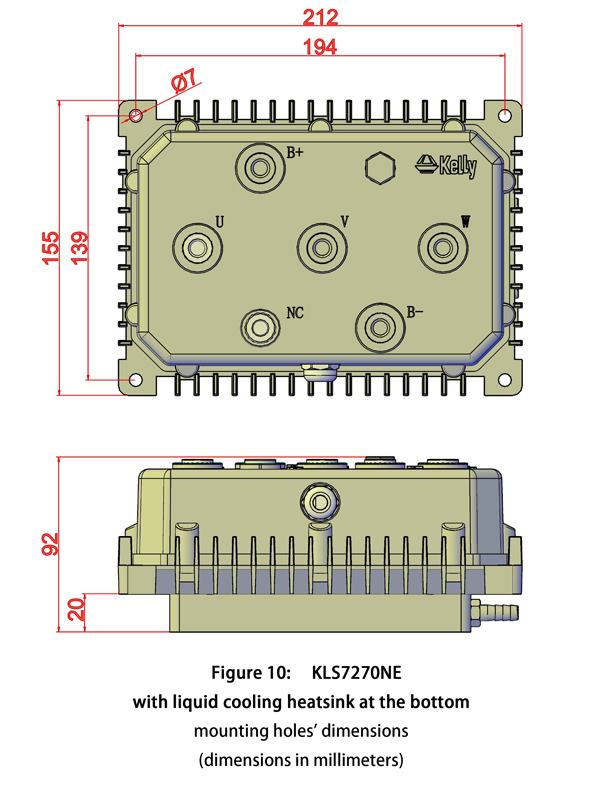

N/A	KLS7270NE	48-72V	36-86V	450A	150A-225A
KVD8412ND	KLS8412ND	48-84V	36-100V	160A	up to 100A*
KVD8412N	KLS8412N	48-84V	36-100V	160A	50A-90A
KVD8418N	KLS8418N	48-84V	36-100V	240A	80A-120A
KVD8430ND	KLS8430ND	48-84V	36-100V	280A	up to 150A*
KVD8430N	KLS8430N	48-84V	36-100V	280A	90A-140A

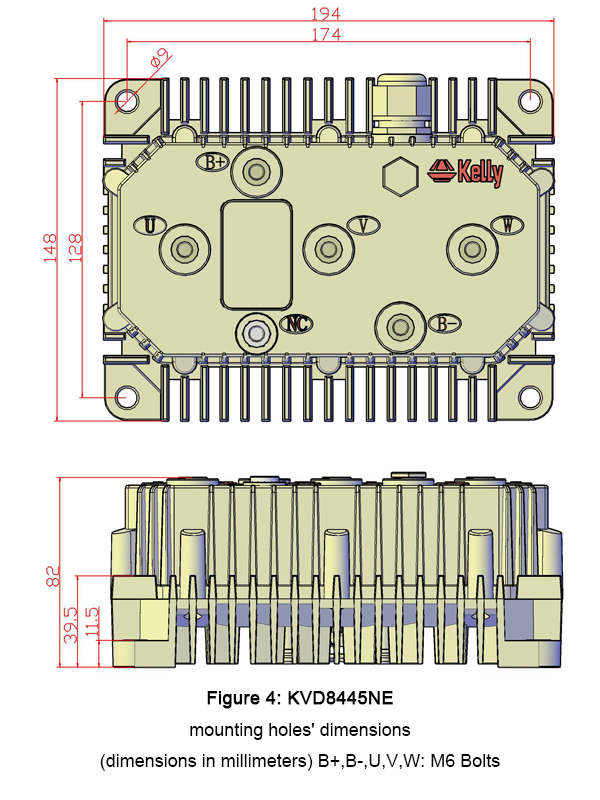

KVD8445NE	KLS8445NE	48-84V	36-100V	320A	100A-160A
N/A	KLS9650NE	48-96V	36-120V	280A	85A-140A
Note: *Depends on conductive heat sink. **Peak current can be prolonged with additional heat sink, easily over 2 minutes.

General functions:

Extended fault detection and protection functions. Customers can view error information via PC software or Android application.
Constant monitoring of battery voltage. If the battery voltage is too high, the controller will stop driving. When the battery voltage is too low, the controller will gradually reduce the motor drive power as the battery voltage drops. The controller will also stop driving when the battery voltage reaches the preset “low battery voltage” threshold.
Built-in current loop and over current protection.
Configurable motor temperature protection range.
Low and high temperature current reduction function to protect the battery and controller. The current begins to decrease when the case temperature reaches 90°C and shuts down completely at 100°C.
During regenerative braking, the controller continuously monitors the battery charge voltage.
The maximum reverse speed and forward speed can be configured between 20% and 100% respectively.
The controller can be programmed and configured using the user program or Android app. For PC, please use Kelly USB cable or USB-RS232 converter to connect the controller and PC, and then you can use the user program. For Android, please use the Bluetooth Adapter purchased from us to connect the controller, and then use the configuration app on your Android device.
+5 V and +12 V outputs are provided to power various Hall sensors and switches.
Multiple switch inputs. By default, the switch input is valid when it is 12 V.
3 analog inputs (signal range is 0-5 V), which are throttle analog input, brake analog input and motor temperature input by default.
The controller replicates the A-phase Hall sensor pulse signal for the pulse speedometer.
Configurable boost function. When the boost switch is turned on, the motor will get the maximum output power. Regardless of the throttle position, the effect is the same as full throttle.
Configurable joystick throttle. Both forward and reverse directions support dual symmetrical 0–5 V signals.
Configurable motor over-temperature detection and protection, recommended thermistor KTY84-130/150 or KTY83-122.
Only supports three-phase Hall position sensors. Open collector and pull-up resistors are provided.
In brake analog regeneration mode, the controller requires another analog input as brake input.
Enhanced regenerative braking function. Innovative ABS technology provides strong and smooth regeneration. Regeneration function can be activated at any speed.
Cruise control. Can only be activated when driving in forward direction.
Support Bluetooth. Bluetooth Adapter is required and needs to be purchased separately from our website. This adapter is only suitable for KLS controllers.
Support user-defined serial port communication.
CAN bus (optional), broadcast type, baud rate can be customized (default 250Khz). KLS-N controller does not include CAN bus by default.
Bidirectional anti-slip function (Optional), prevent the stationary vehicle from moving in the opposite direction. When this function is enabled, the controller detects if the motor starts turning in the opposite direction from a stationary state and applies braking force to stop or slow down the vehicle.The braking force can be set as needed.
Pedal assist system (optional) to provide assistance when the rider pedals.
Electromagnetic brake (optional).
Field weakening function (optional), to increase the max speed.
Anti-theft function (optional), requires an external alarm.
Built-in DC/DC module(Optional), to power external devices (13.5 V, 2A)
Other user-defined customizable functions.
Features:

Intelligent control powered by a high-performance microprocessor.
Synchronous rectification, ultra-low voltage drop, fast SVPWM, and FOC for maximum efficiency.
Electronic commutation.
Monitoring of motor three phases, power bus, and supply voltage.
Monitoring of 12 V and 5 V voltage sources.
Detection of current in all three motor phases.
Current control loop for precise motor control.
Hardware overcurrent protection.
Hardware overvoltage protection.
Configurable limits for motor current and battery current.
Low EMC.
Battery protection with configurable current reduction, warnings, and shutdown at high or low voltage levels.
PCB mounted on an aluminum base plate with a heatsink integrated into the bottom of the controller.
Various connector sets supporting small signals; waterproof connector set provided by default.
Thermal protection: automatic current reduction, warnings, and shutdown at high temperatures.
Automatic identification of Hall sensors mounted at any angle.
Configurable high-throttle protection: prevents operation if a high throttle signal is detected at startup.
Current multiplication: draws less current from the battery while delivering higher current to the motor.
Easy installation: operates with only a 3-wire potentiometer.
Programming via standard PC or laptop; user program provided free of charge and easy to use.
Supports motors with any number of poles.
Supports electrical speeds up to 70,000 eRPM (electrical speed = mechanical speed × number of pole pairs; pole pairs = number of poles ÷ 2).
Dustproof and waterproof under sealed conditions (IP66 rating).
General Specifications:

Frequency of operation: 10 kHz, 16 kHz, 20 kHz (selectable).
Standby battery current: < 0.5 mA.
5 V or 12 V sensor supply current: 40 mA max.
Supply (PWR) current: 30 mA (typical).
Battery voltage (B+) range: configurable.
Standard throttle input: 0–5 V (3-wire resistive potentiometer) or 1–4 V (active Hall throttle).
Full-power operating temperature range: 0 °C to 70 °C (MOSFET temperature).
Operating temperature range: −40 °C to 100 °C (MOSFET temperature).
Maximum battery current: configurable.
Maximum motor current: configurable.
