SPT4418HV
- PRODUCT DETAIL

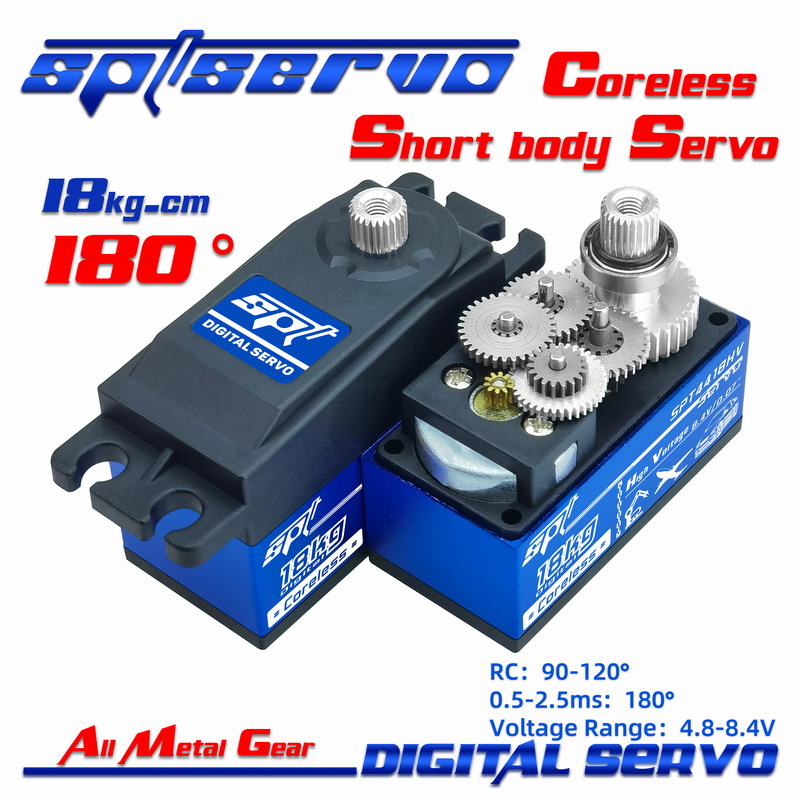

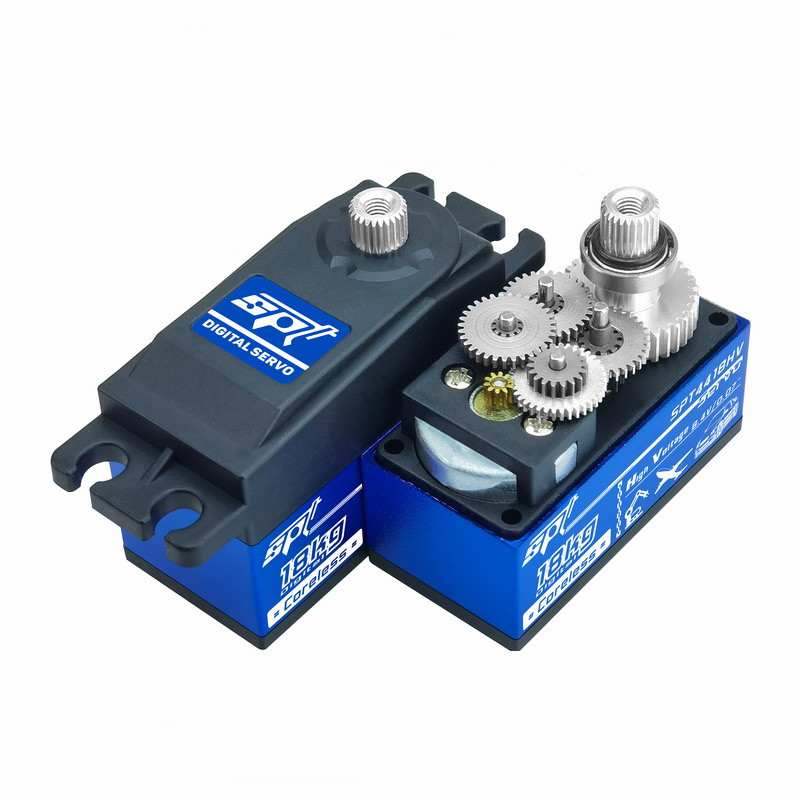

SPT4418HV 18kg Maximum angle 180° Digital Coreless servo for aircraft
Brand:
SPT Servo
Potentiometer:
Mechanics
Motor:
Coreless
Voltage Range:
4.8V/6.0V/8.4V
Neutral Point:
1500μs
Signal Frequency:
330Hz
PWM Voltage:
3.3V-5.0V
PWM Voltage:
3.3V-5.0V
Feedback Angle:
No
Operating Temperature:
-10℃-50℃
Cycle:
20ms
Dead band:
2μs
Default Direction:
CCW
Yes / no Lock:
Lock
Remote control Angle:
90°
500-2500μs Angle:
180° / PWM
Quiescent Current:
10mAh
Rated Current:
1.2A
Blocking Current:
2.5A
Weight / Dimensions:
55g / 40*20*28.3mm
Output Gear:
Futaba 25T
Gear Material:
All Metal Gear
Shell Material:
Half Aluminum Shell
Bearing:
2BB
Connector Wire Length:
260MM
line Definition:
Brown-/Red+/Orange s
Operating Speed:
/
6.0V/0.09 ''/60°
8.4V/0.07 ''/60°
Stall Torque:
/
6.0V/14 kg.cm
8.4V/18 kg.cm
Features:
This servo has a slow start function: it is difficult for the naked eye to see that, the current is relatively large at the moment of starting or reversing of the servo. With this function, the service life of the servo is relatively long.
Blocking protection function: when the servo is blocked continuously or the blocking angle is greater than 3 degrees, lasts for 10 seconds and the current remains at 2.0A or above, the servo starts protection, and the current will fall to the standby state. After the blocking is removed, the servo will return to normal under the arbitrary rotation of the remote control.
Application: 1:10 remote control vehicle, steering or fixed wing Aircraft, remote control boat, etc
