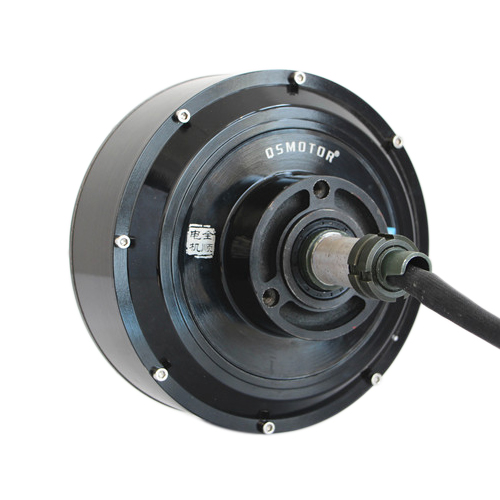

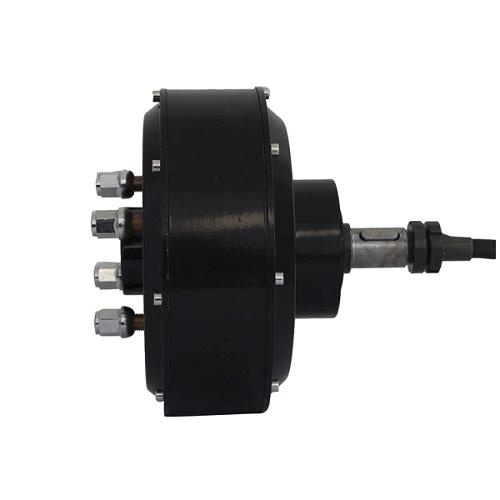

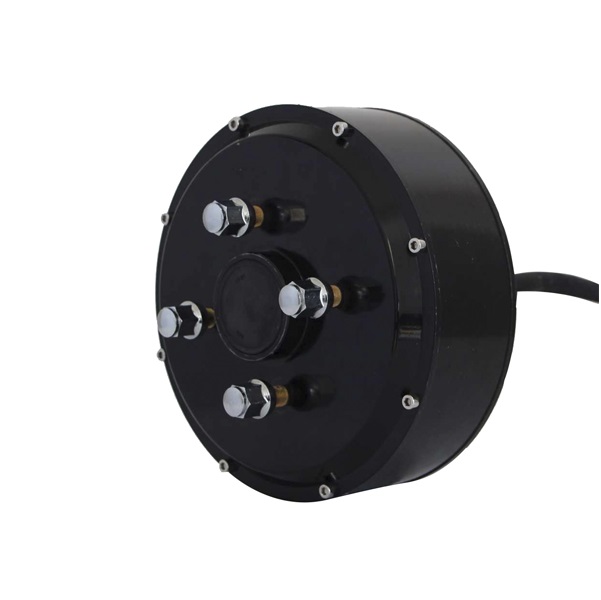

205 Single Shaft Car Hub Motor(50H) 3000W V2 Type

205 Single Shaft Car Hub Motor specially designed for Electric tricycle or 4-wheel electric vehicles, the rated power can be made 1500W,2000W OR 3000W for options.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. Motor design: Single axle out without rim
3. PCD for rim installation: 4 x100mm
4. CB:60MM
5. Magnet:50H
6. of Pole Pairs: 23 pairs
7. Rated Power: 3000W V2
8. Peak Power: 5000W
9. Rated Voltage: 72V( 48-96V Can be optional)
10. Speed: 70km/h (30-75km/h can be customized)
11. Max No-load RPM: 1000RPM
12. Max Torque: 170N.M
13. Max Efficiency: 88%
14. Continious current:45A
15. Max current:80A (Peak 100A in short time)
16. Brake type: Disc brake
17. Winding Holder material: Aluminium
18. Cross Section of Phase wire: 10 mm2
19. Hall sensor phasing angle: 120 degree
20. Temperature Sensor: Optional
21. Working Temperature: 70 degree, Peak 120 degree
22. Waterproof Grade: IP66
23. Color: Black or Silver
24. W./ G..W. : 15kgs / 16kgs
25. Package Size: 34*34*33CM
