D126L165
- PRODUCT DETAIL
Reacher D125L165 IP68 waterproof version 20kw brushless dc motor
Please Note:
IP68 fully waterproof motor must be completely immersed in water for use, so that the motor can work with complete heat dissipation.
If you need to use the motor in the water, please select the ip68 waterproof version.
If you need to use the motor in the air, please select the with watercooling jacket water-cooled version.
If the motor burnt due to the incorrect use there with no warranty!!!
| Reacher Tech D126L165 Inrunner IP68 waterproof bldc motor | |||||||
| www.reacherbrushless.com Contact Person: Sabrina Zhang Skype: sabrina.zhang919 Email: reachertech@foxmail.com Phone:0086 186 6801 7118 | |||||||
| Model No | D126L165-143 | D126L165-115 | D126L165-95 | D126L165-82 | D126L165-71 | D126L165-63 | D126L165-57 |
| Coil Turn | 2T-Y | 2.5T-Y | 3T-Y | 3.5T-Y | 4T-Y | 4.5T-Y | 5T-Y |
| Working Voltage Range | 8-14S (26-58.8V) | 10-18S (35-75.6V) | 10-22S (37-92.4V) | 14-25S (51.8-105V) | 14-28S (51.8-117.6V) | 14-32S (50-134.4V) | 14-36S (50-151.2V) |
| Max Spin Speed (No Load) (RPM) | 8408 | 8694 | 8778 | 8610 | 8349 | 8467 | 8618 |
| kV(RPM/V) | 143 | 115 | 95 | 82 | 71 | 63 | 57 |
| Kt(N*M/A) | 0.0812 | 0.1015 | 0.1218 | 0.1421 | 0.1624 | 0.1827 | 0.203 |
| No Load Current@8.4V (A) | 5.3 | 4.3 | 3.9 | 3.3 | 2.9 | 2.5 | 2.3 |
| Max Power（KW） | 45 | 46 | 36 | 45 | 45 | 45 | 45 |
| Peak current（A） | 720 | 580 | 480 | 410 | 360 | 320 | 290 |
| Effeciency | 89% | >89% | 92% | 91% | 91% | 91% | 91% |
| Max torque@60%(N*M) | 45 | 46 | 48 | 49 | 50 | 51 | 50 |
| Rating Power @80%(KW) | 21 | 21 | 22 | 22 | 23 | 23 | 22 |
| Rating Torque @80%(Nm) | 36 | 37 | 38 | 39 | 40 | 40 | 39 |
| Net Weight(KG) | 7.9 | 7.9 | 7.9 | 7.9 | 7.9 | 8 | 8 |
| Construction | 12N/10P | ||||||
| Cooling Method | Water Cooling | ||||||

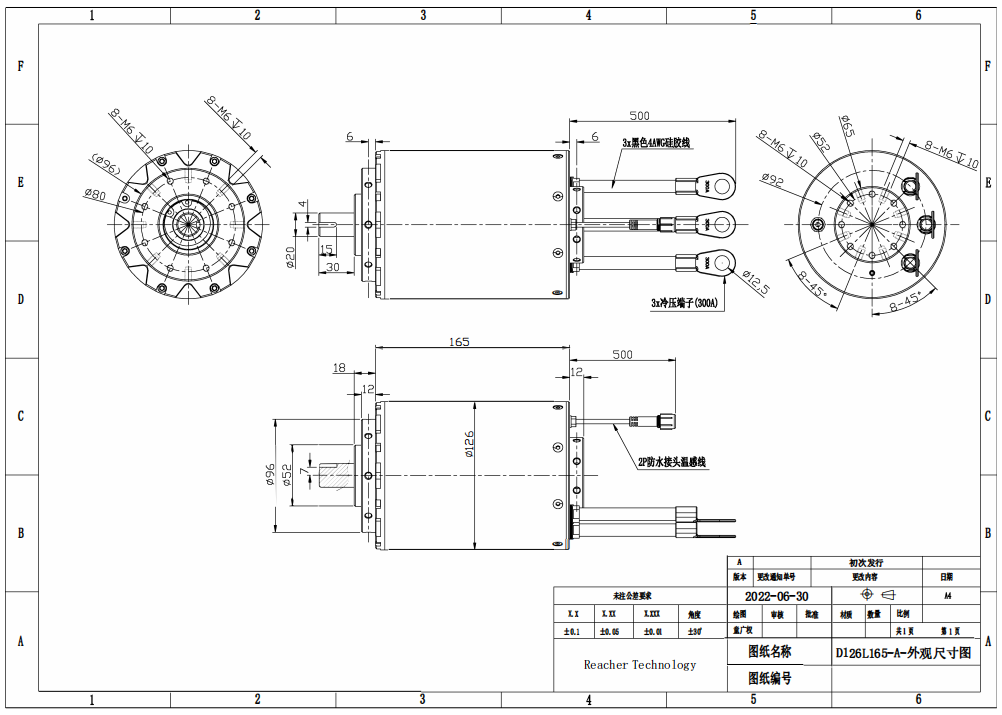

| Demension (mm) | D126*L165 | ||||||
| Max Working Temperature | 120︒C | ||||||
| Output Shaft dimention (mm) | D20*L30 | ||||||
| Wire Length (mm) | 2AWGx300mm | ||||||
| Connector | 10.0mm plug | ||||||
| Service Life | 8000H | ||||||
