D85L165S-WP
- PRODUCT DETAIL

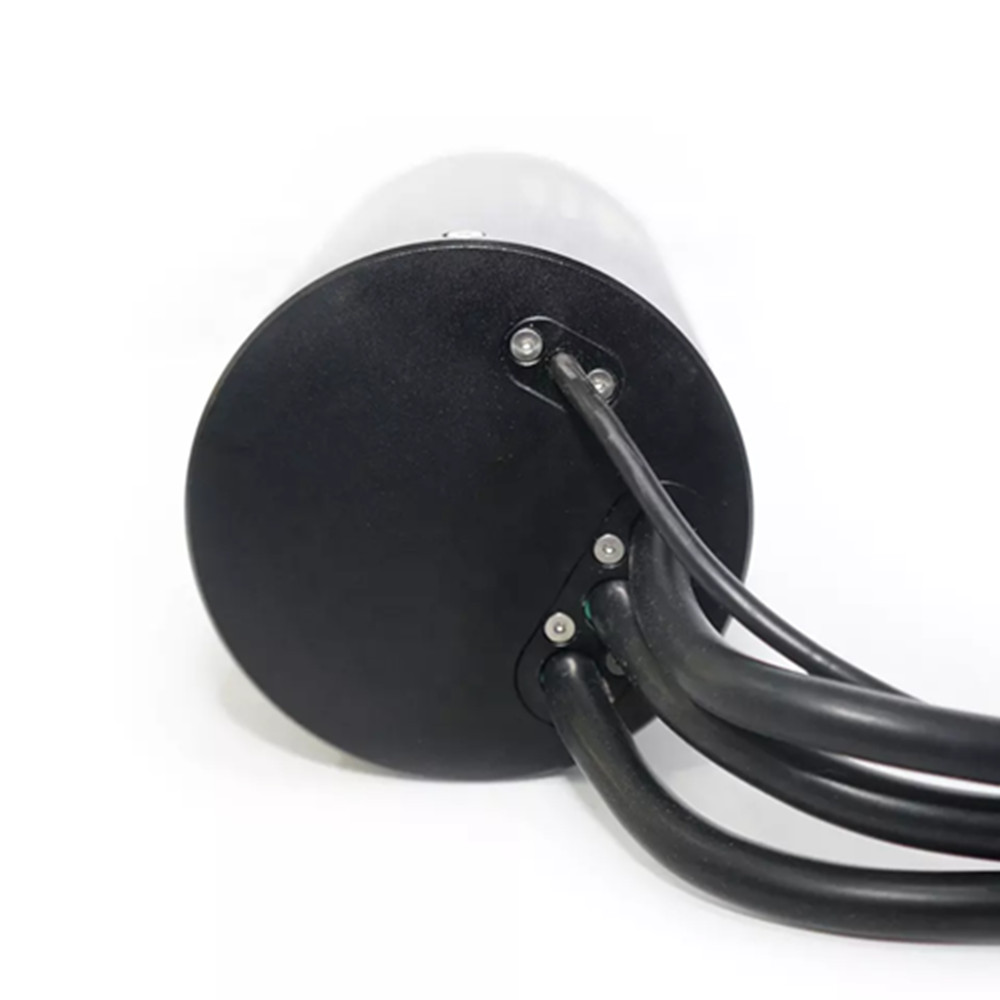

60V 10KW Brushless dc motor
Please Note:
IP68 fully waterproof motor must be completely immersed in water for use, so that the motor can work with complete heat dissipation.
If you need to use the motor in the air, please select the with watercooling jacket water-cooled version.
If the motor burnt due to the incorrect use there with no warranty!!!
Reacher Tech D85L165-WP IP68 waterproof Inner-runner Motor Specification
Model P/N
D85L165-240
D85L165-160
D85L165-143
D85L165-115
D85L165-95
D85L165-72
Turn
2T-D
3T-D
2T-Y
2.5T-Y
3T-Y
4T-Y
Voltage range (LiPo Cells)
6-12S
（20-50.4V）
8-16S
（28-67.2V）
6-18S
（20-75.6V）
12-22S
（38-92.4V）
12-28S
（40-117.6V）
18-36S
（60-151.2V）
Max Spin Speed(RPM)
12096
10752
10810
10810
11172
10886
Speed Constance kV(RPM/V)
240
160
143
115
95
72
Torque Constance Kt(N*M/A)
0.0666
0.1
0.1111
0.0904
0.1667
0.2222
8.4V No Load Current(A)
5.3
4.5
3.9
3
2. 5
2.1
Max Power（KW）
18.4
19
19.8
19.5
19.5
19
Peak current（A）
430
190
380
360
330
285
Max Effeciency
89%
90%
91%
91%
91.0%
92%
Max torque@60%(N*M)
25.3
24.8
26
26
26.8
27.5
Continuous working current（A)
250
220
185
150
125
95
Weight(KG)
3.87
3.8
3.9
3.9
3.85
3.76
Construction
12N/10P
Cooling Solution
Water cooling
Max working temperature
120︒C
Dimension(mm)
D85*L165
Shaft Output Size (mm)
D10*L30
Phase Wires Size (mm)
150±5MM
Connector
AC500V/10MA/3S
Service Life
10mm golden plug
Insulation voltage & leak current
10000h
