RT60L157
- PRODUCT DETAIL
Please Note:
IP68 fully waterproof motor must be completely immersed in water for use, so that the motor can work with complete heat dissipation.
If you need to use the motor in the air, please select the with watercooling jacket water-cooled version.
If the motor burnt due to the incorrect use there with no warranty!!!

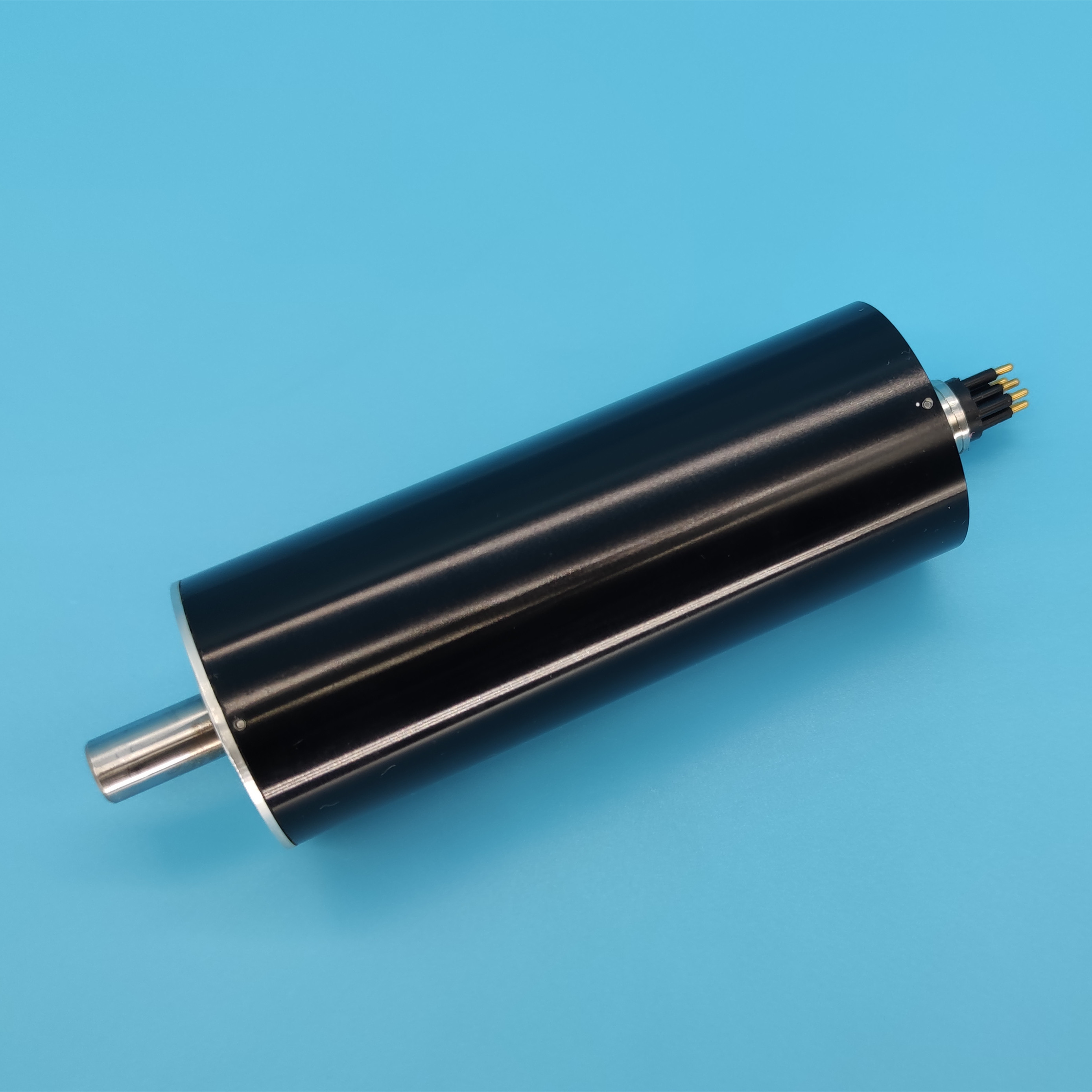

24V Rated 45Nm Underwater anti-corrosion robot motor
Submersible DC Brushless gear motor
Working Voltage: 24Vdc
No load speed : 9.5 rpm
Rated torque (with gearbox) : 45 N.m
Rated speed : 7.5 rpm
Max loading torque in short time (with gearbox) : 90 N.m
Max Power: 250W
Max Current: 10A
Waterproof Grade: IP68 100% waterproof
Connector: waterproof
Motor Diameter 50mm
Motor Length 55mm
Gear Box Model 56GX
Gear Box Ratio: 1:326
Finished Product size:
Diameter 60mm
Length 157.2mm
Not including the output conenctor size
IP68 fully waterproof motor must be completely immersed in water for use, so that the motor can work with complete heat dissipation.
If you need to use the motor in the air, please select the with watercooling jacket water-cooled version.
If the motor burnt due to the incorrect use there with no warranty!!!
24V Rated 45Nm Underwater anti-corrosion robot motor
Submersible DC Brushless gear motor
Working Voltage: 24Vdc
No load speed : 9.5 rpm
Rated torque (with gearbox) : 45 N.m
Rated speed : 7.5 rpm
Max loading torque in short time (with gearbox) : 90 N.m
Max Power: 250W
Max Current: 10A
Waterproof Grade: IP68 100% waterproof
Connector: waterproof
Motor Diameter 50mm
Motor Length 55mm
Gear Box Model 56GX
Gear Box Ratio: 1:326
Finished Product size:
Diameter 60mm
Length 157.2mm
Not including the output conenctor size
