6395 V5.0
- PRODUCT DETAIL
Reacher 6395N45UH Grade Curved Magnet dustproof battle hardened ESK8 Skateboard BLDC Motor
Model No
Reacher 6395N45UH Grade Curved Magnet Dustproof Battle Hardened ESK8 Skateboard BLDC Motor
Construction
12N14P
Motor Diameter (mm)
63mm
Motor Length (mm)
95mm
Stator Size (mm)
53*60mm
Stator Silicon steel sheets (mm)
0.2mm
Magnet
N45UH Curved Magnets,With retaining ring at the top of the magnet
Battle hardened
Everything (magnets, stator, sensor pcb)
Bearing
NMB Brand, Quad bearing design
Rotor Steel Thickness
2.5mm steel (better protection from impacts, improves magnetic flux path)
Balancing
Balanced for high RPM (higher than rated voltage can be used if you have enough gear reduction)
Shaft
8mm shaft with keyway (10mm optional,check before order)

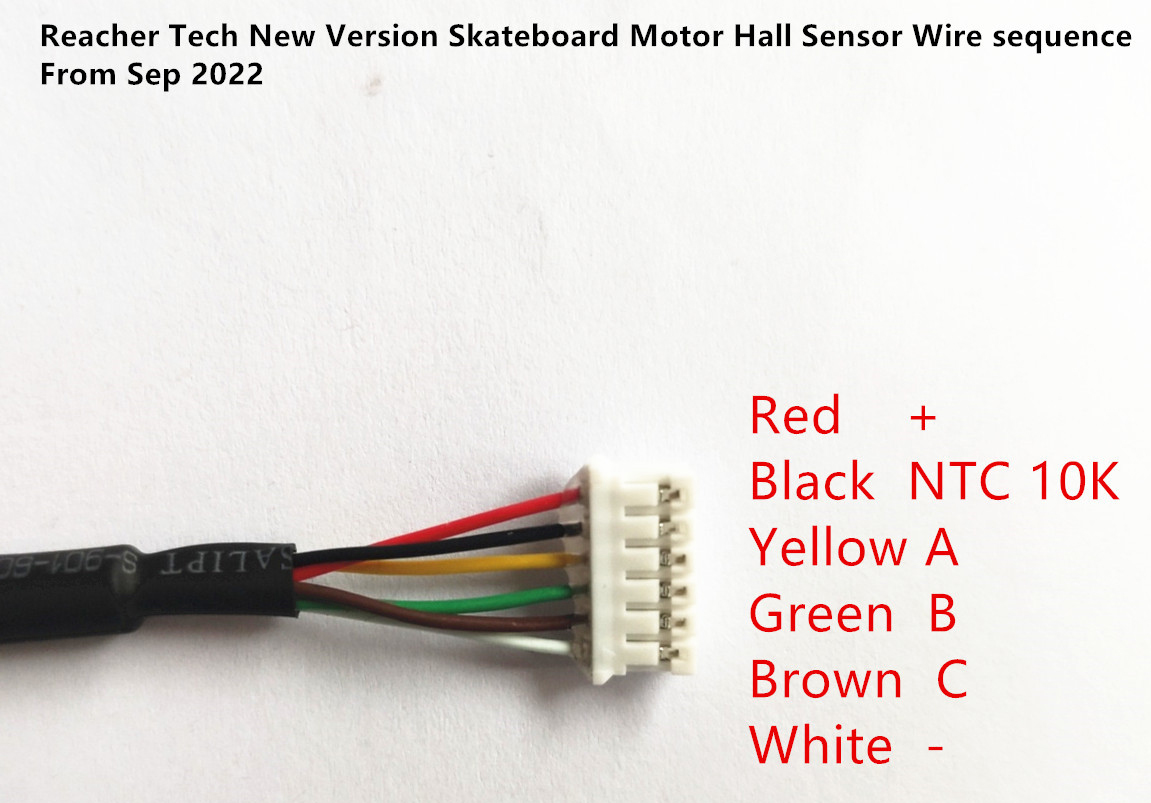

Hall Sensor
Honeywell SS41F with 100nf capacitor
Sensor
Hall + temperature sensor, vesc compatible plug (30cm), Sensor PCB next to phase wire exits
Wires
12awg silicone phase wires (30cm) with 4mm bullets
Mounting Pattern
44mm x M4
Net Weight
1.3kg
Reacher Tech 6395 V5.0 ESK8 Skateboard BLDC Motor Specification
24V
6395
KV( Rpm / V)
102
112
127
145
170
205
255
Max. Power (W)
1752
1872
2232
2544
2976
3504
4200
Rated Power (W)
1226
1310
1562
1781
2083
2453
2940
Max Torque (N.m)
8.20
7.98
8.39
8.38
8.36
8.16
7.86
Rated Torque (N.m)
4.78
4.66
4.90
4.89
4.88
4.76
4.59
Noload RPM (rpm)
2448
2688
3048
3480
4080
4920
6120
Rated RPM (rpm)
1958
2150
2438
2784
3264
3936
4896
Max. Amps (10 sec) (A)
73
78
93
106
124
146
175
Continious currents (A)
51
55
65
74
87
102
123
36V
6395
KV( Rpm / V)
102
112
127
145
170
205
255
Max. Power (W)
2628
2808
3348
3816
4464
5256
6300
Rated Power (W)
1840
1966
2344
2671
3125
3679
4410
Max Torque (N.m)
8.20
7.98
8.39
8.38
8.36
8.16
7.86
Rated Torque (N.m)
4.78
4.66
4.90
4.89
4.88
4.76
4.59
Noload RPM (rpm)
3672
4032
4572
5220
6120
7380
9180
Rated RPM (rpm)
2938
3226
3658
4176
4896
5904
7344
Max. Amps (10 sec) (A)
73
78
93
106
124
146
175
Continious currents (A)
51
55
65
74
87
102
123
48V
6395
KV( Rpm / V)
102
112
127
145
170
205
255
Max. Power (W)
3504
3744
4464
5088
5952
7008
8400
Rated Power (W)
2453
2621
3125
3562
4166
4906
5880
Max Torque (N.m)
8.20
7.98
8.39
8.38
8.36
8.16
7.86
Rated Torque (N.m)
4.78
4.66
4.90
4.89
4.88
4.76
4.59
Noload RPM (rpm)
4896
5376
6096
6960
8160
9840
12240
Rated RPM (rpm)
3917
4301
4877
5568
6528
7872
9792
Max. Amps (10 sec) (A)
73
78
93
106
124
146
175
Continious currents (A)
51
55
65
74
87
102
123
75V
6395
KV( Rpm / V)
102
112
127
145
170
205
255
Max. Power (W)
5475
5850
6975
7950
9300
10950
13125
Rated Power (W)
3833
4095
4883
5565
6510
7665
9188
Max Torque (N.m)
8.20
7.98
8.39
8.38
8.36
8.16
7.86
Rated Torque (N.m)
4.78
4.66
4.90
4.89
4.88
4.76
4.59
Noload RPM (rpm)
7650
8400
9525
10875
12750
15375
19125
Rated RPM (rpm)
6120
6720
7620
8700
10200
12300
15300
Max. Amps (10 sec) (A)
73
78
93
106
124
146
175
Continious currents (A)
51
55
65
74
87
102
123
