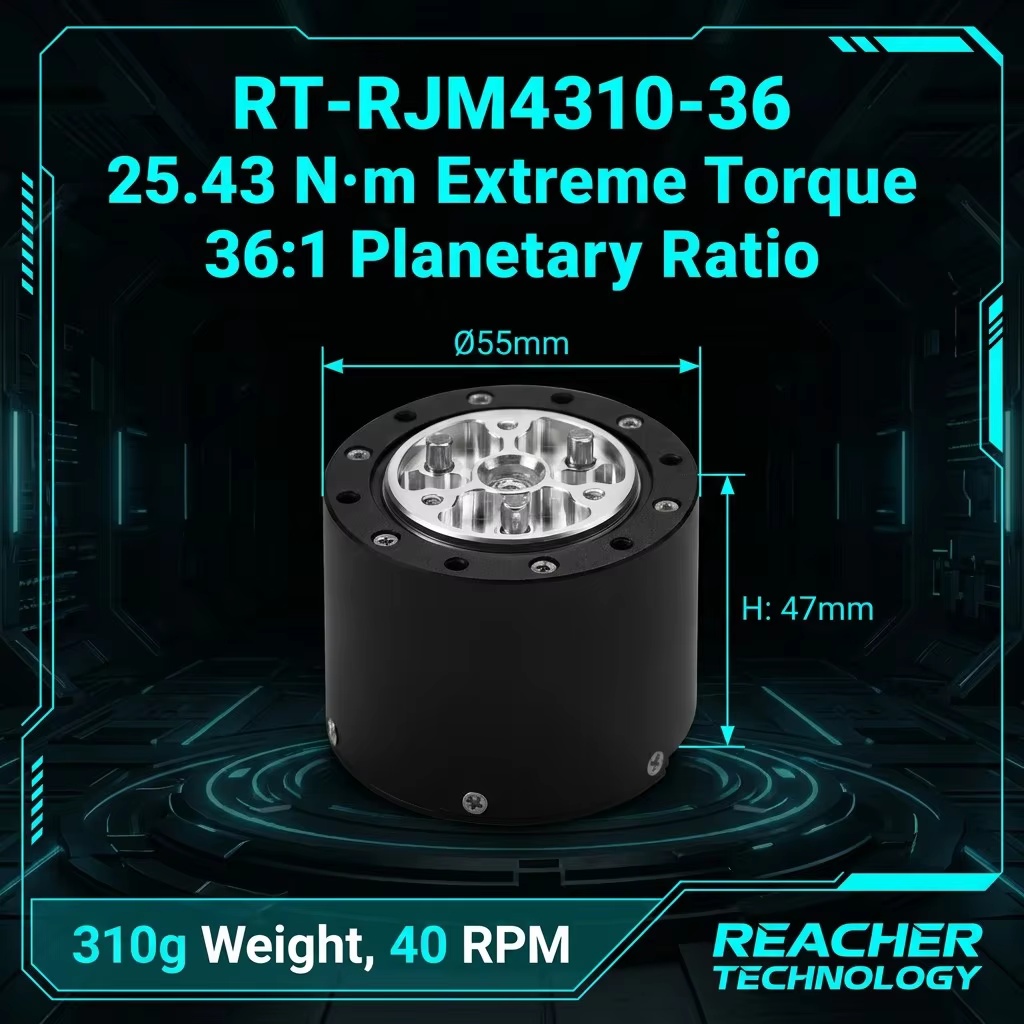

RT-RJM4310-36

Category: Robotic Joint Motor

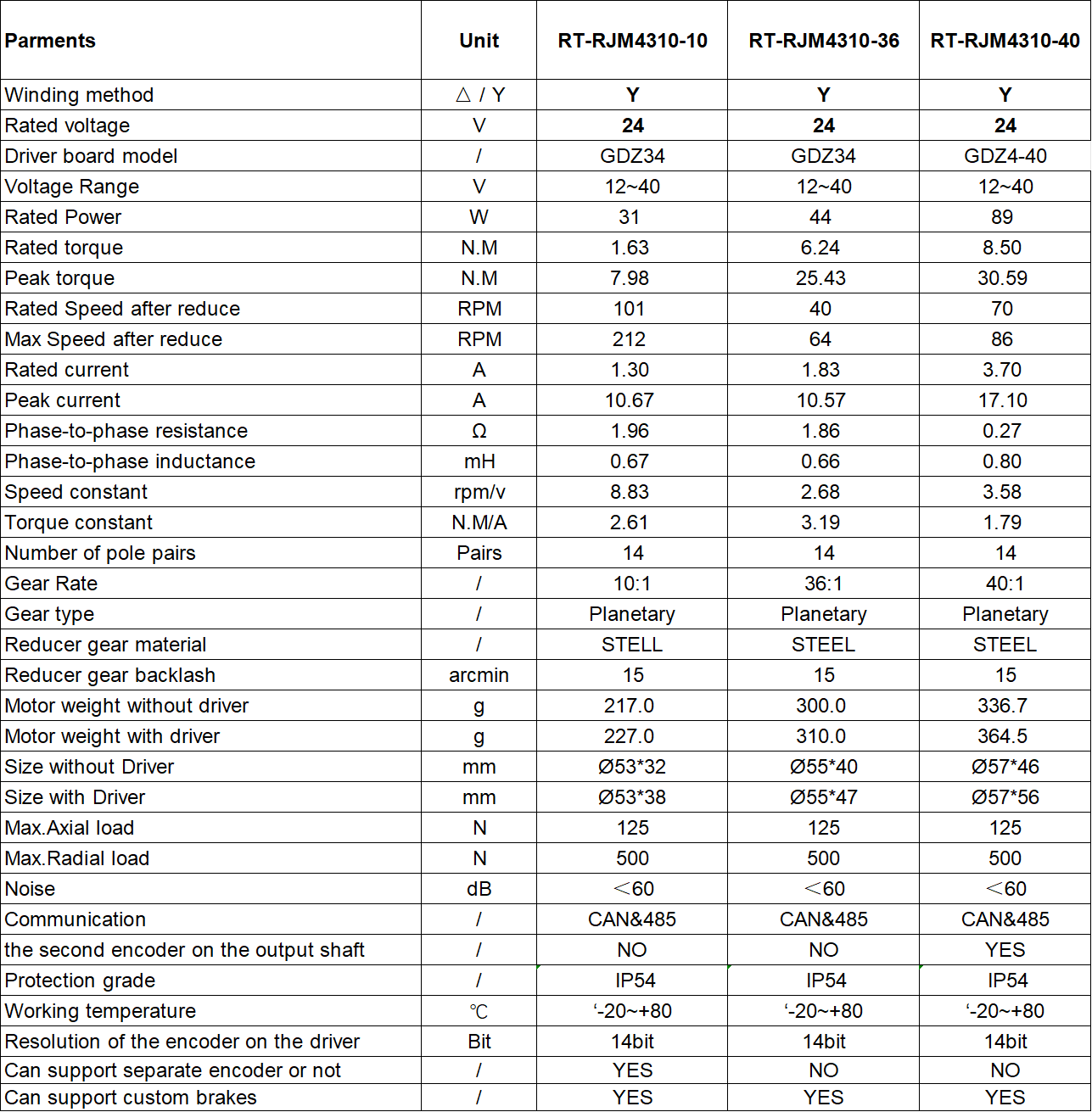

Nominal voltage:24V
Nominal current: 1.83A
Nominal torque: 6.24Nm
Nominal Speed after Reduce:40 rpm
Max Speed after Reduce:64rpm
Stall torque:25.43Nm
Stall current: 10.57A
Number of pole pairs:14 poles

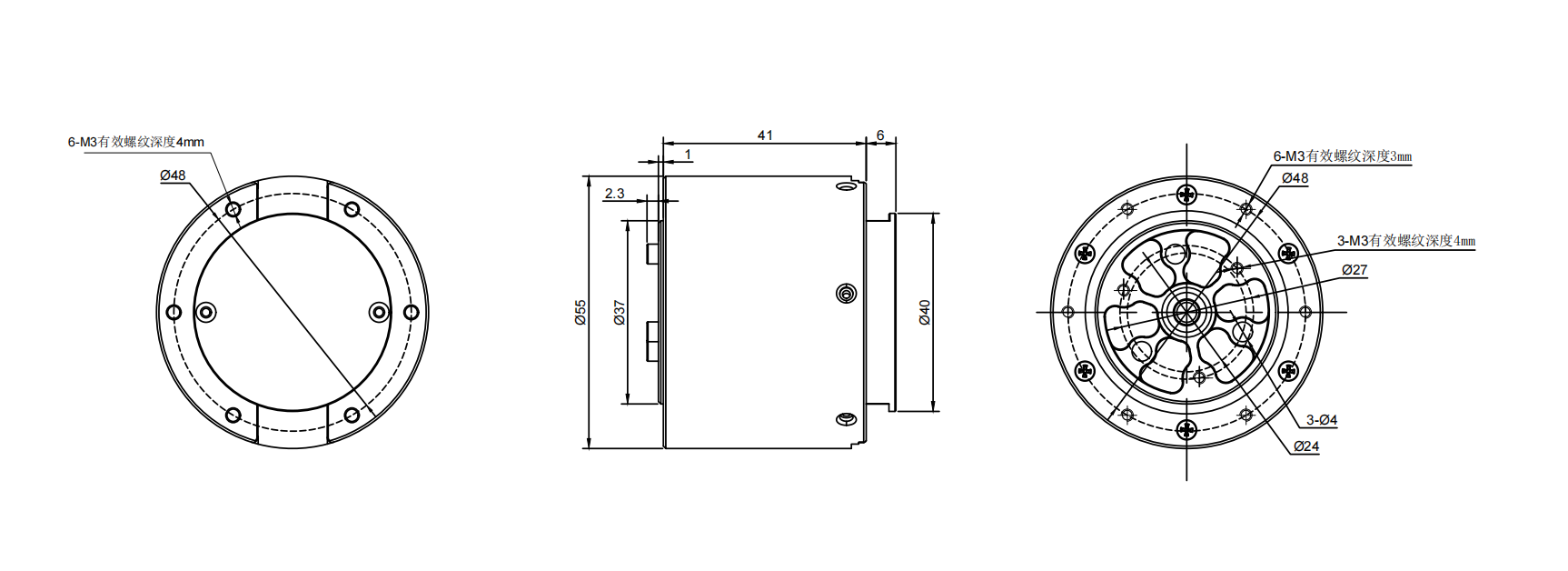

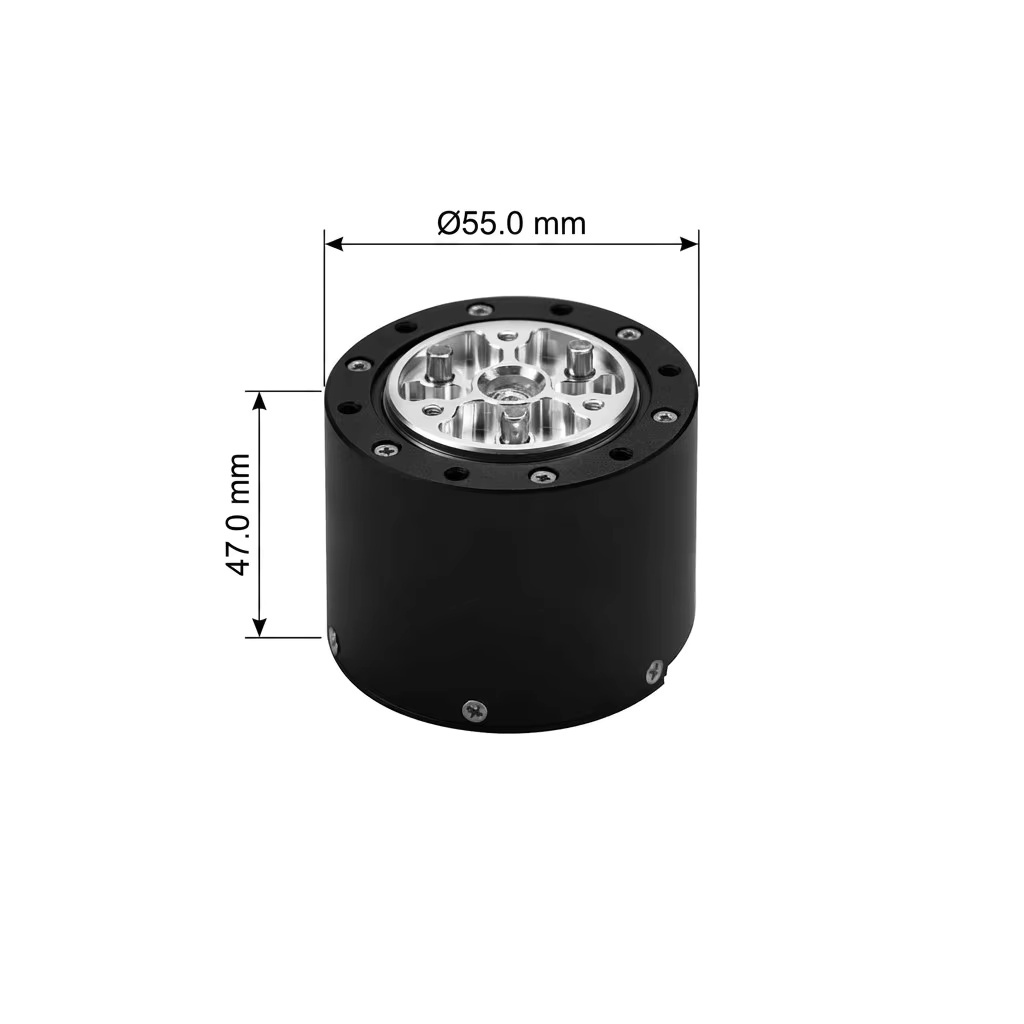

Dimension(mm):Ø55*40

PRODUCT DETAIL

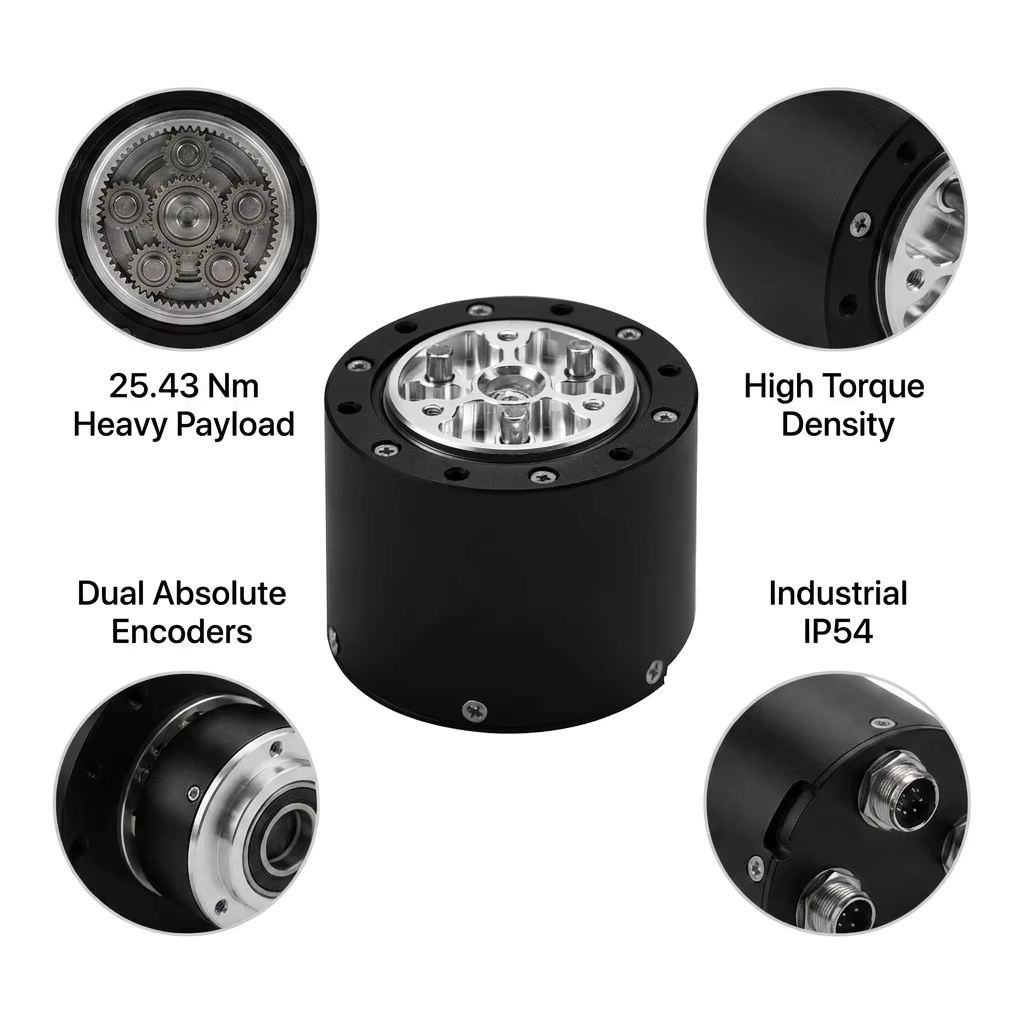

RT-RJM4310-36 24V 40W 25Nm Peak 64RPM Robot Joint Motor High-Torque Arm CAN RS485 IP54 36:1 Planetary FOC
