RT-RJM3510-64

Category: Robotic Joint Motor
Nominal voltage:24V
Nominal current: 3.41A
Nominal torque: 9Nm
Nominal Speed after Reduce:67 rpm
Max Speed after Reduce:74rpm
Stall torque:50Nm
Stall current: 25.28A
Number of pole pairs:7 poles

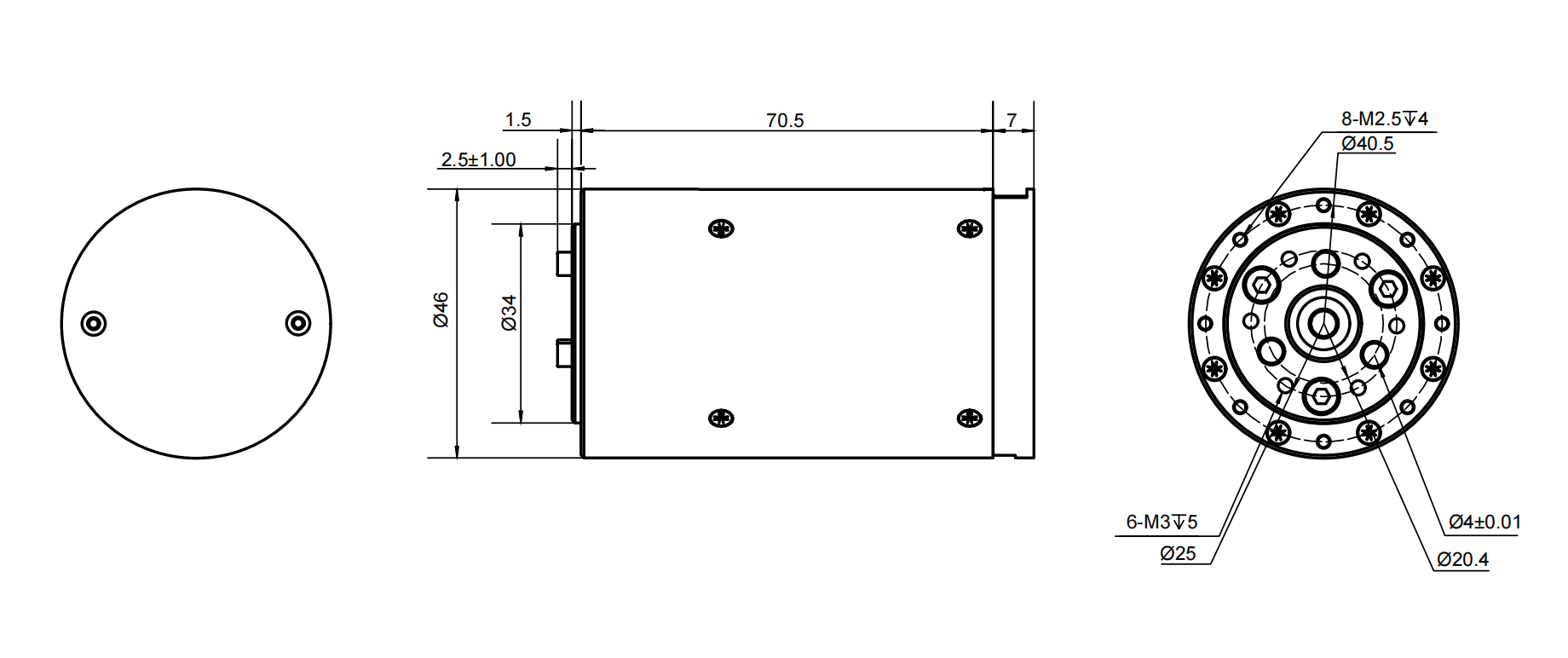

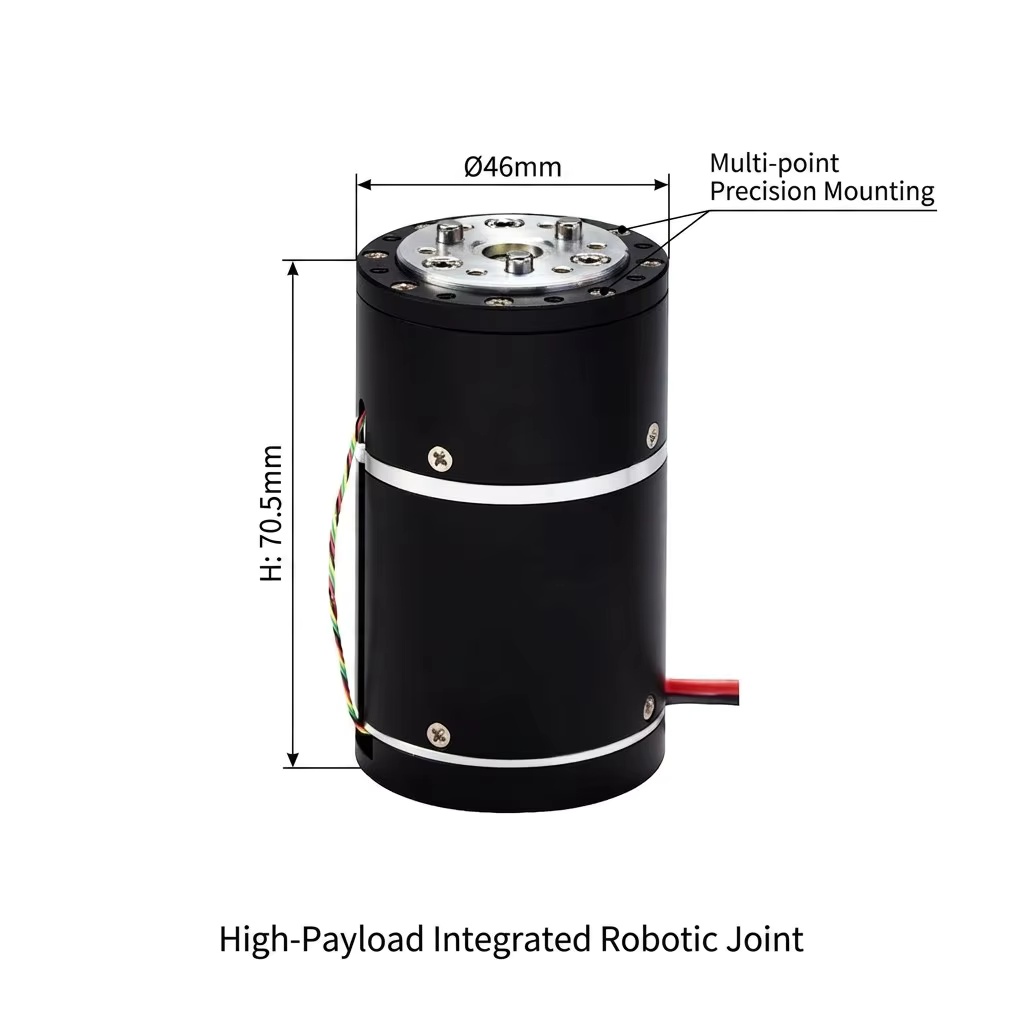

Dimension(mm):Ø46*77.5

PRODUCT DETAIL

RT-RJM3510-64 24V 80W 50Nm Peak 74RPM Robot Joint Motor Knee CAN RS485 IP54 64:1 Planetary FOC

PREVIOUS：RT-RJM3510-8
NEXT：RT-RJM4305-10
