RT-RJM3510-8

Category: Robotic Joint Motor
Nominal voltage:24V
Nominal current: 3.3A
Nominal torque: 1Nm
Nominal Speed after Reduce:534 rpm
Max Speed after Reduce:588rpm
Stall torque:6.28Nm
Stall current: 28.94A
Number of pole pairs:7 poles

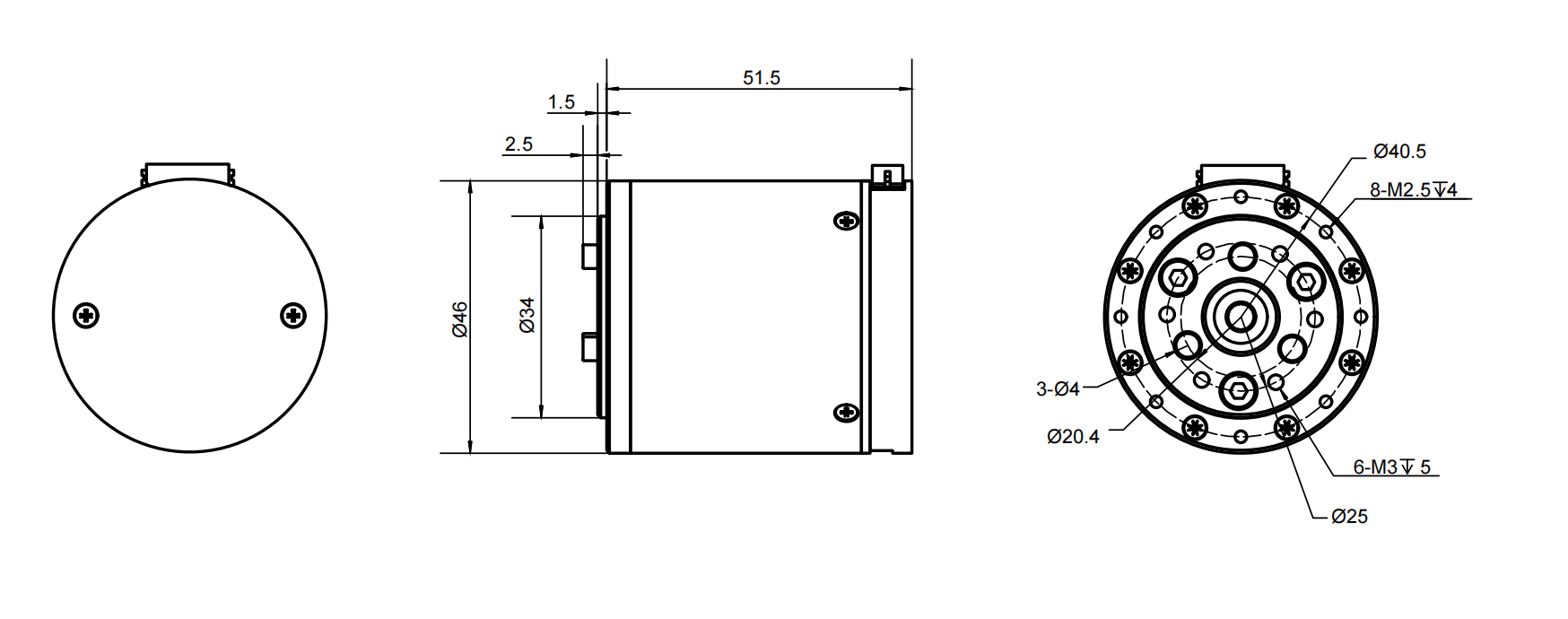

Dimension(mm):Ø46*51.5

PRODUCT DETAIL

RT-RJM3510-8 24V 80W 6Nm Peak 588RPM Robot Joint Motor Exoskeleton Elbow CAN RS485 IP54 8:1 Planetary FOC
