RT-RJM3505-36

Category: Robotic Joint Motor

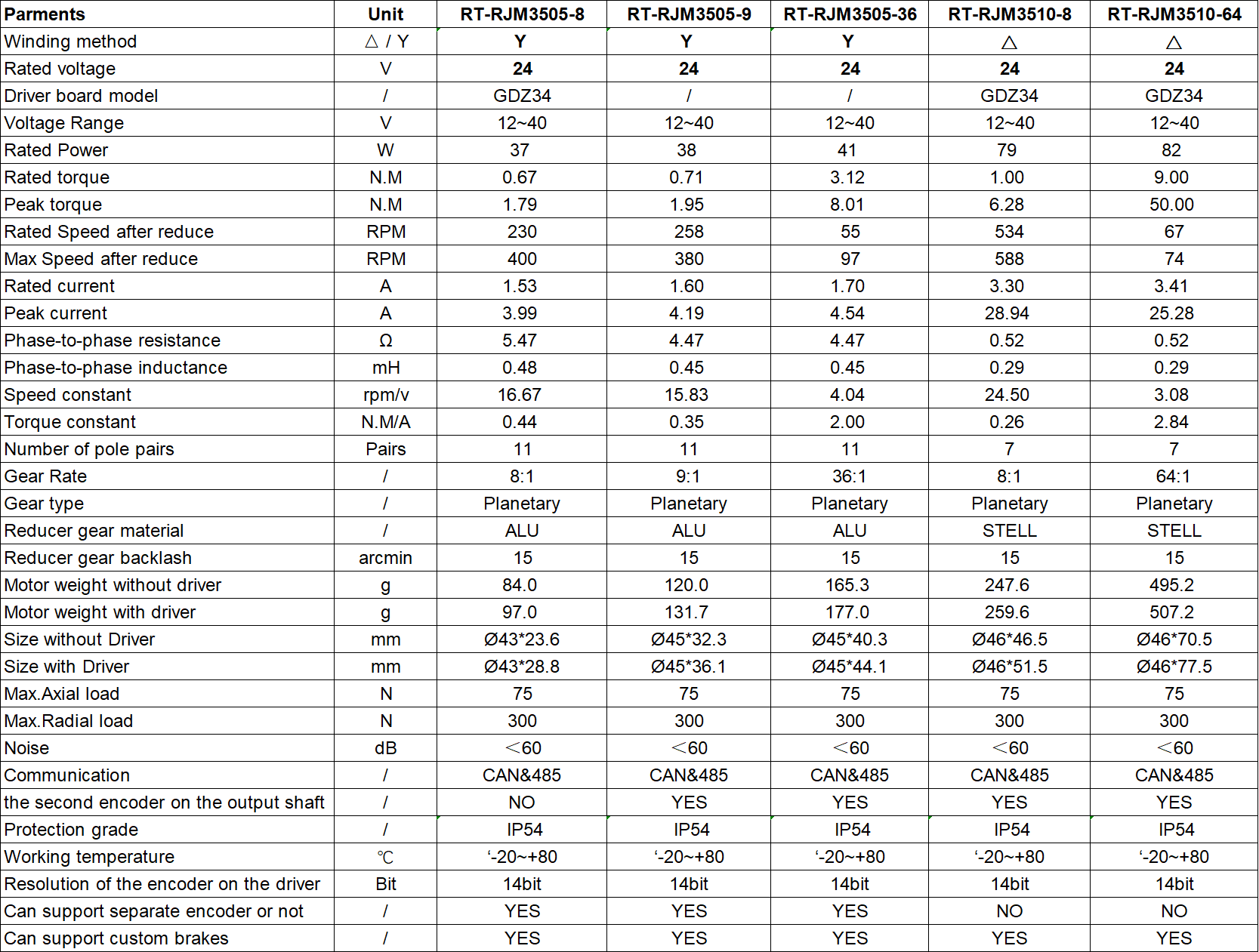

Nominal voltage:24V
Nominal current: 1.7A
Nominal torque: 3.12Nm
Nominal Speed after Reduce:55 rpm
Max Speed after Reduce:97rpm
Stall torque:8.01Nm
Stall current: 4.54A
Number of pole pairs:11 poles

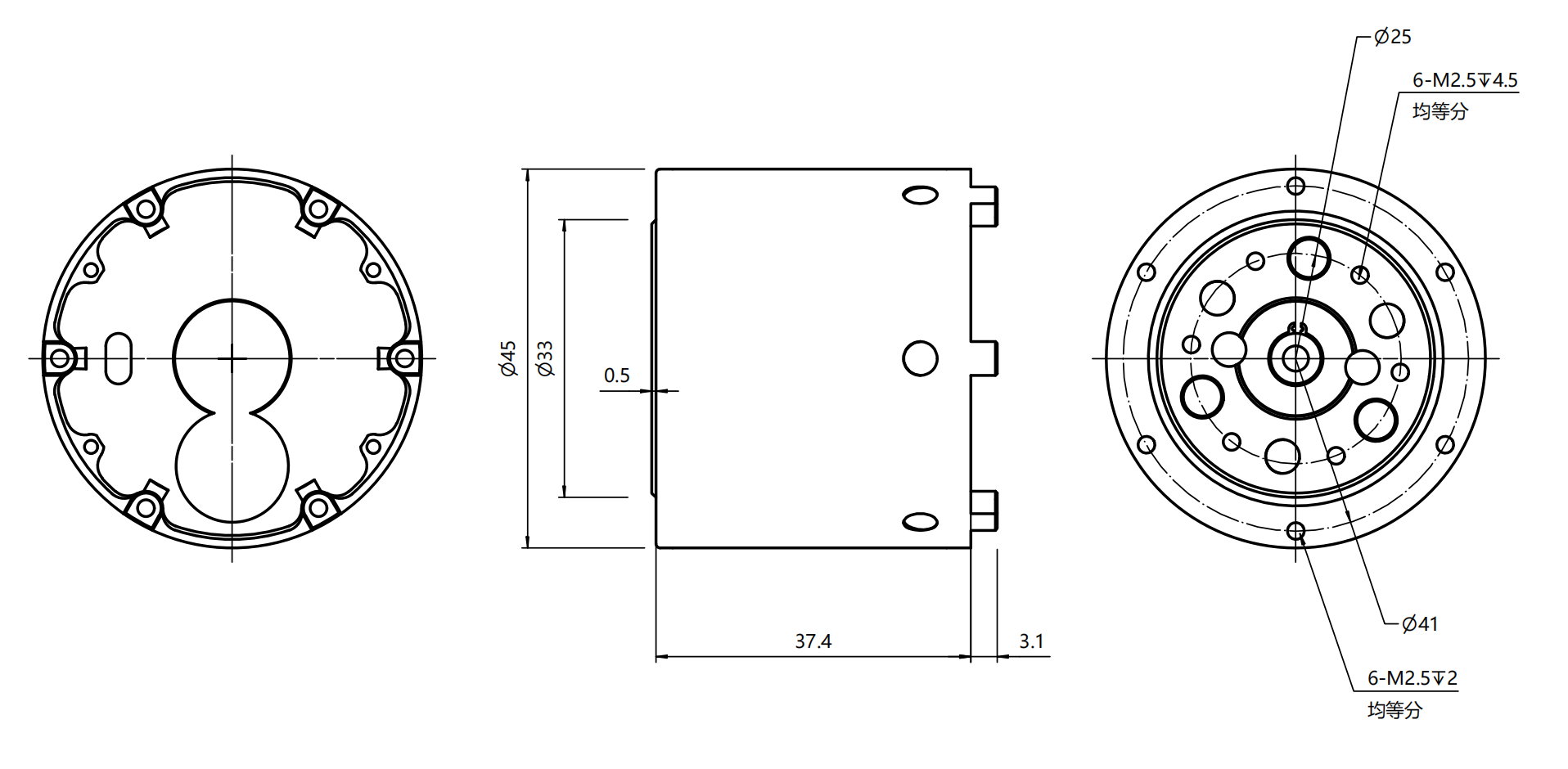

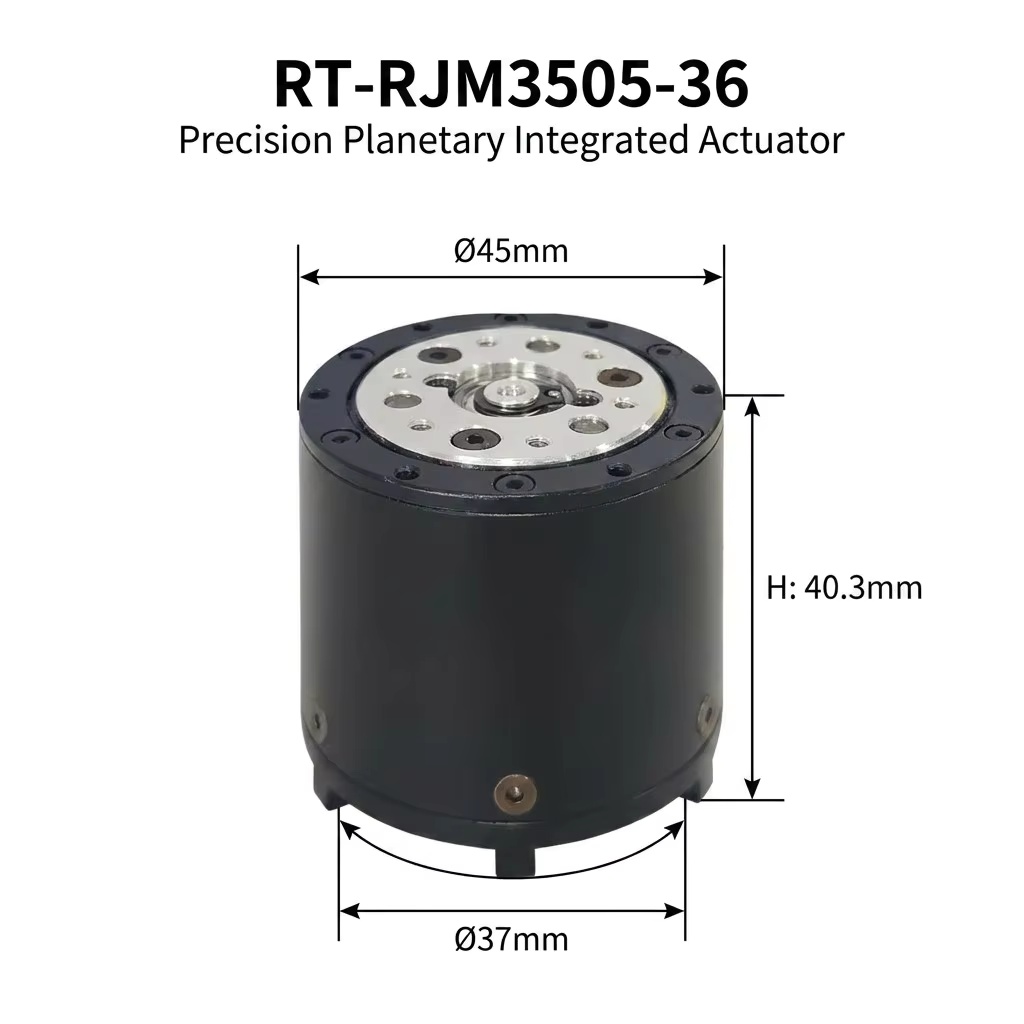

Dimension(mm):Ø45*44.1

PRODUCT DETAIL

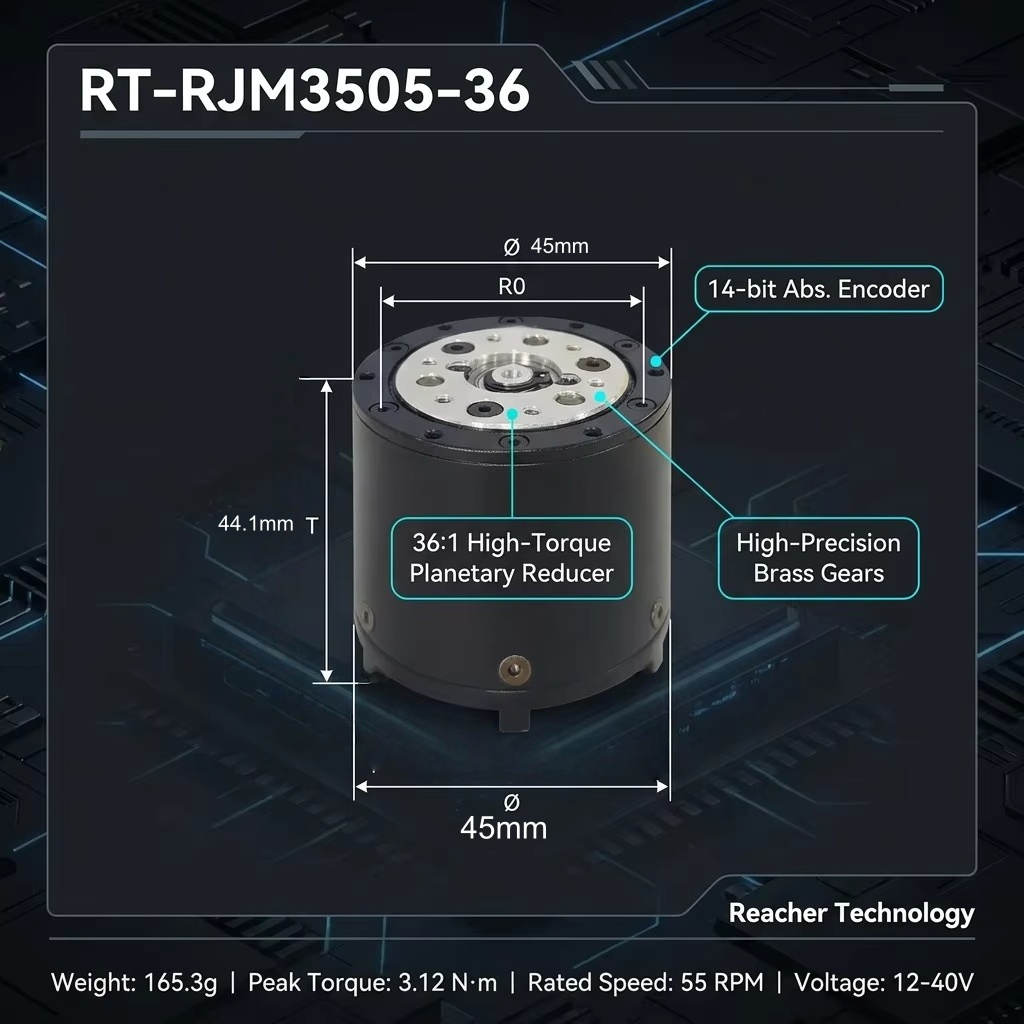

RT-RJM3505-36 24V 40W 8Nm Peak 97RPM Robot Joint Motor Finger Joint CAN RS485 IP54 36:1 Planetary FOC
