RT-RJM4315-8

Category: Robotic Joint Motor
Nominal voltage:24V
Nominal current: 1.86A
Nominal torque: 1.6Nm
Nominal Speed after Reduce:403 rpm
Max Speed after Reduce:405rpm
Stall torque:14.25Nm
Stall current:19.5A
Number of pole pairs:14 poles

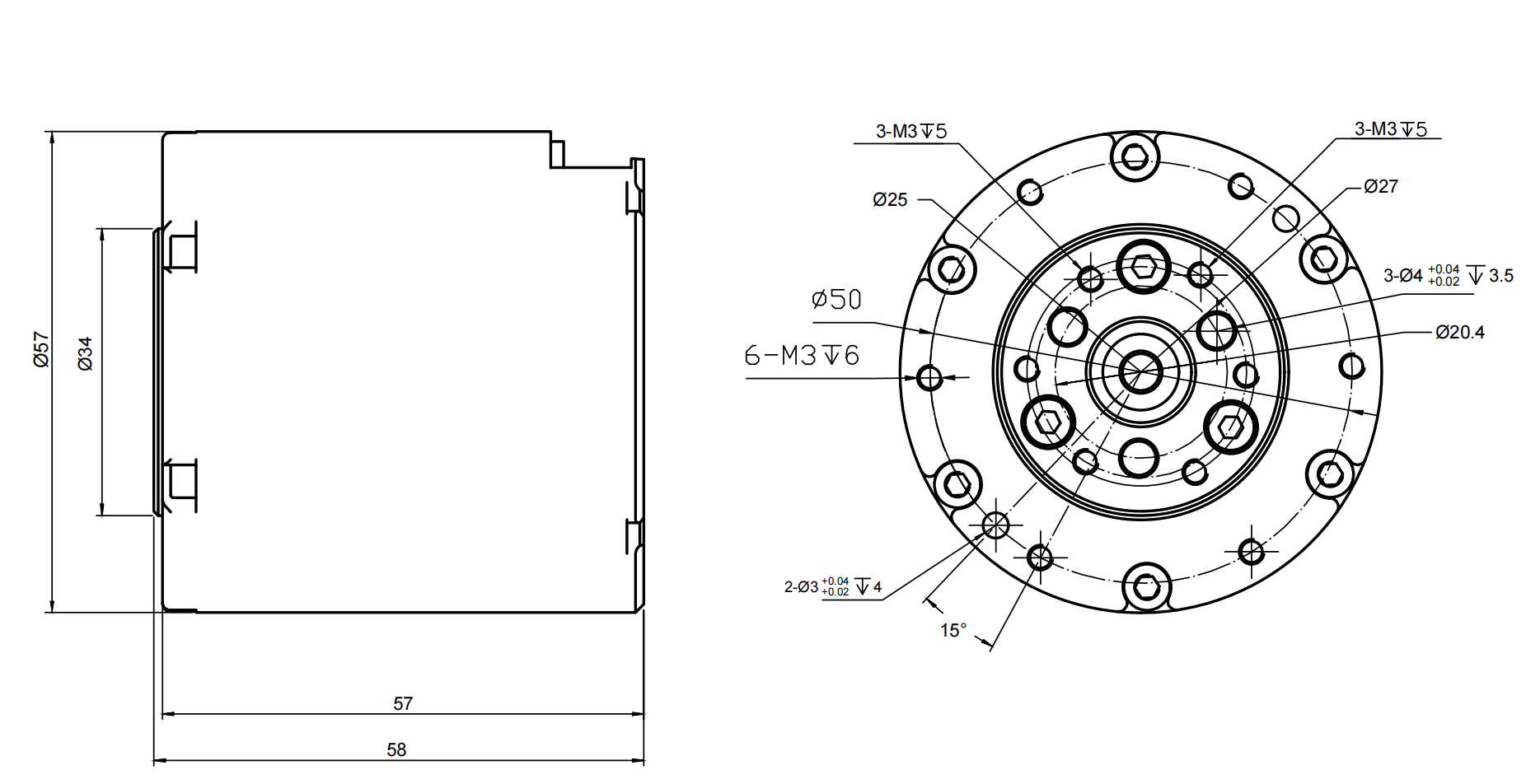

Dimension(mm):Ø57*47

PRODUCT DETAIL

RT-RJM4315-8 24V 45W 14Nm Peak 405RPM Robot Joint Motor High-Speed Cobot Joint CAN RS485 IP54 8:1 Planetary FOC
