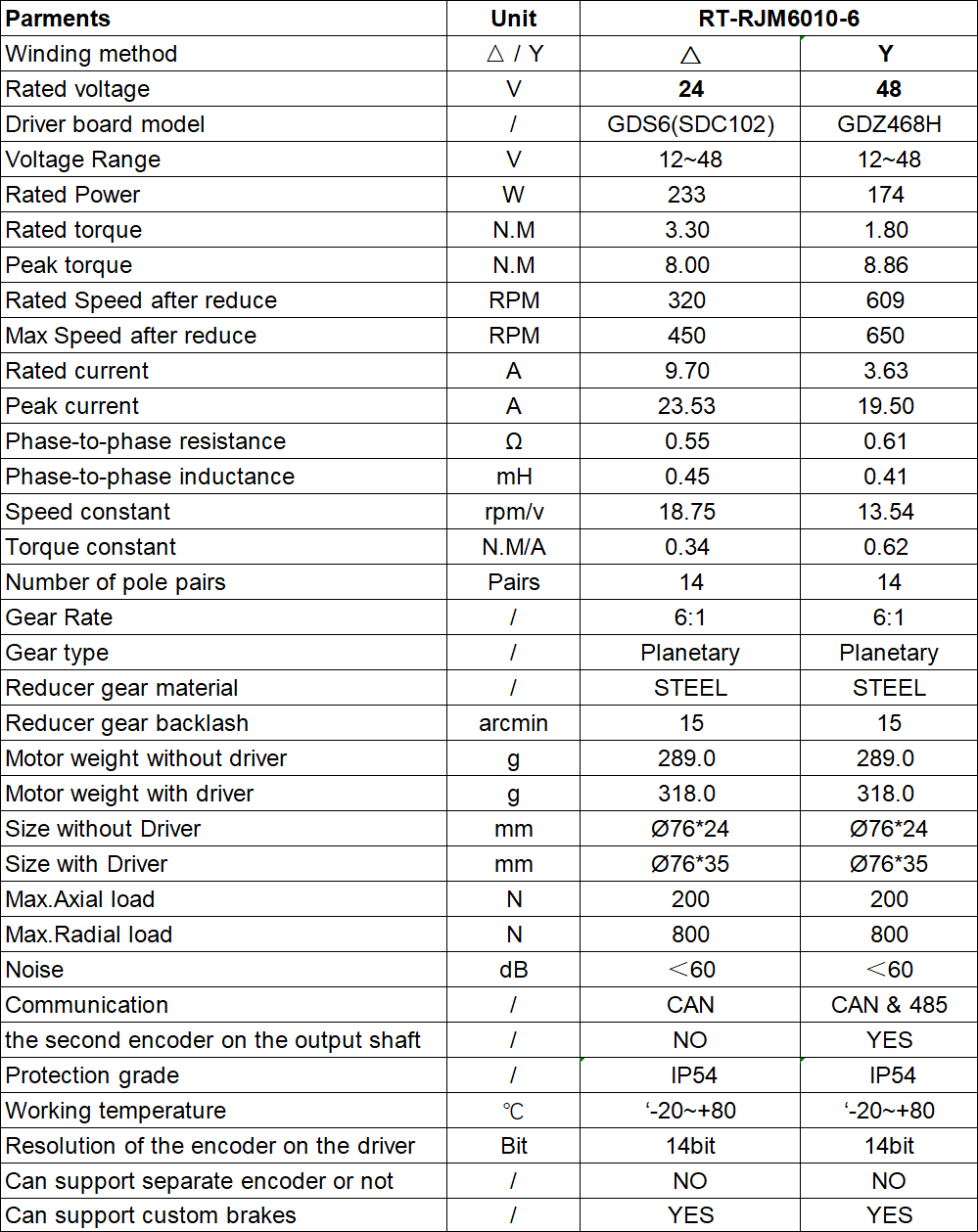

RT-RJM6010-6A

Category: Robotic Joint Motor
Nominal voltage:24V
Nominal current: 3.3A
Nominal torque: 9.7Nm
Nominal Speed after Reduce:320 rpm
Max Speed after Reduce:450rpm
Stall torque:23.53Nm
Stall current:8A
Number of pole pairs:14 poles

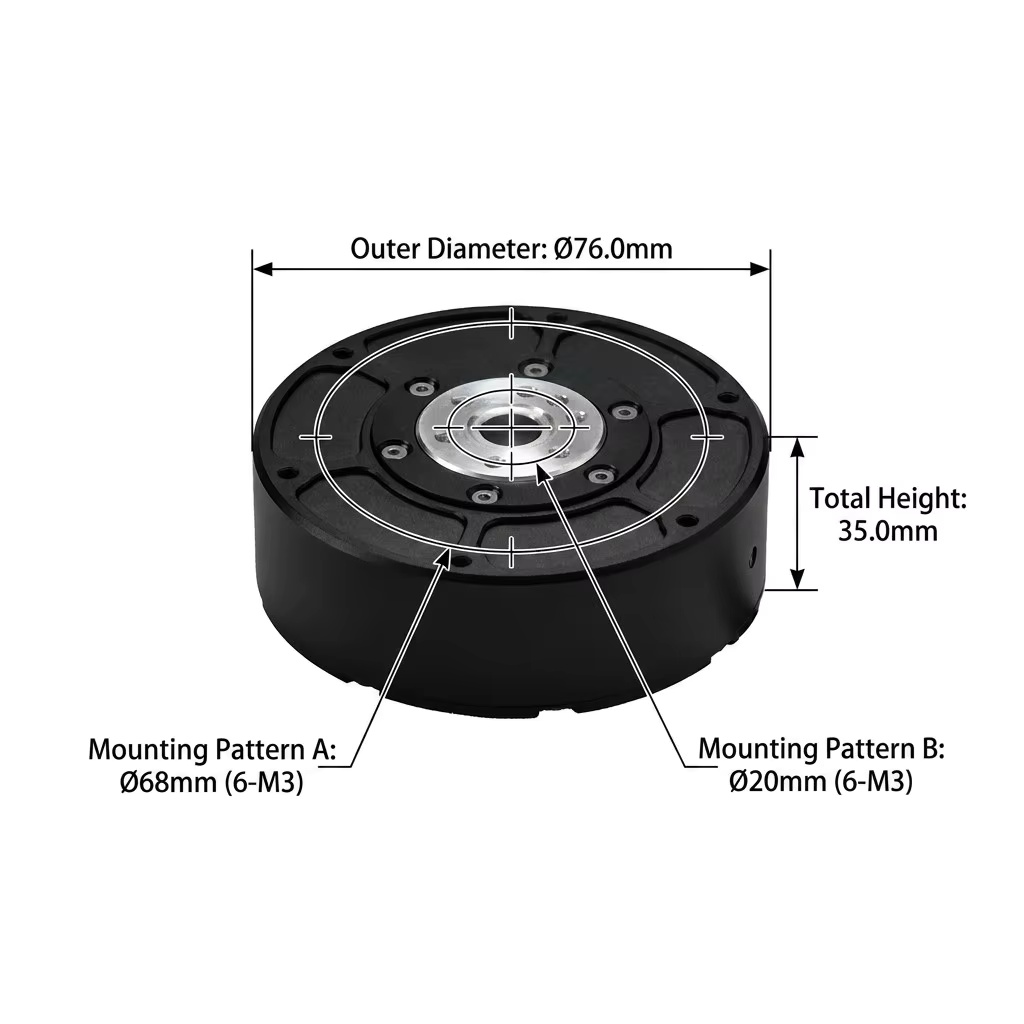

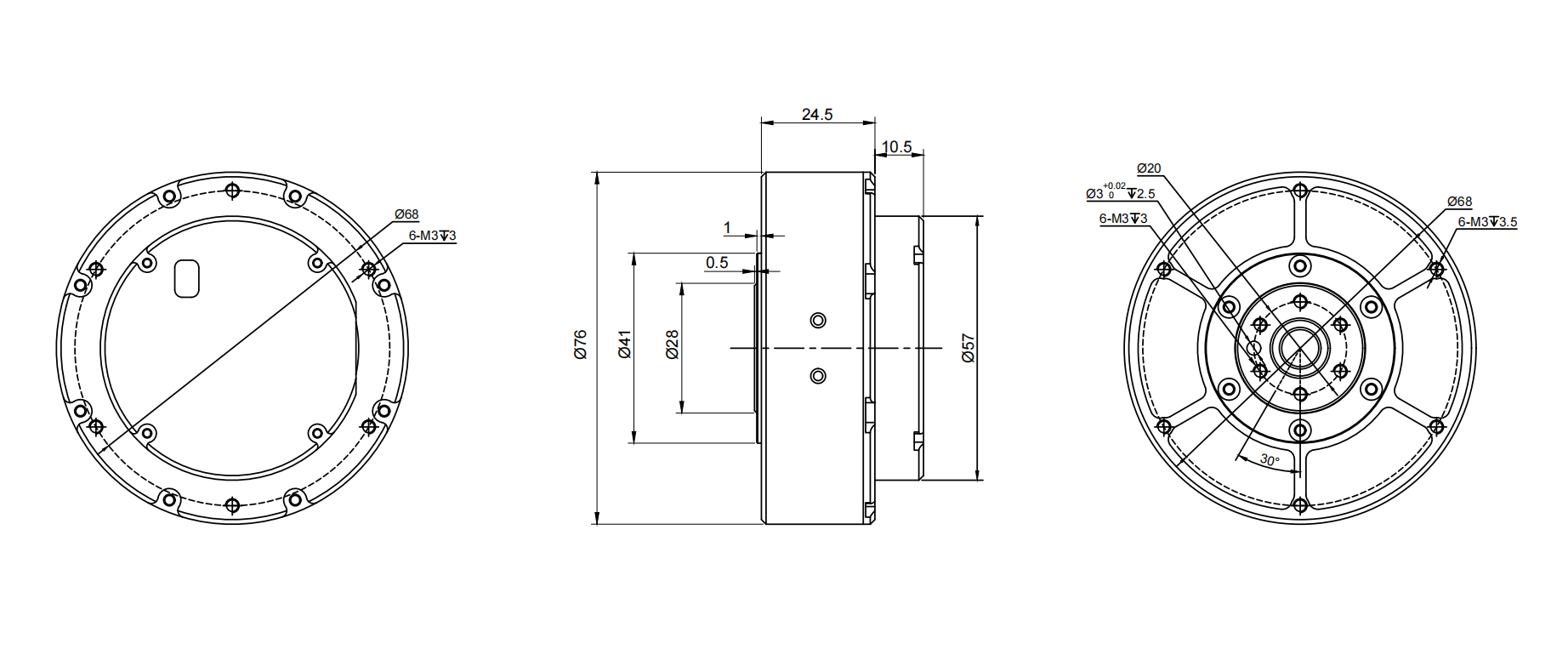

Dimension(mm):Ø76*35

PRODUCT DETAIL

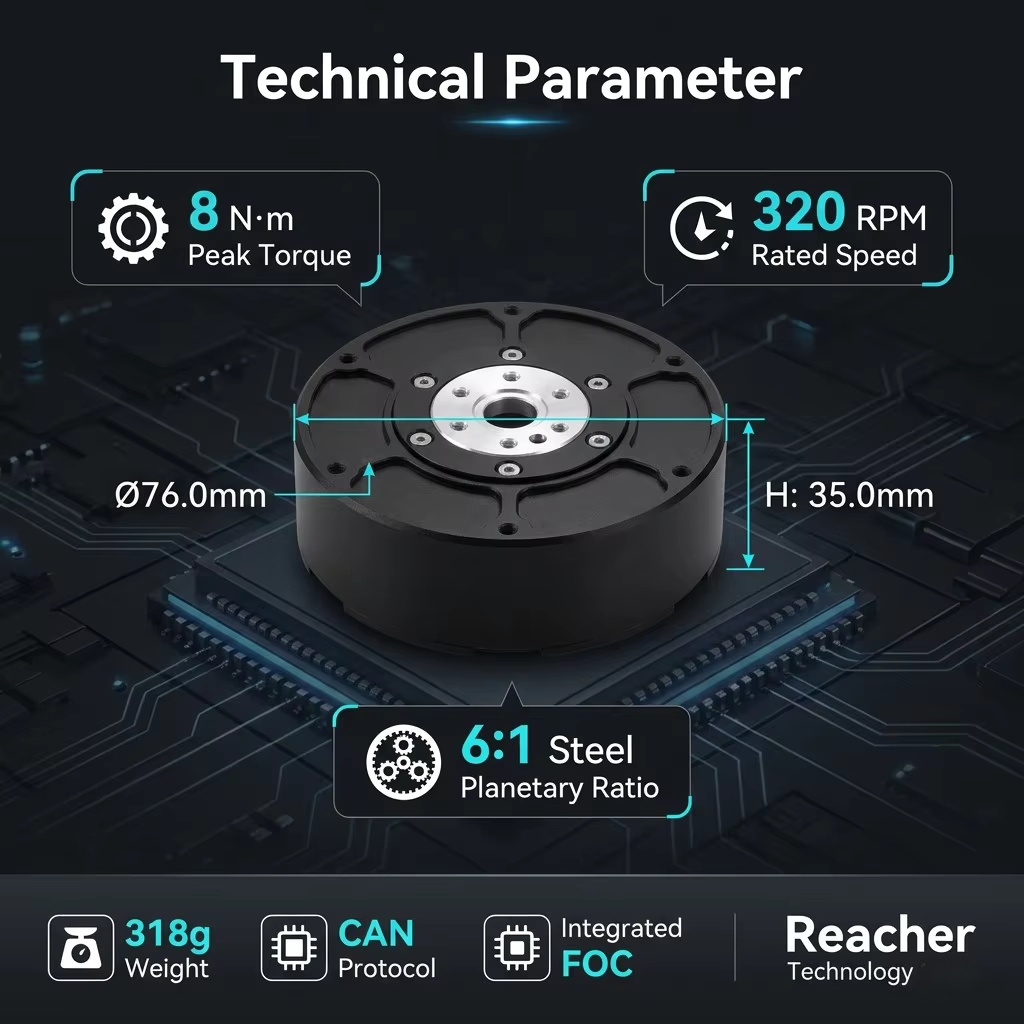

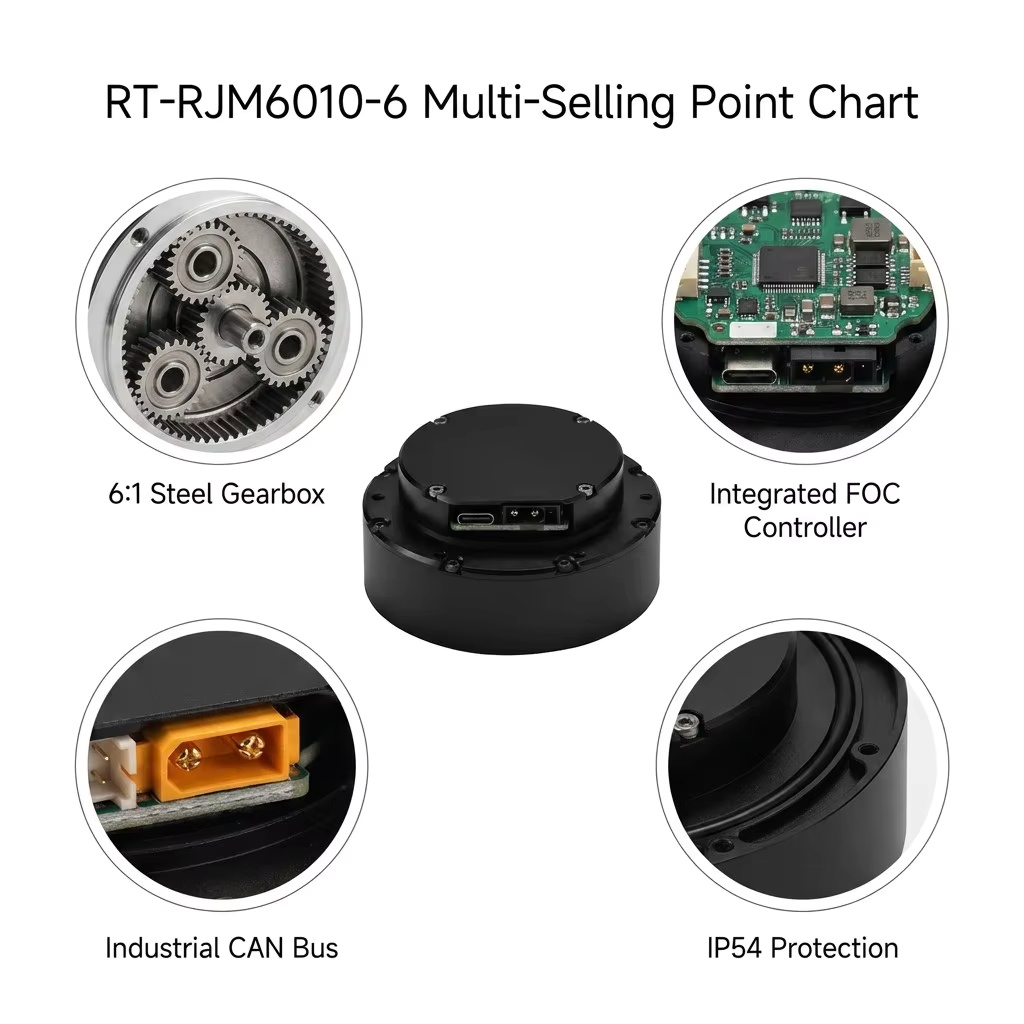

RT-RJM6010-6A 24V 230W 8Nm Peak 450RPM Robot Joint Motor Cobot Elbow CAN IP54 6:1 Planetary FOC
