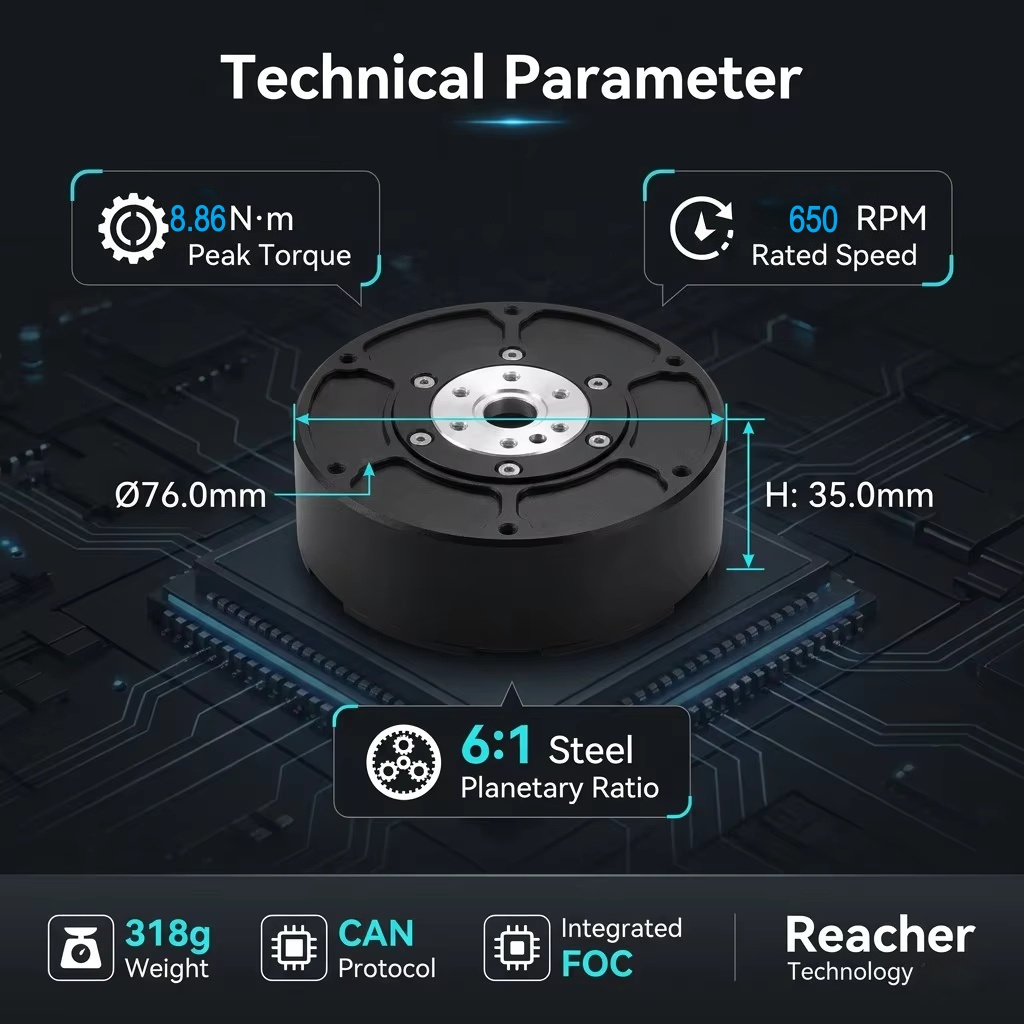

RT-RJM6010-6B

Category: Robotic Joint Motor
Nominal voltage:48V
Nominal current: 3.63A
Nominal torque: 1.8Nm
Nominal Speed after Reduce:609 rpm
Max Speed after Reduce:650rpm
Stall torque:8.86Nm
Stall current:19.5A
Number of pole pairs:14 poles

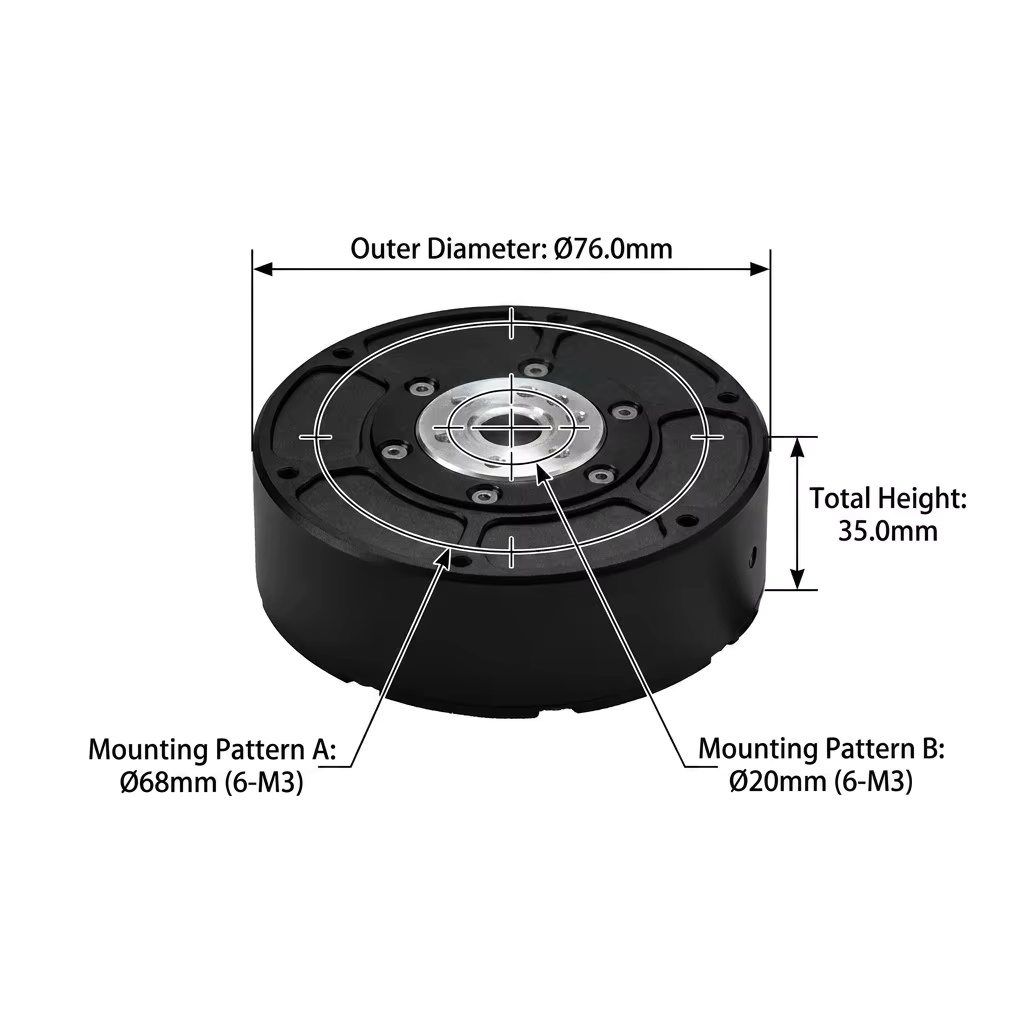

Dimension(mm):Ø76*35

PRODUCT DETAIL

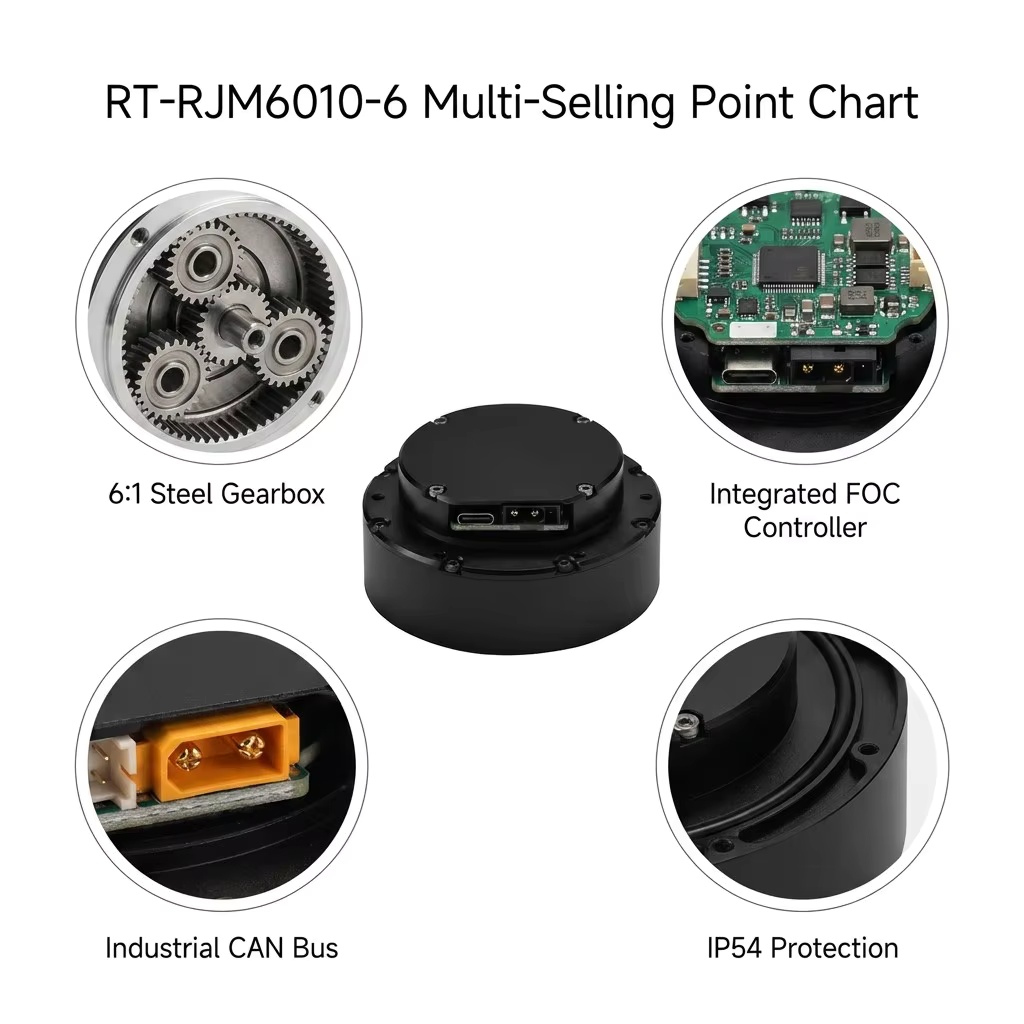

RT-RJM6010-6B 48V 170W 9Nm Peak 650RPM Robot Joint Motor High-Speed Cobot CAN RS485 IP54 6:1 Planetary FOC
